PC-H

  • Performance
    Performance

    Max. Speed 35 km/h

  • Range
    Range

    80 km

  • "0" Emission
    "0" Emission

    100% Electric

Test Drive Price Request

THE ROAD TO FREEDOM

The wheelchair is the perfect companion with its integrated structure. Every journey means freedom and independence with PC-H.

PC-H Technical Specifications

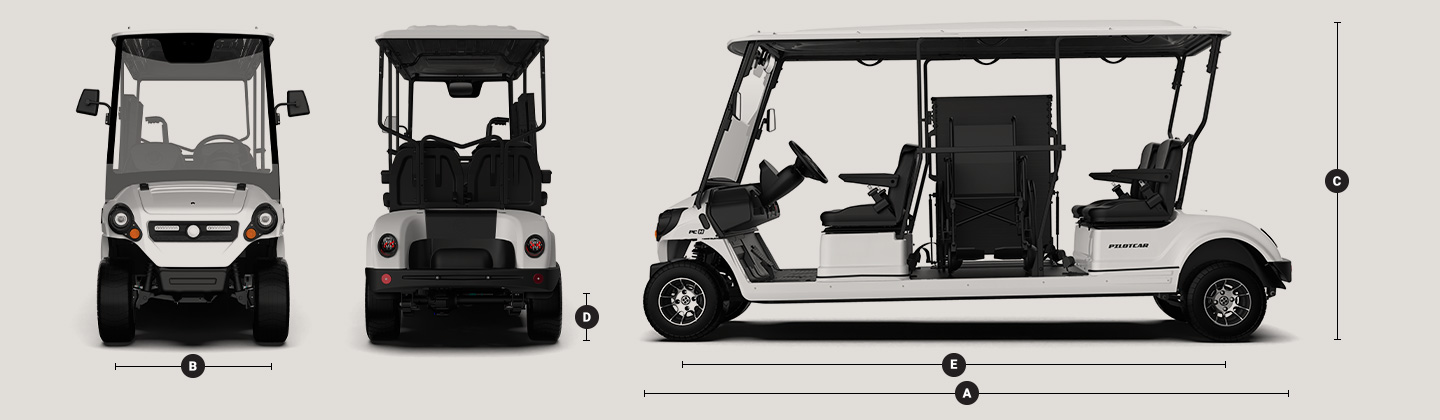

Dimensions

PC-H

4050 mm
​​​​​​​​​​​​​​(159,4 In)

1285 mm
(50,5 In)

  • 2000 mm
    (78,7 In)
    (w/ Suntop)
  • 1220 mm
    (48 In)
    (w/o Suntop)

143 mm
​​​​​​​​​​​​​​​​​​​​​​​​​​​​(5,6 In)

3320 mm
​​​​​​​​​​​​​​​​​​​​​(130,7 In)

Power | Electricity-48 V (AC)

    • 6 kW (8.20 hp) Rated / 12.46 kW (16.95 hp) Peak
    • 10 kW (13.60 hp) Rated / 22.43 kW (30.50 hp) Peak
    • Lead-Acid Battery Package 8x6V (11.52 kWh)
    • Lithium Battery Package (10.8 kWh)

  • Lead-Acid Battery Package

    • Onboard Charge Unit
      110-220 VAC@6A 1A/48V

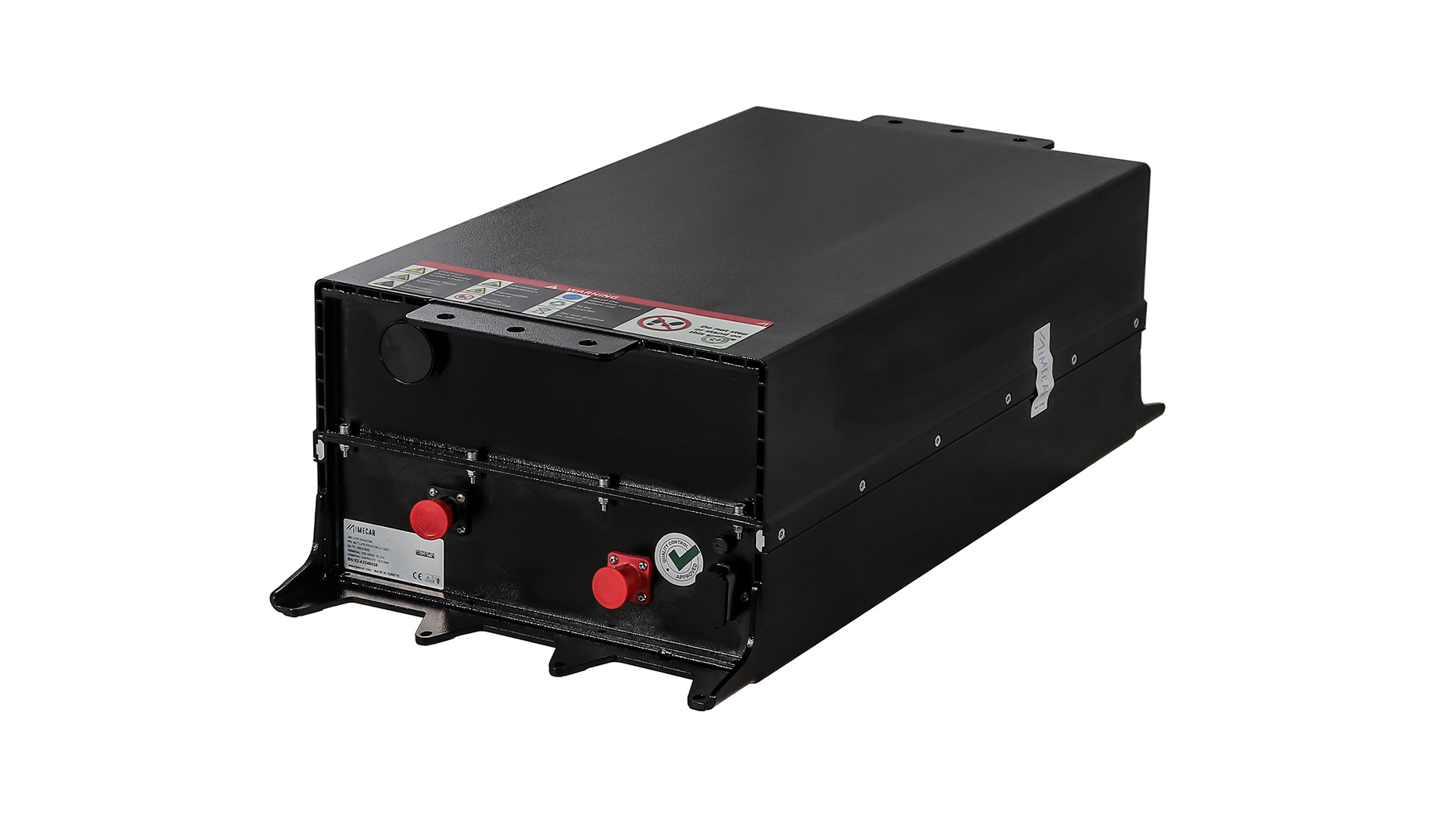

    Lithium Battery Package

    • 3.3 kW Onboard Charge Unit
      85-265 VAC@16A 40A/48V

Performance

  • 24 km/h - 35 km/h*

  • 8 km/h
    • Lead-Acid Battery Package: 80 km**
    • Lithium Battery Package: 80 km**

  • 25%

  • Lead-Acid Battery Package
    80% - 7 hrs
    100% - 9 hrs
    Lithium Battery Package
    80% - 4 hrs
    100% - 6 hrs

  • 5.6 m

Steering Wheel & Suspension System

  • Self-compensating, double reduction, no lubrication required
    helical rack and pinion
    Option: Electric Power Steering (EPS)

  • Fully independent MacPherson style strut suspension

  • Leaf springs w/dual hydraulic shocks

Body & Chassis

  • Naturally colored Thermoplastic ABS
    White, Midnight Blue, Black, Special Color

  • Automotive style steel frame with high corrosion resistance
    Sanding/E-coating/Static Wet Paint/PVC Coating

Brake System

  • 4-wheel hydraulic drum brake system

  • Electromagnetic parking brake

General

    • Lead-Acid Battery Package: 737 kg*
    • Lithium Battery Package: 602 kg*
    • 1+3 Passenger
    • 1+5 Passenger
    • Wheelchair

  • 700 kg

  • 1500 kg

  • 20.5 x 8-10 (6 ply)

Warranty

  • 2 years full warranty (Except wearable items)
    5 years limited warranty (Motor and motor control unit)
    70% performance at min. 2500 cycles for lithium battery package

OPTIONS

All you need to do is examine the vehicle options and accessories in detail.

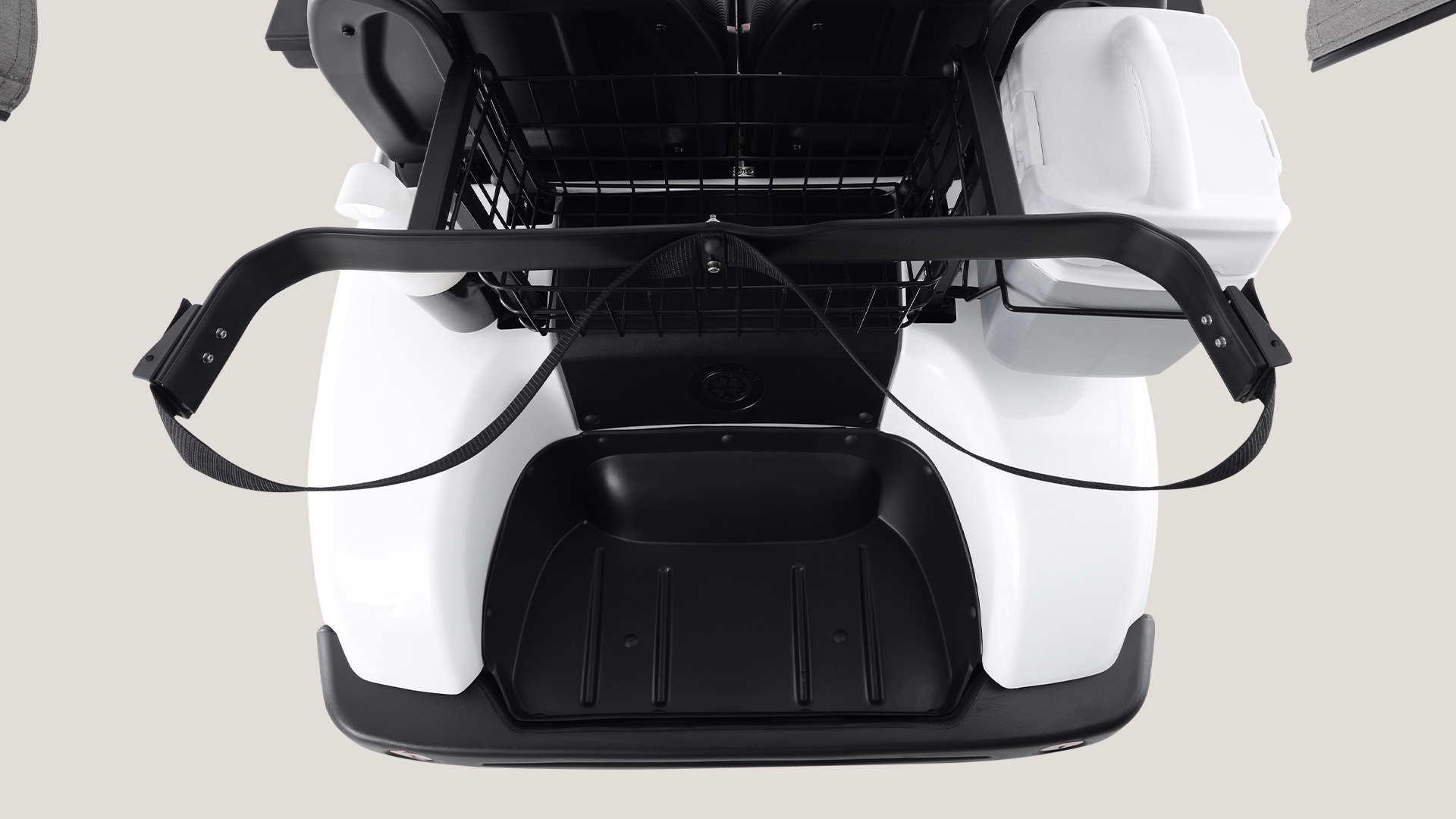

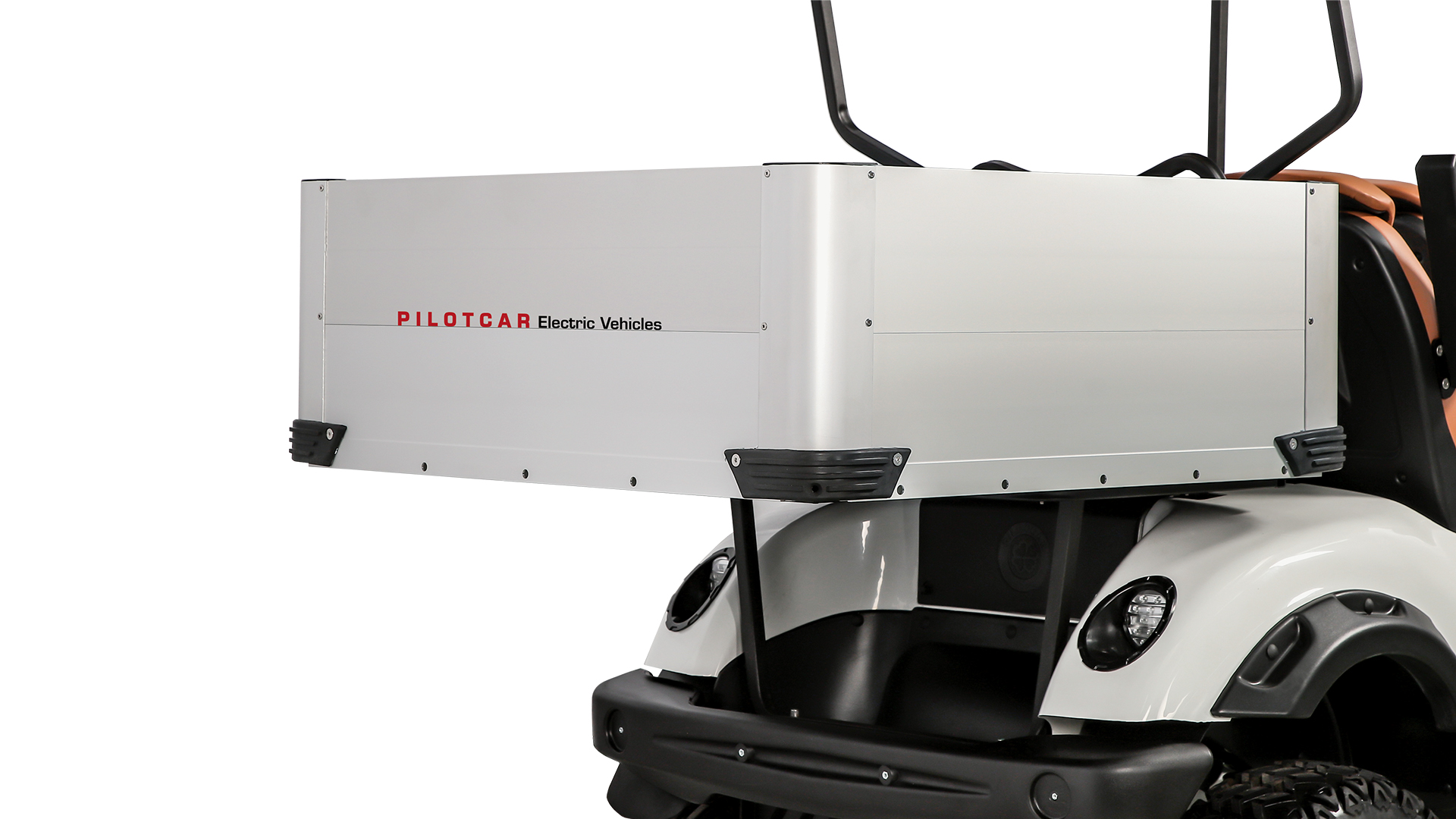

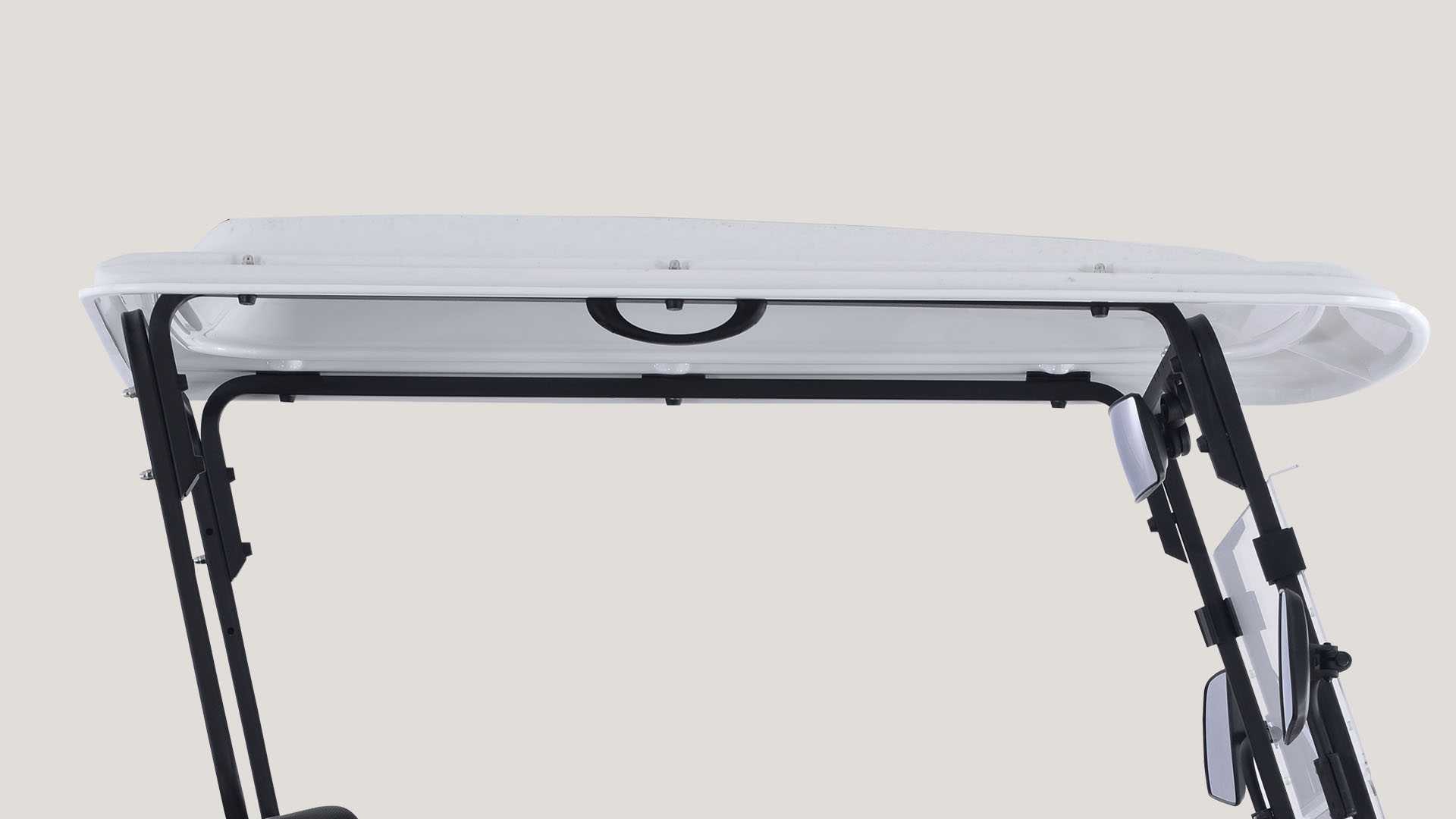

Body

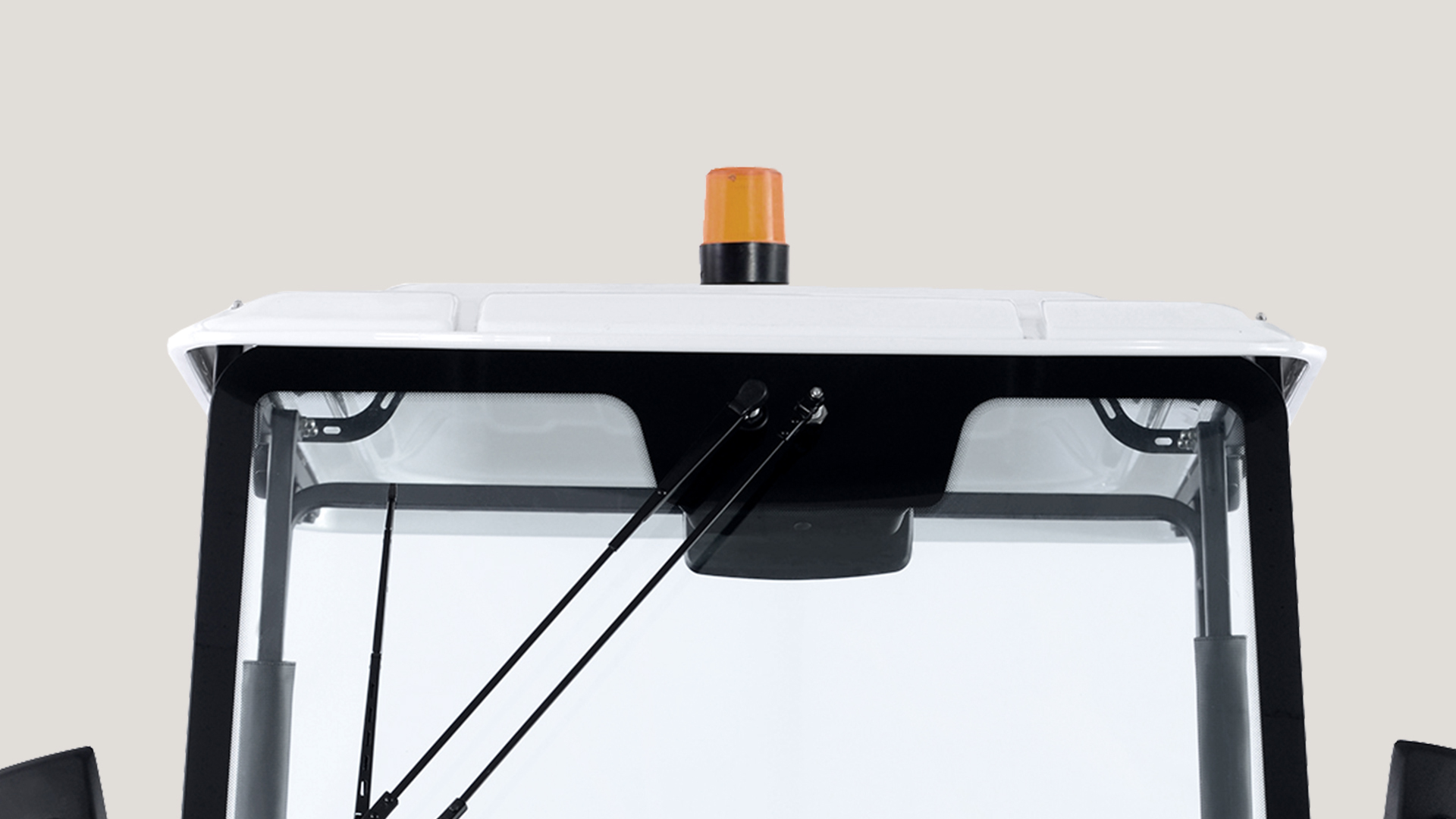

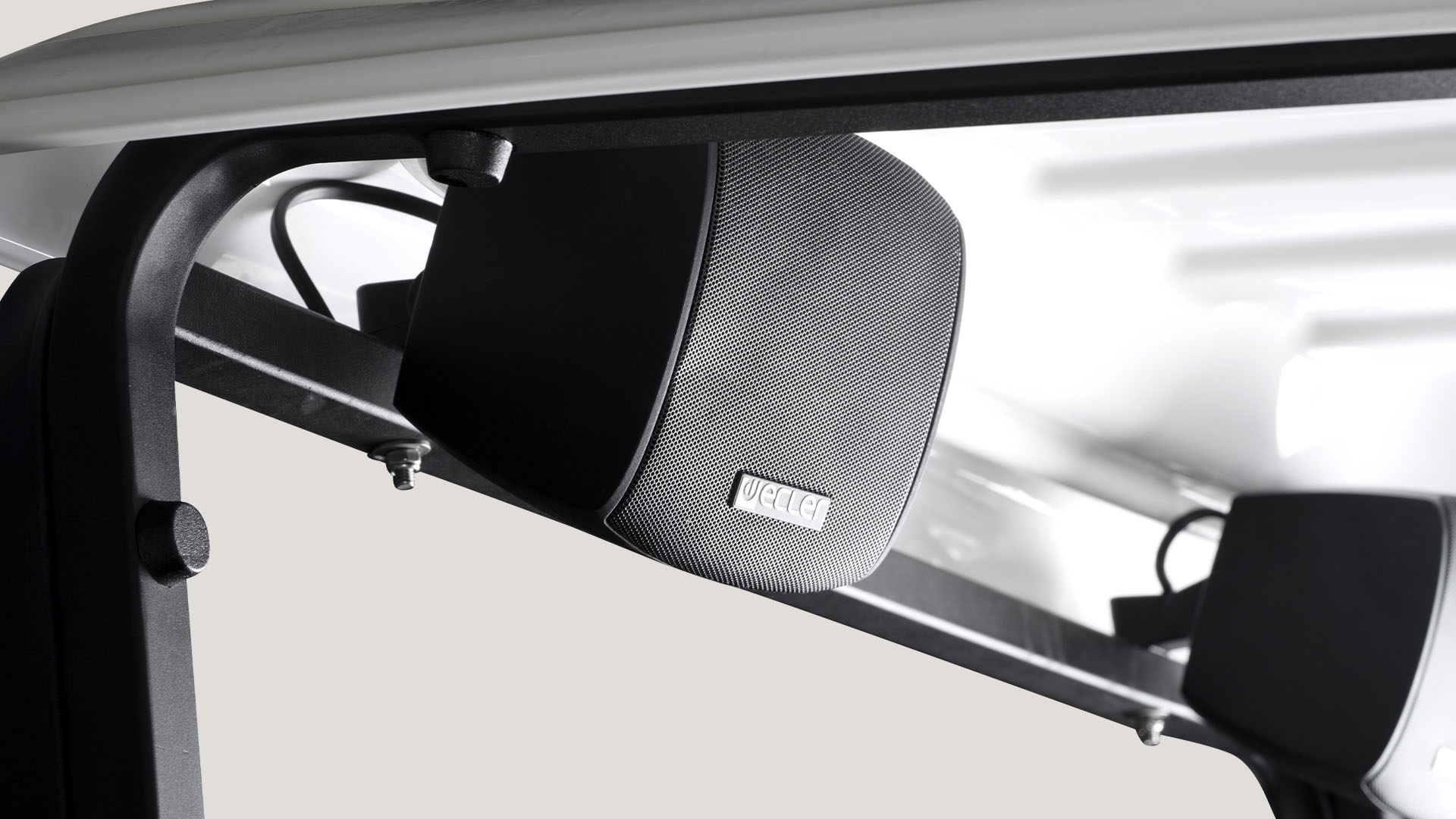

Technology & Safety

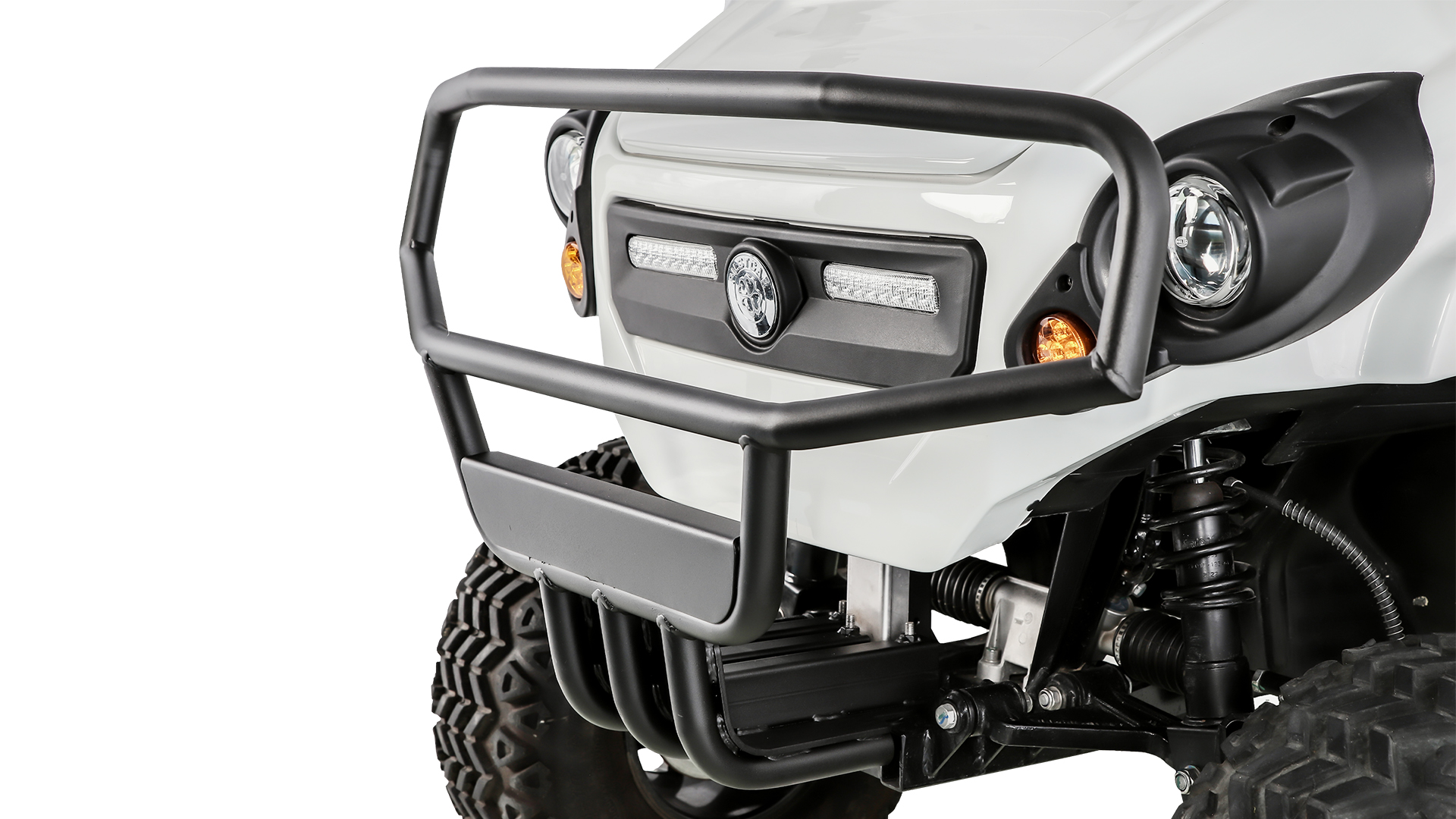

Off-Road Equipment
Golf Equipment

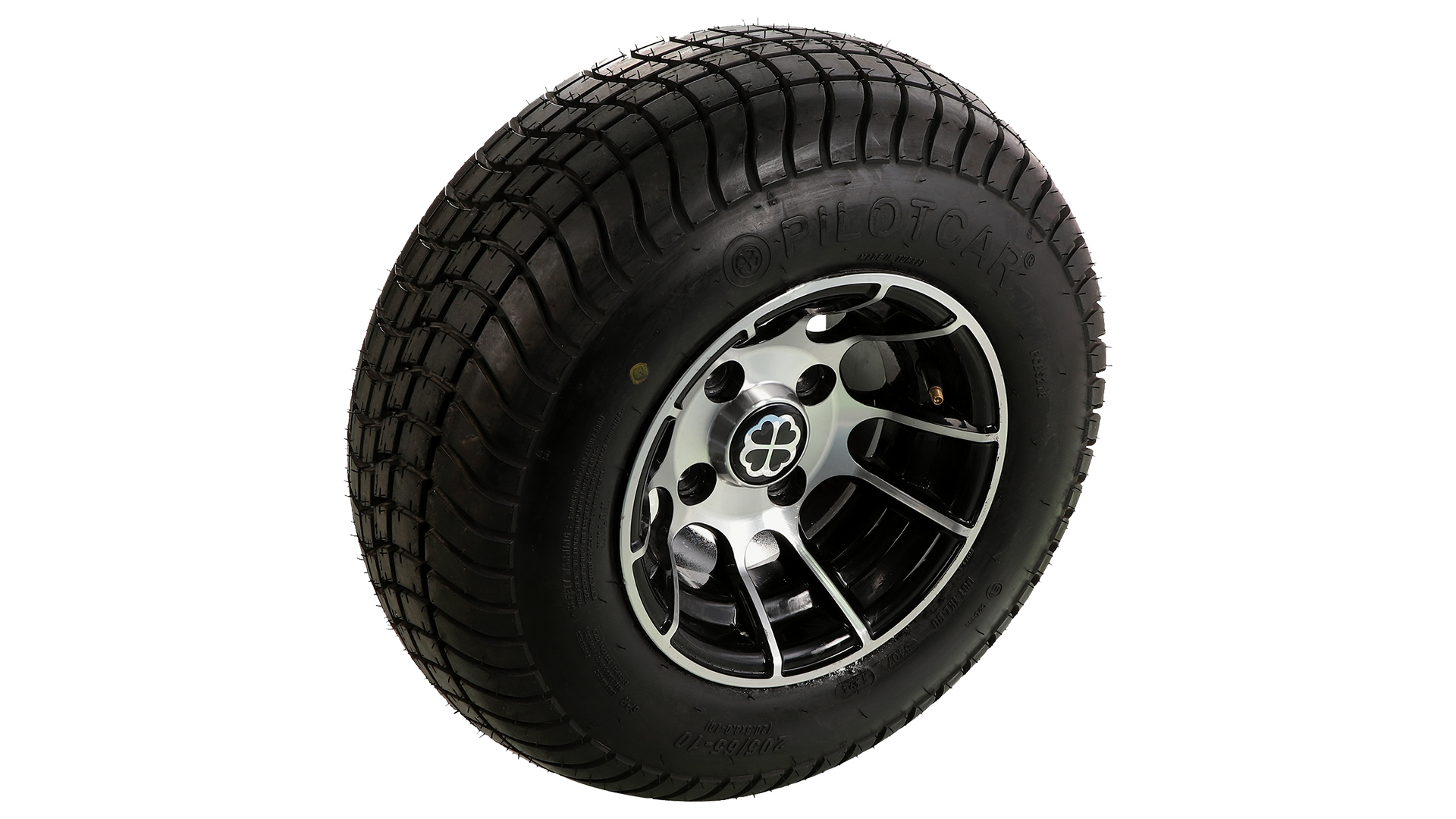

Tyres & Wheels

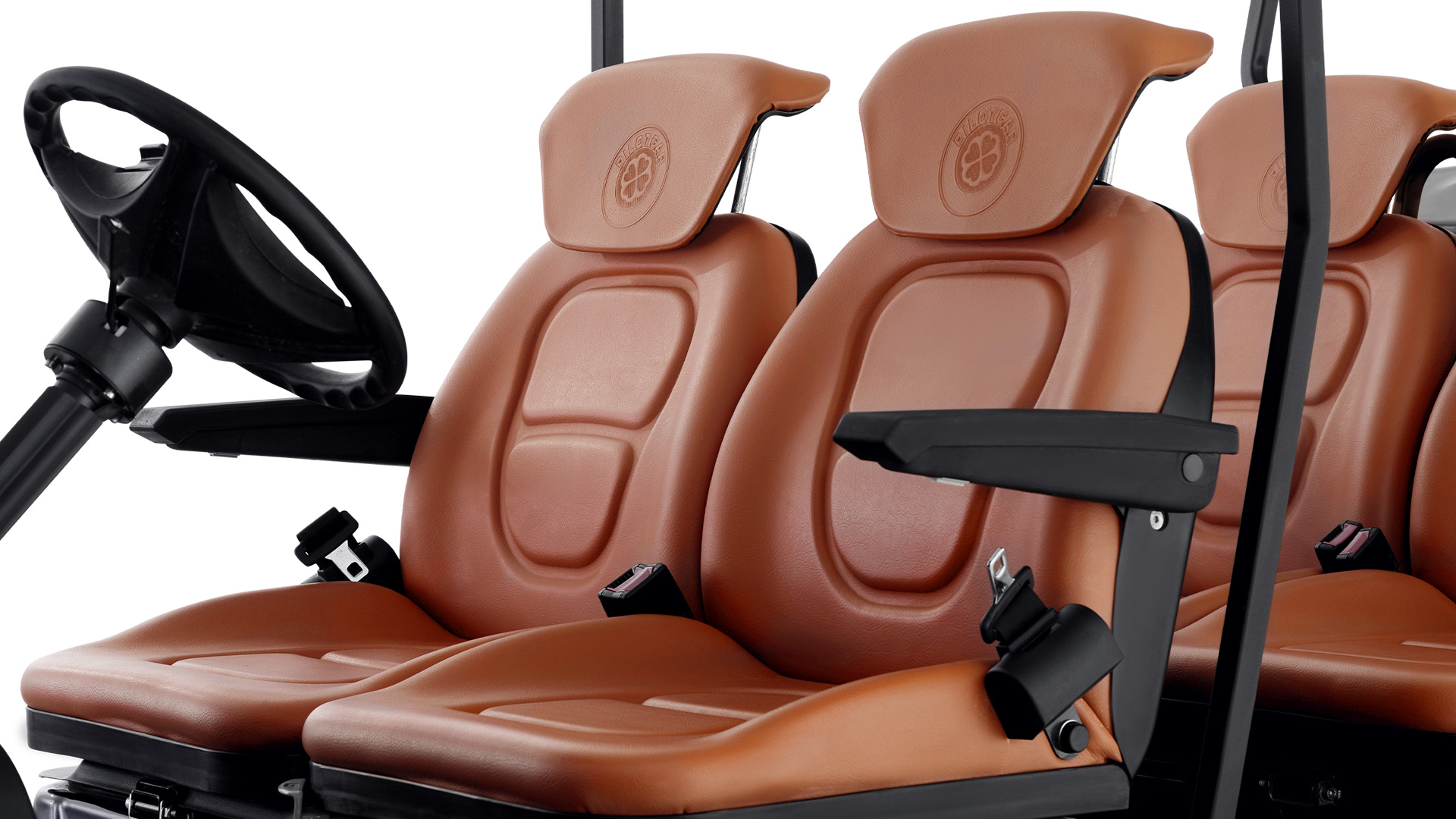

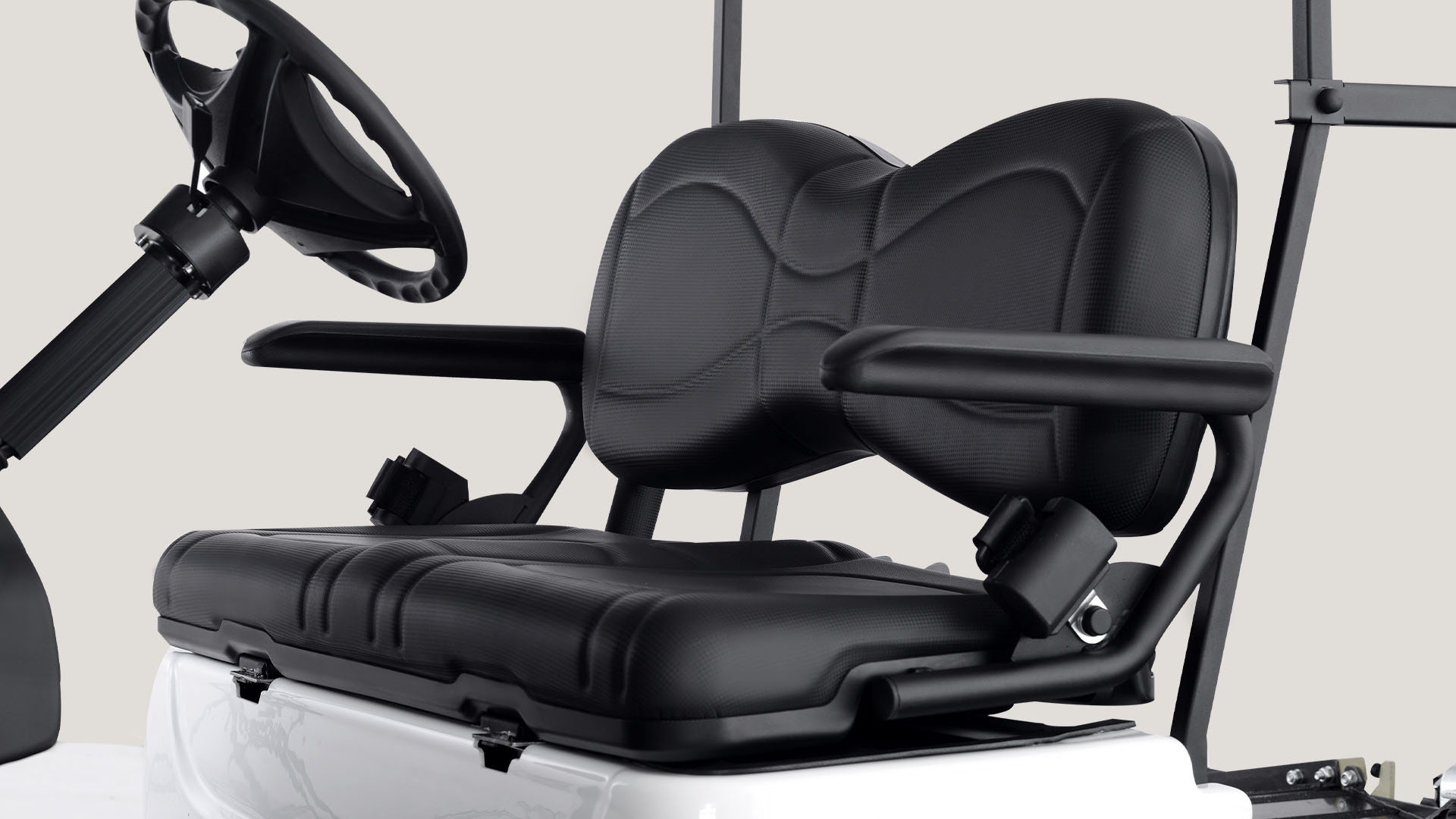

Seat
