PC-4 SL

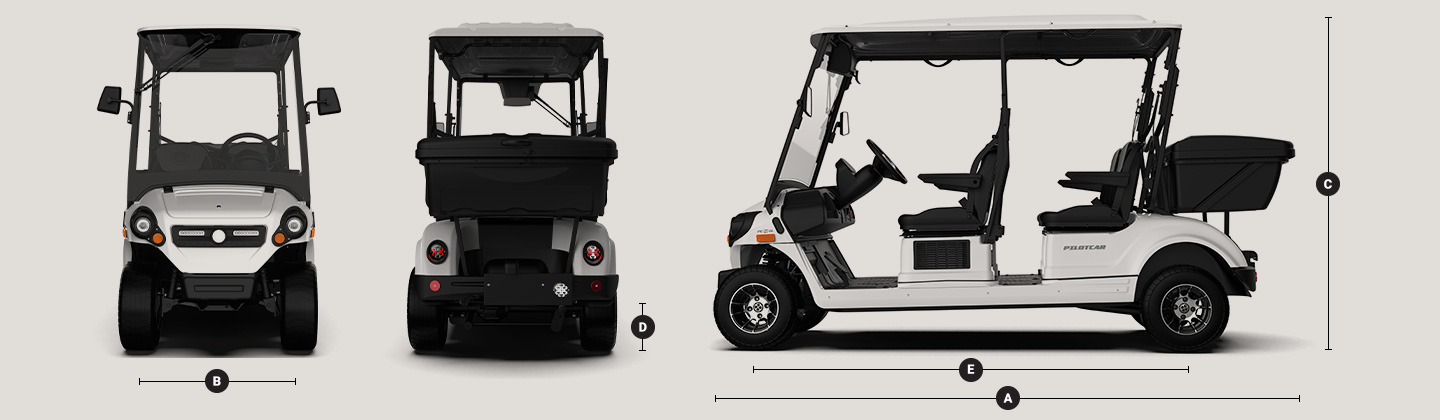

A - Length

3350 mm
(131,8 In)

B - Width

1226 mm
(48,2 In)

C - Height

1857 mm
(73,1 In)

D - Ground Clearance

140 mm
(5,5 In)

E - Wheelbase

2460 mm
(96,8 In)

Motor Power AC
- 6 kW (8.20 hp) Rated / 12.46 kW (16.95 hp) Peak
- 10 kW (13.60 hp) Rated / 22.43 kW (30.50 hp) Peak

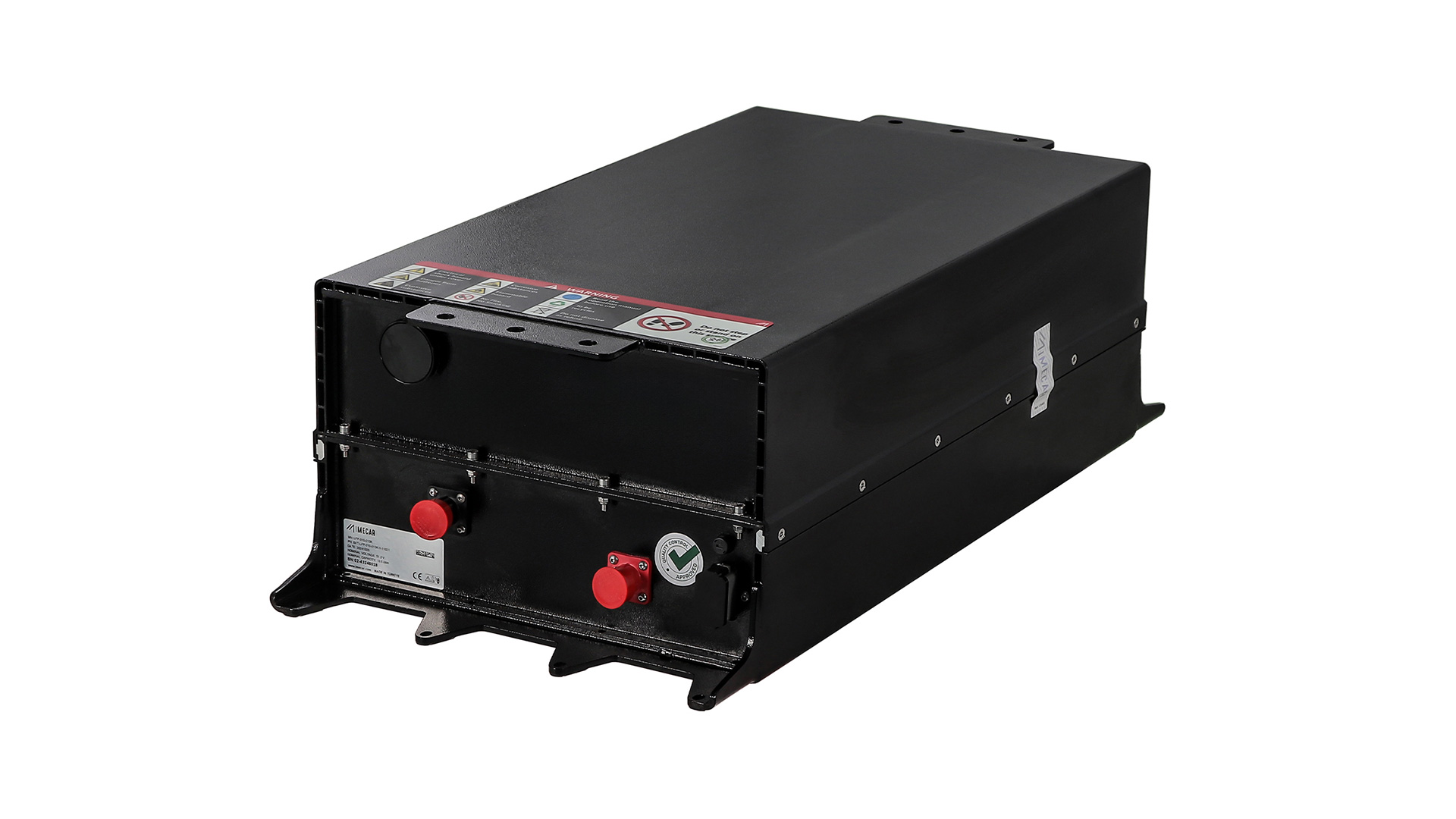

Battery
- Lead-Acid Battery Package 8x6v (11.5 kWh)
- Lithium Battery Package (10.5 kWh)

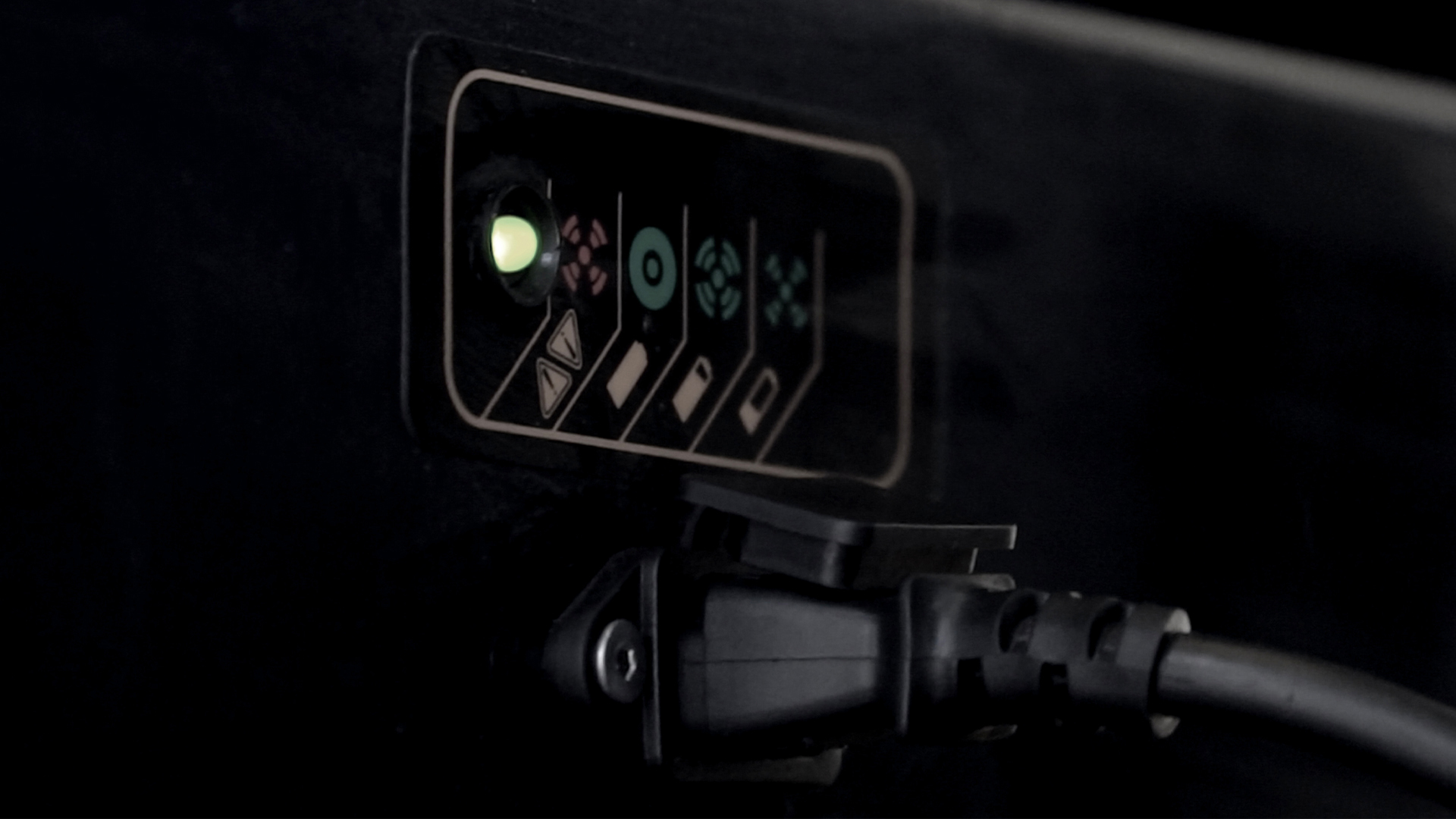

Charge Unit
Lead-Acid Battery Package
DELTA-Q QuiQ 1000 Onboard Charge Unit
w/auxillary charge indicator 110-220 VAC@18A/48V
Lithium Battery Package
3.3 kW Onboard Charger 85-265 VAC@40A/48V)
Motor Control Unit AC
CURTIS 1234SE
CURTIS 1236SE

Max. Speed
50 km/h (32mph)
Range
- Lead-Acid Battery Package: 73 km (45.3 mi)*
- Lithium Battery Package: 89 km (55.3 mi)*
Max. Gradeability
20%
Charge Time
Lead-Acid Battery Package
80% - 7 hrs
100% - 9 hrs
Lithium Battery Package
80% - 4 hrs
100% - 6 hrs
Turning Radius
4.3 m (14,1 ft)
* EU:168/2013

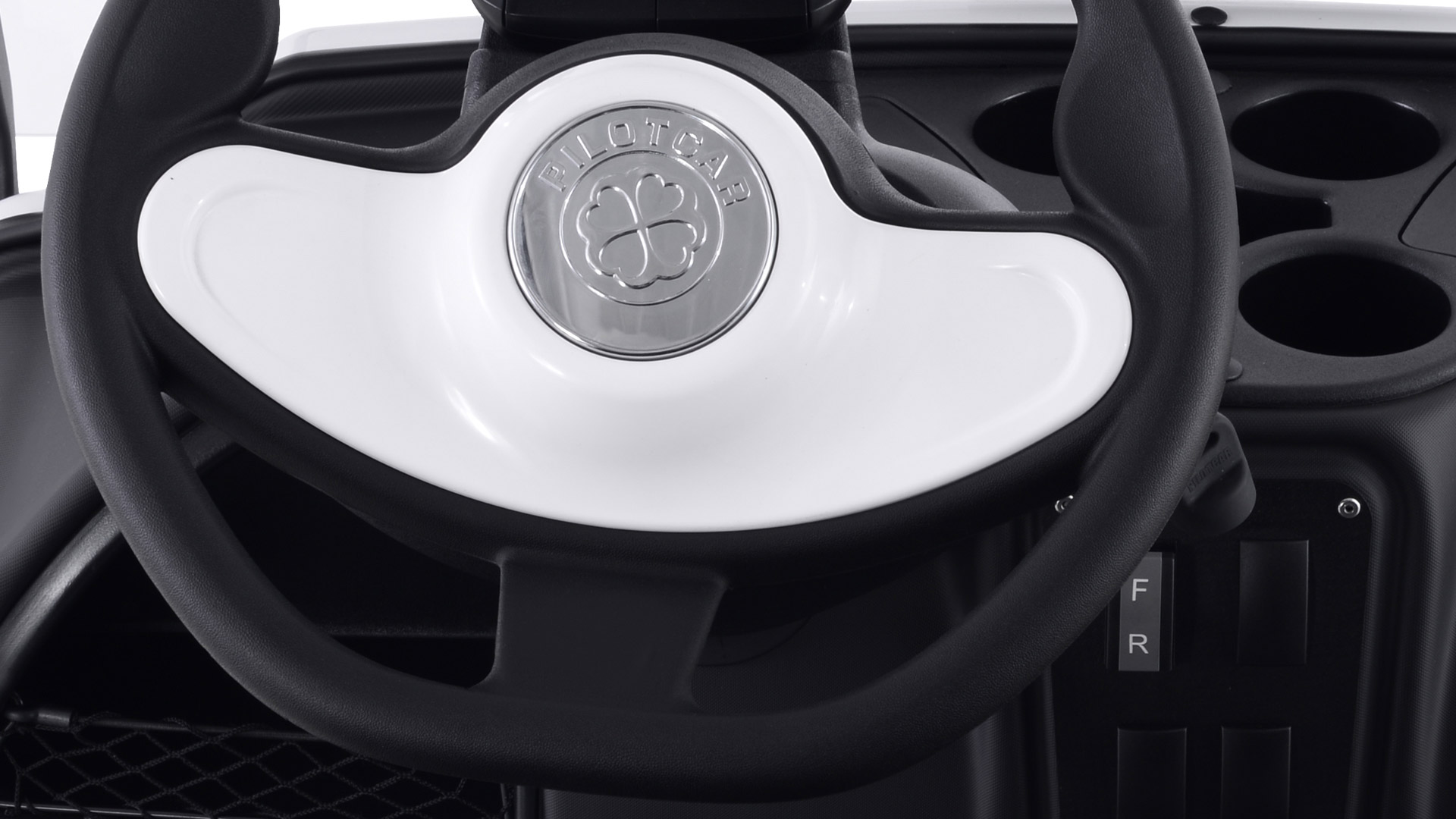

Steering
Self-compensating double reduction helical
rack-and-pinion

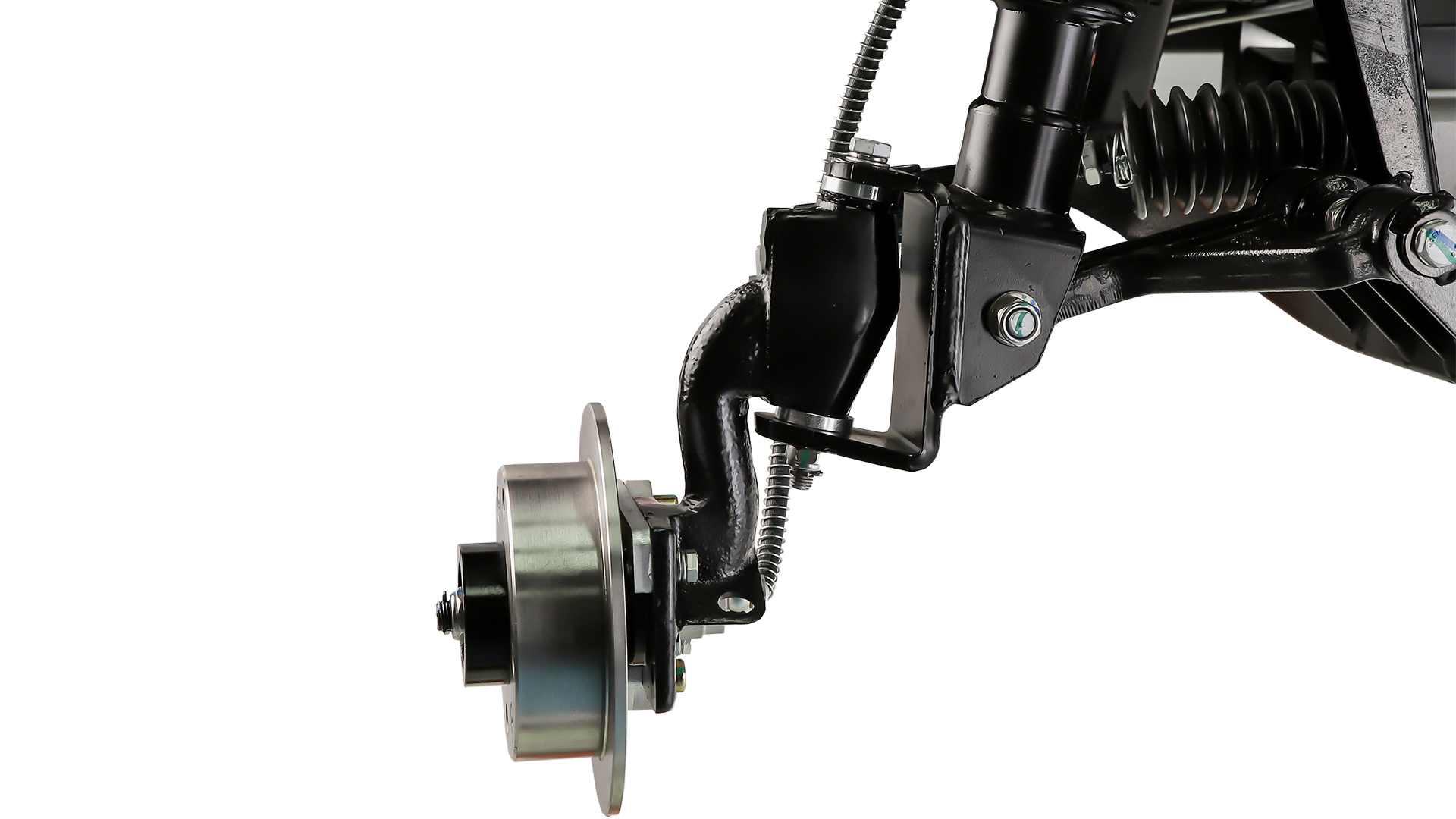

Suspension Front
Fully independent McPherson style strut suspension
Suspension Rear
Semi independent, swing arm with coil springs over
hydraulic shock absorbers

Body
Naturally colored Thermoplastic ABS
White, Midnight Blue, Red, Black, Gray
Chassis
Automotive style steel frame with high corrosion resistance
Sanding / E-coating / Static Wet Paint

Curb Weight
Lead-Acid Battery Package: 700 kg (1543,2 Ib)*
Lithium Battery Package: 570 kg (1256,6 Ib)*

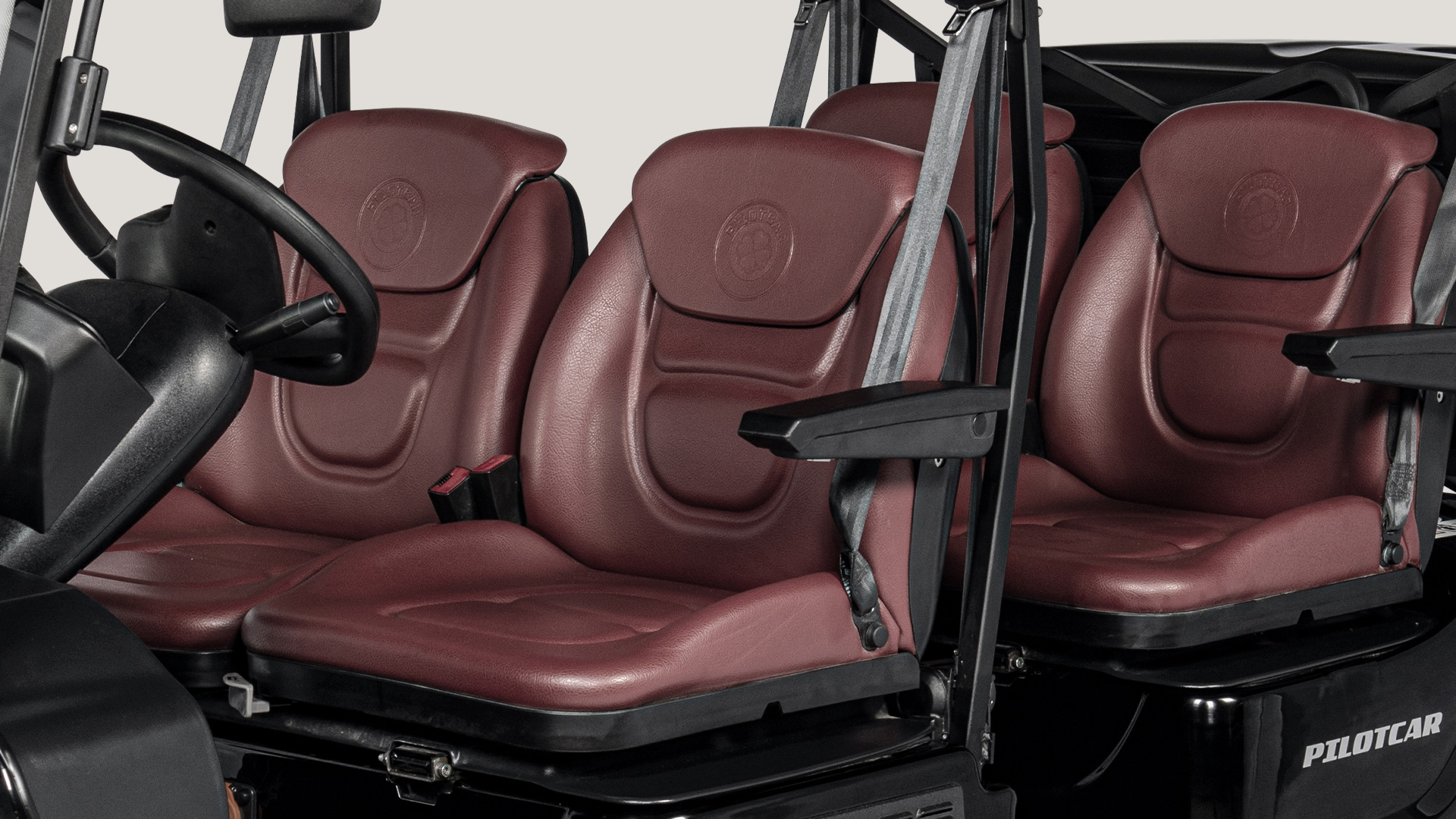

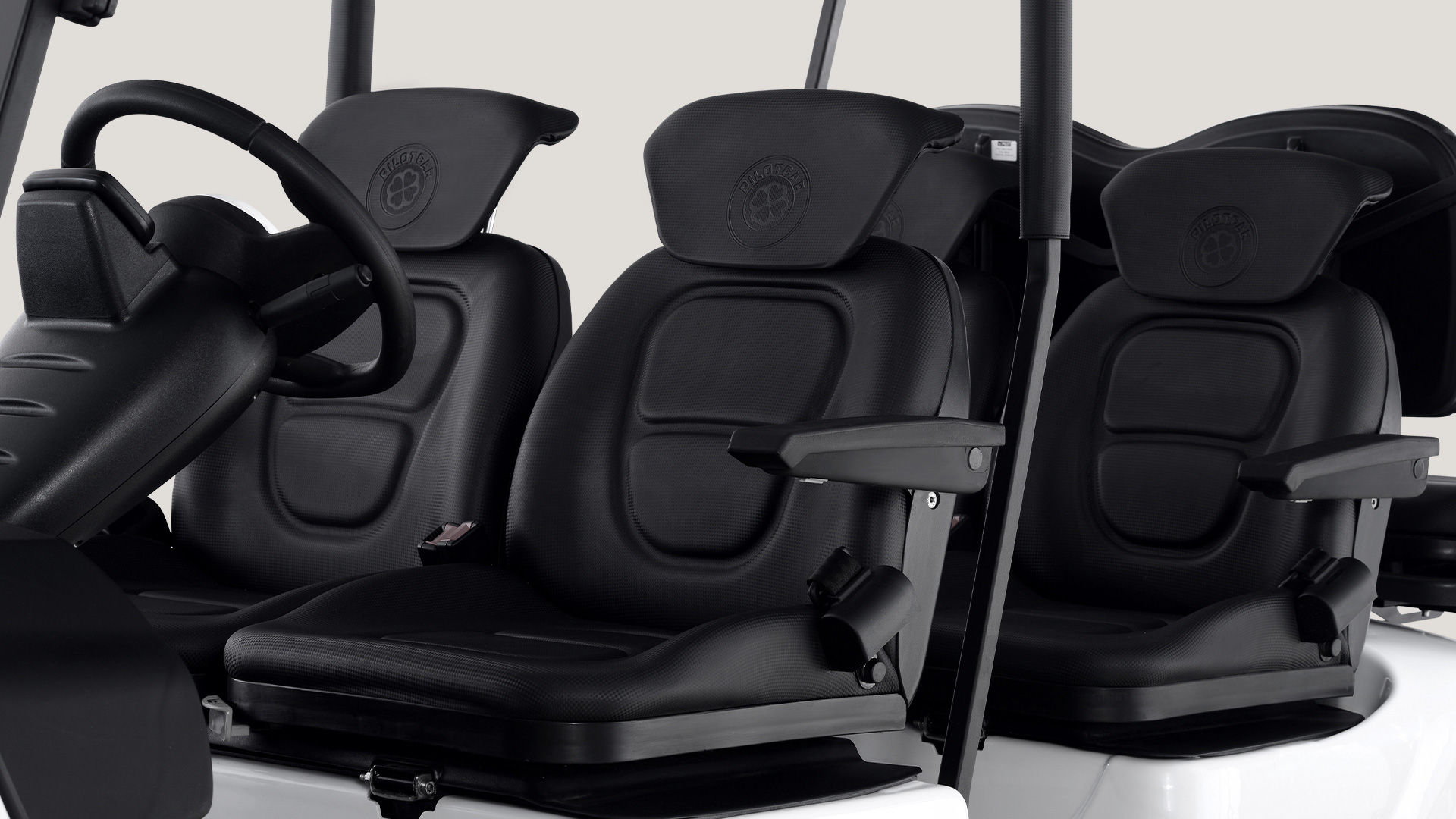

Passenger Capacity
- 1+3 Passenger
Load Capacity
600 kg (1322,7 Ib)

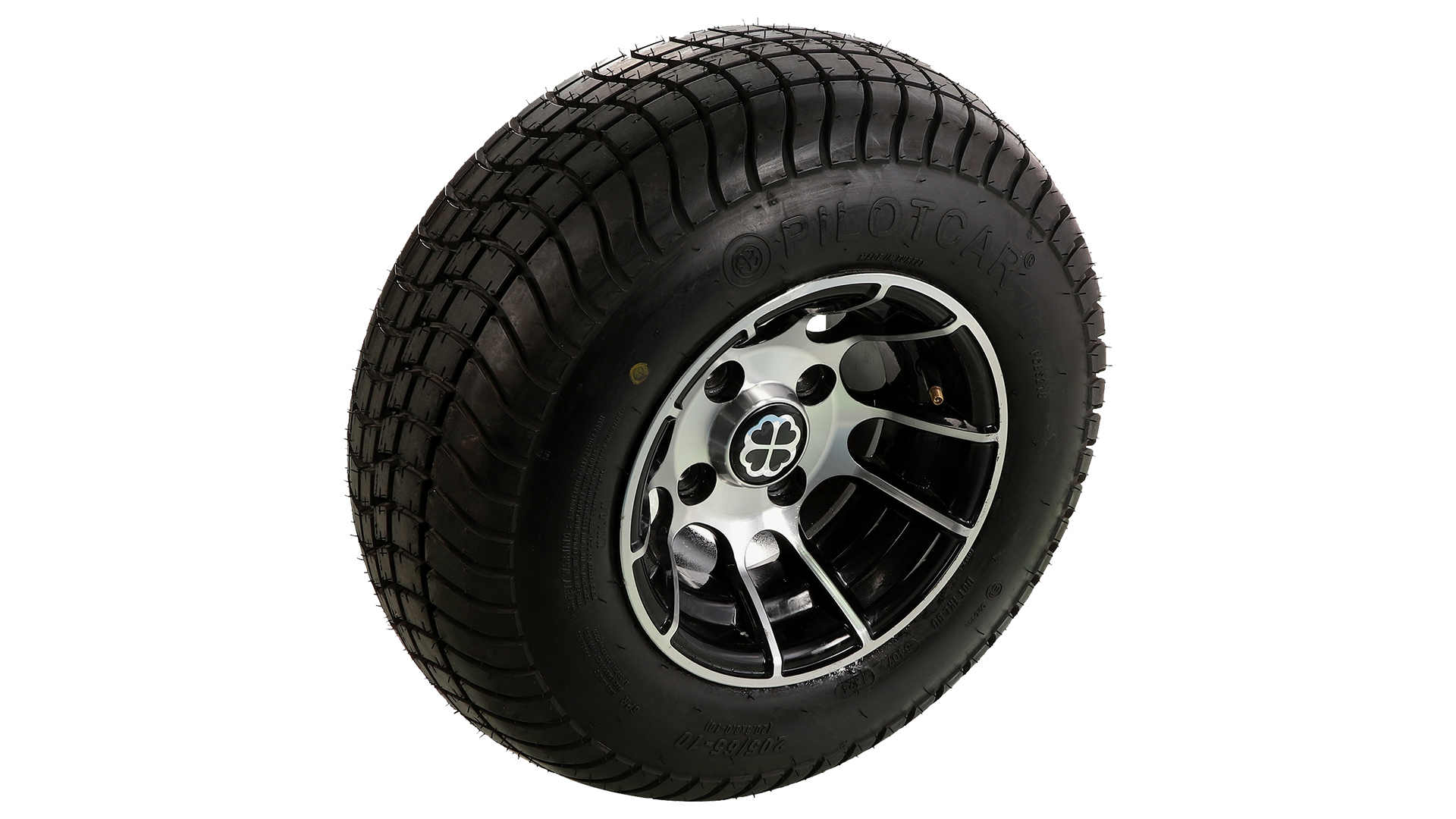

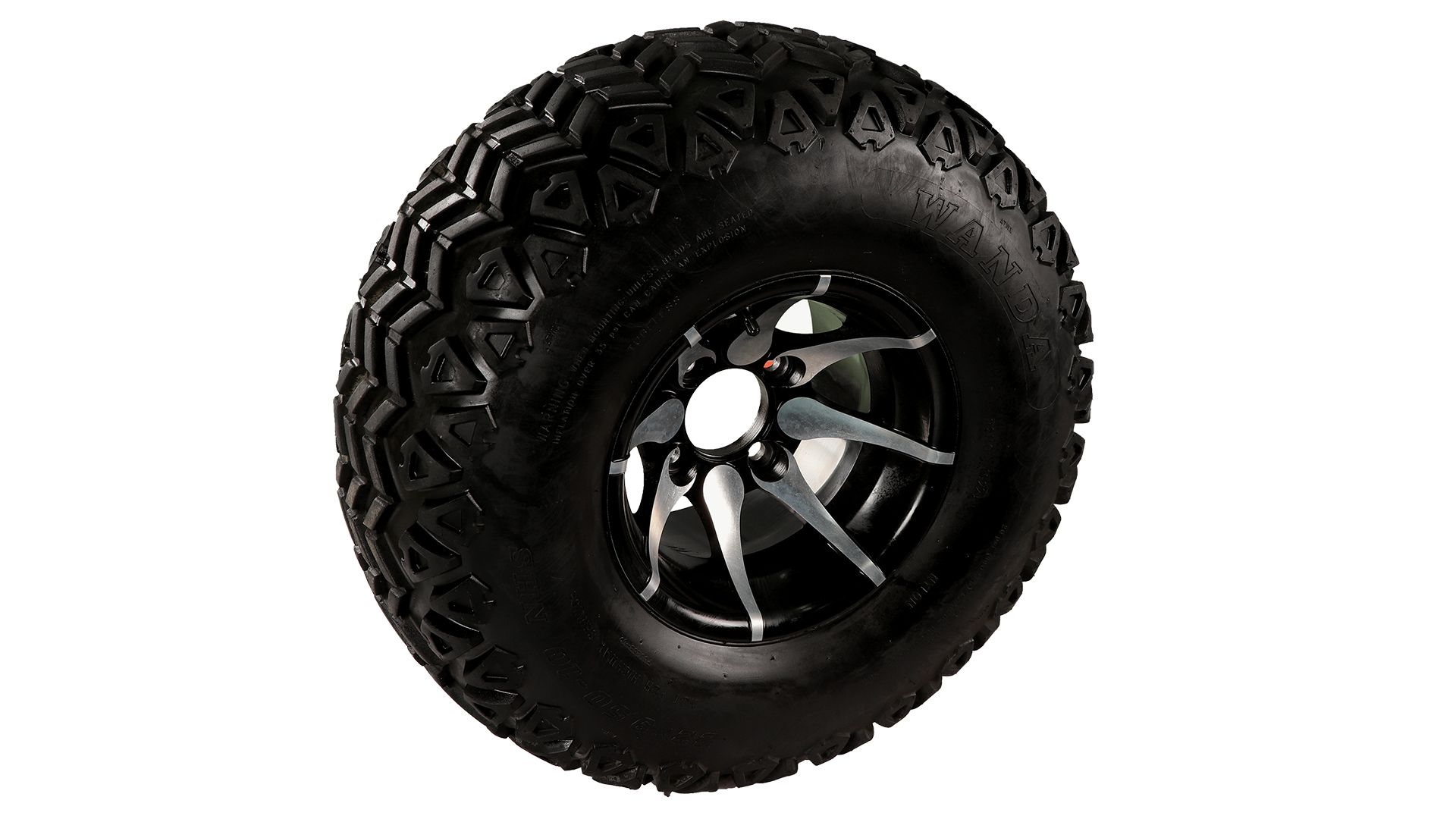

Tyre Dimensions
20.5 x 8-10 (6 ply)
22 x 9.5-10 Off-Road Tyre**
* Standart Vehicle w/Batteries
** Available only for lifted vehicles
