PC-6

  • Performance
    Performance

    Max. Speed 35 km/h

  • Range
    Range

    80 km

  • "0" Emission
    "0" Emission

    100% Electric

Test Drive Price Request

THE NEW DEFINITION OF COMFORT

With PC-6's innovative, environmentally and driver-friendly technology, the most unique form of electricity awaits you.

PC-6 Technical Specifications

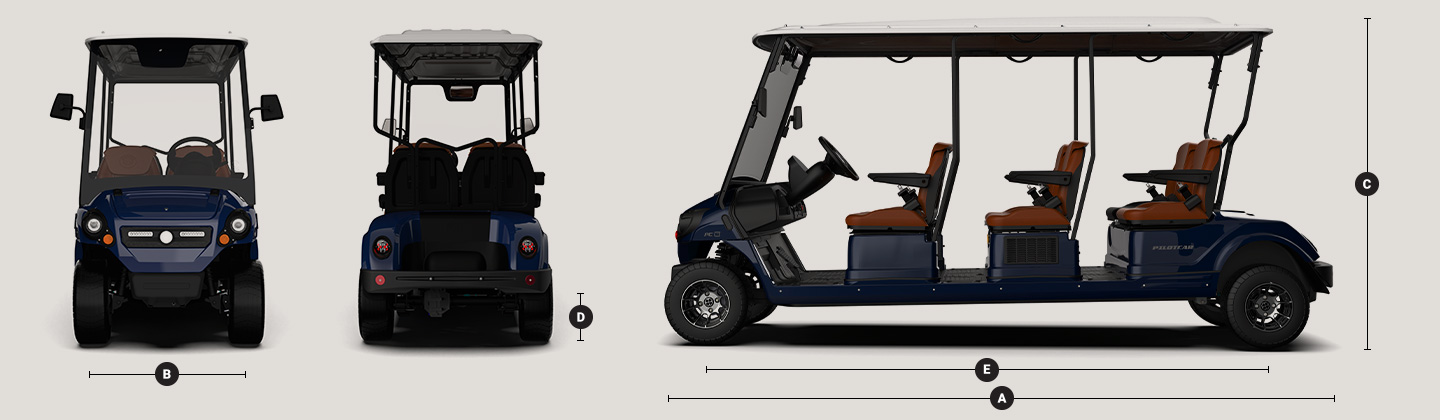

Dimensions

PC-6

4050 mm
​​​​​​​(159,4 In)

1225 mm
(48,2 In)

  • 2000 mm (w/ Suntop)
  • 1220 mm (w/o Suntop)

143 mm
​​​​​​​​​​​​​​​​​​​​​(5,6 In)

3320 mm
​​​​​​​​​​​​​​(130,7 In)

Power | Electricity-48 V (AC)

    • 6 kW (8.20 hp) Rated / 12.46 kW (16.95 hp) Peak
    • 10 kW (13.60 hp) Rated / 22.43 kW (30.50 hp) Peak
    • Lead-Acid Battery Package 8x6V (11.52 kWh)
    • Lithium Battery Package (10.8 kWh)

  • Lead-Acid Battery Package

    • Onboard Charge Unit
      110-220 VAC@6A 1A/48V

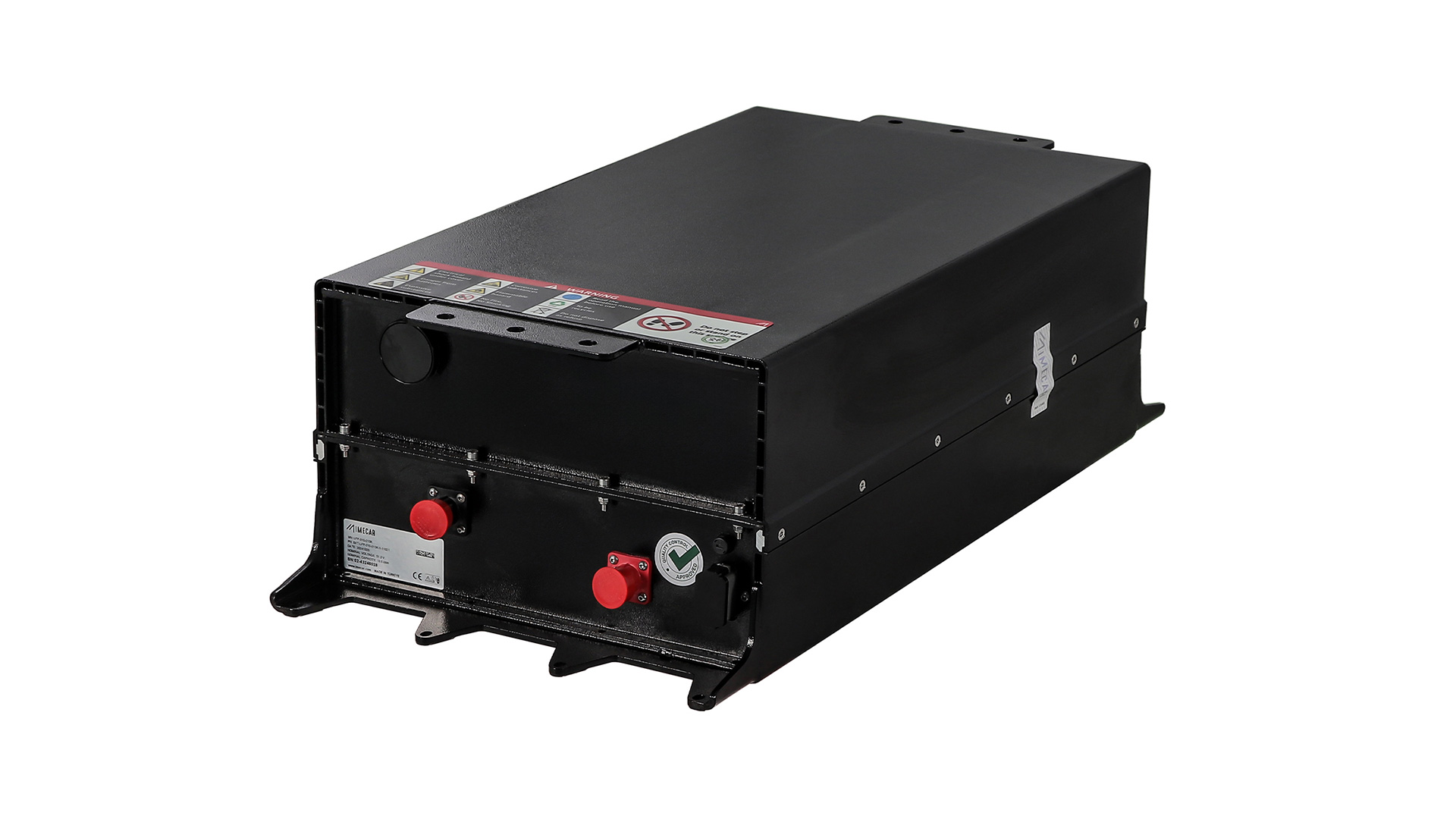

    Lithium Battery Package

    • 3.3 kW Onboard Charge Unit
      85-265 VAC@16 A 40A/48V

Performance

  • 24 km/h - 35 km/h*

  • 8 km/h
    • Lead-Acid Battery Package: 80 km**
    • Lithium Battery Package: 80 km**

  • 25%

  • Lead-Acid Battery Package
    %80 - 7 hrs
    %100 - 9 hrs
    Lithium Battery Package
    %80 - 4 hrs
    %100 - 6 hrs

  • 5.6 m

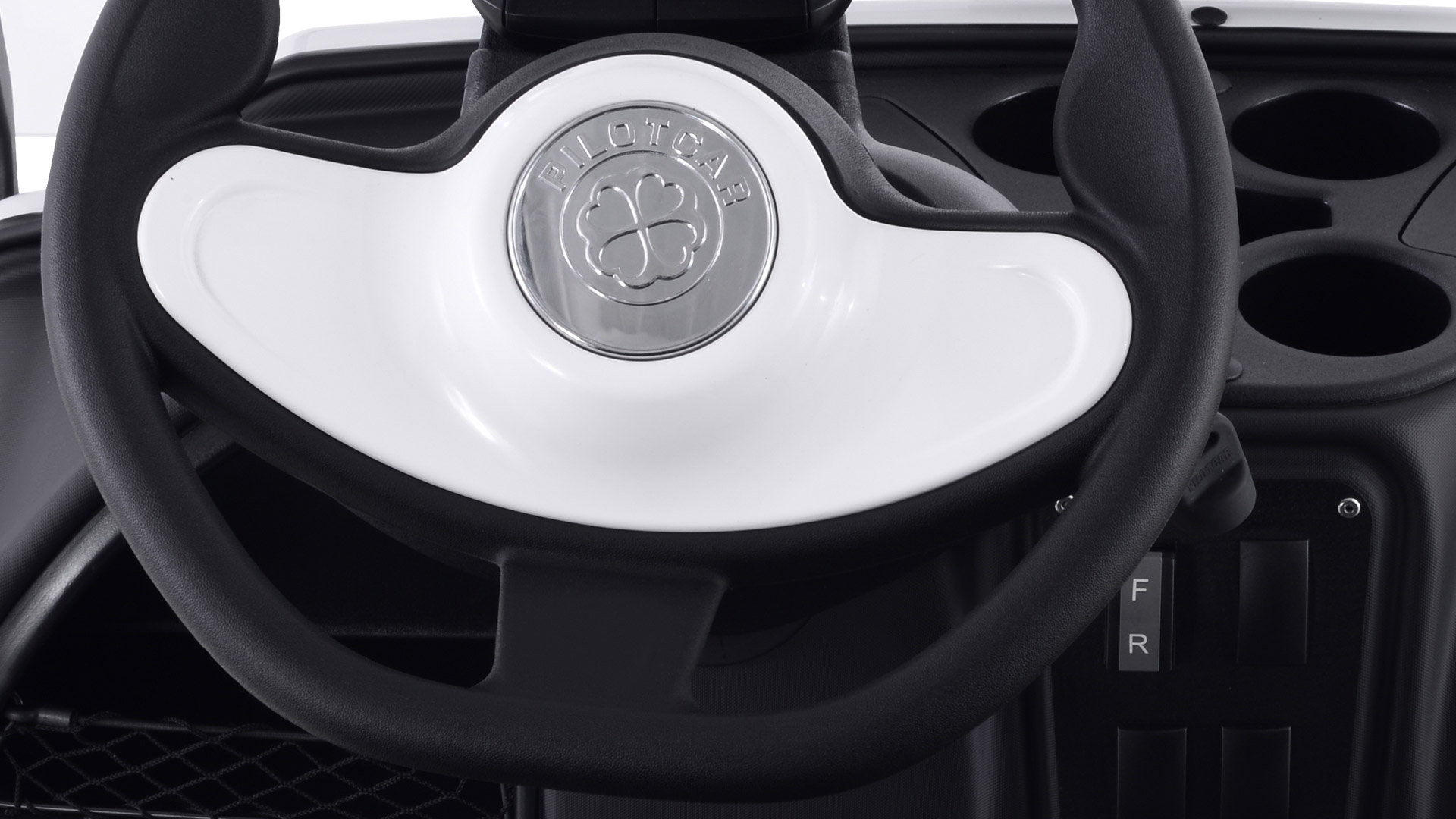

Steering Wheel & Suspension System

  • Self-compensating, double reduction, no lubrication required
    helical rack and pinion
    Option: Electric Power Steering (EPS)

  • Fully independent MacPherson style strut suspension

  • Leaf springs w/dual hydraulic shocks

Body & Chassis

  • Naturally colored Thermoplastic ABS
    White, Midnight Blue, Black, Special Color

  • Automotive style steel frame with high corrosion resistance
    Sanding / E-coating / Static Wet Paint / PVC Coating

Brake System

  • 4-wheel hydraulic drum brake system

  • Electromagnetic parking brake

General

  • Lead-Acid Battery Package: 746 kg*
    Lithium Battery Package: 611 kg*
    • 1+5 Passenger
    • 1+7 Passenger

  • 800 kg

  • 1500 kg

  • 20.5 x 8-10 (6 ply)

Warranty

  • 2 years full warranty (Except wearable items)
    5 years limited warranty (Motor and motor control unit)
    70% performance at min. 2500 cycles for lithium battery package

OPTIONS

All you need to do is examine the vehicle options and accessories in detail.

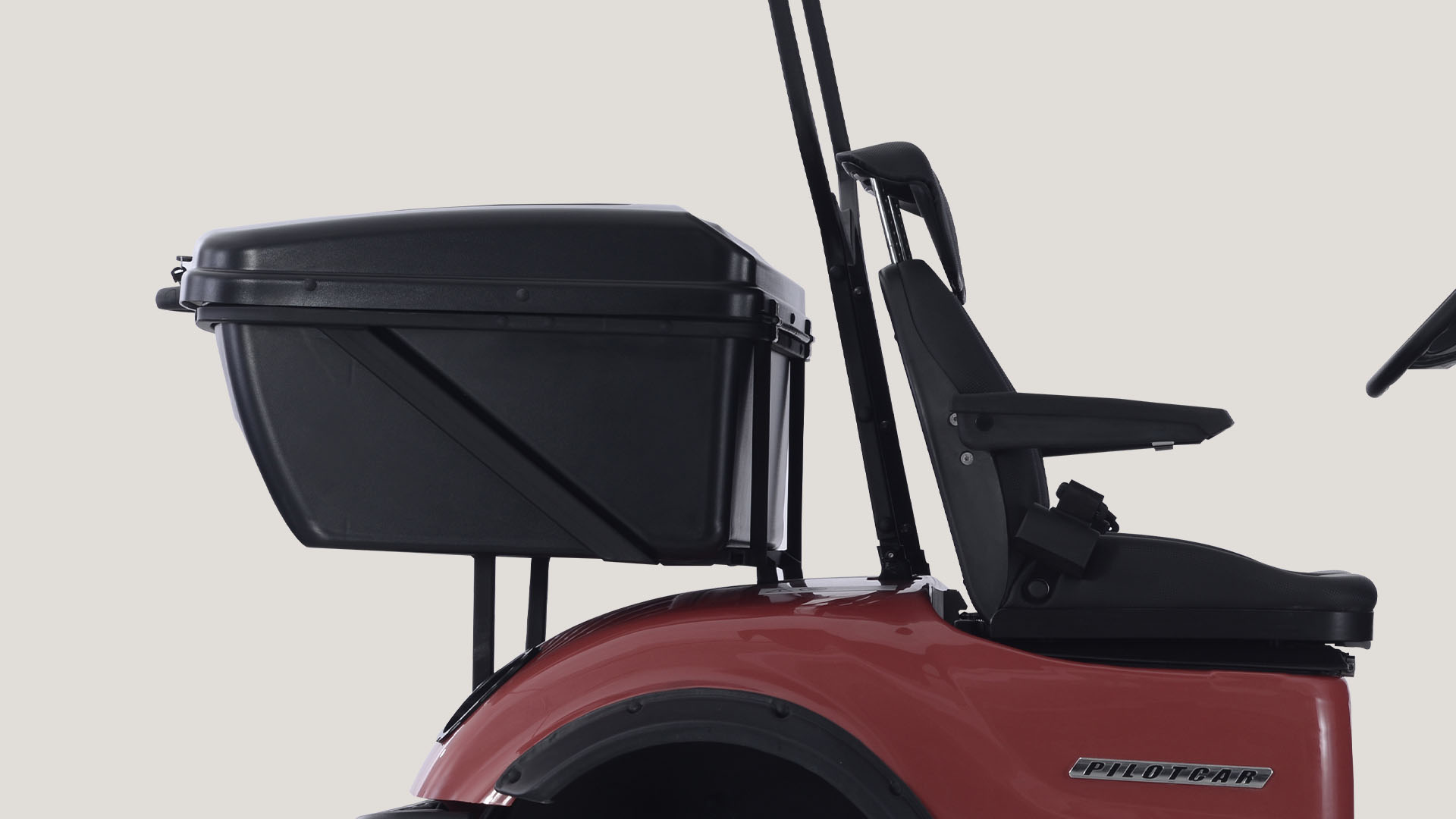

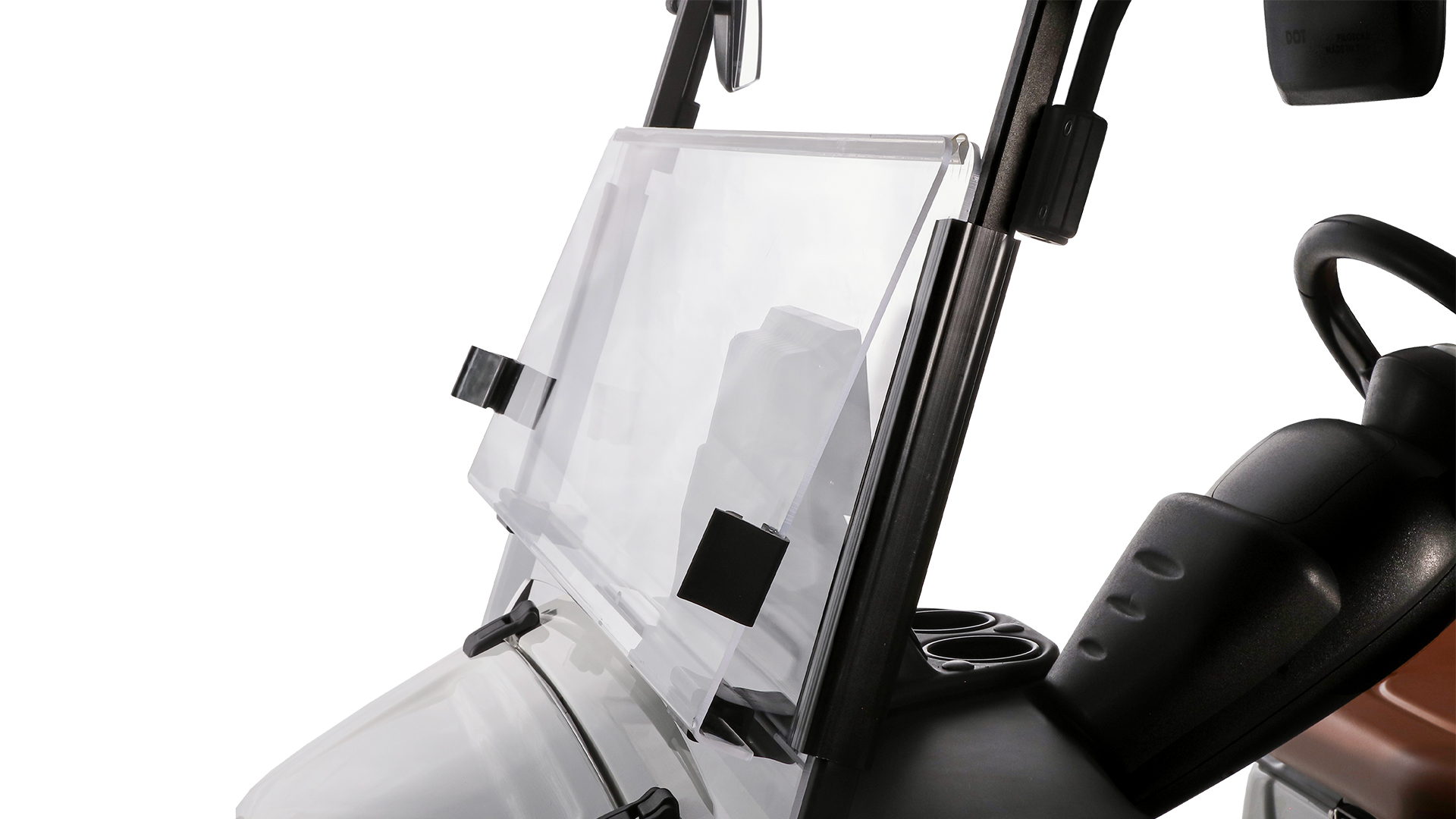

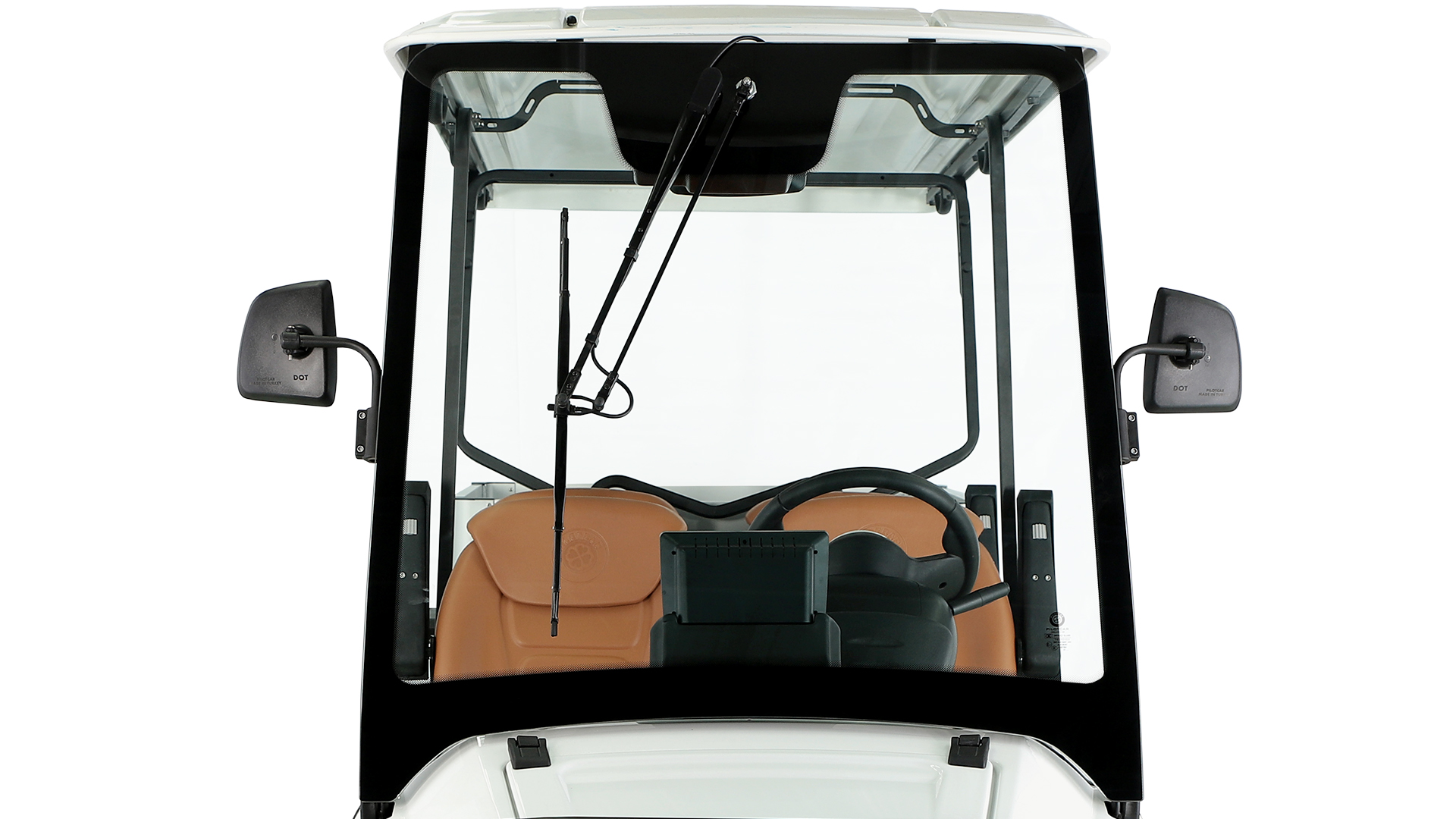

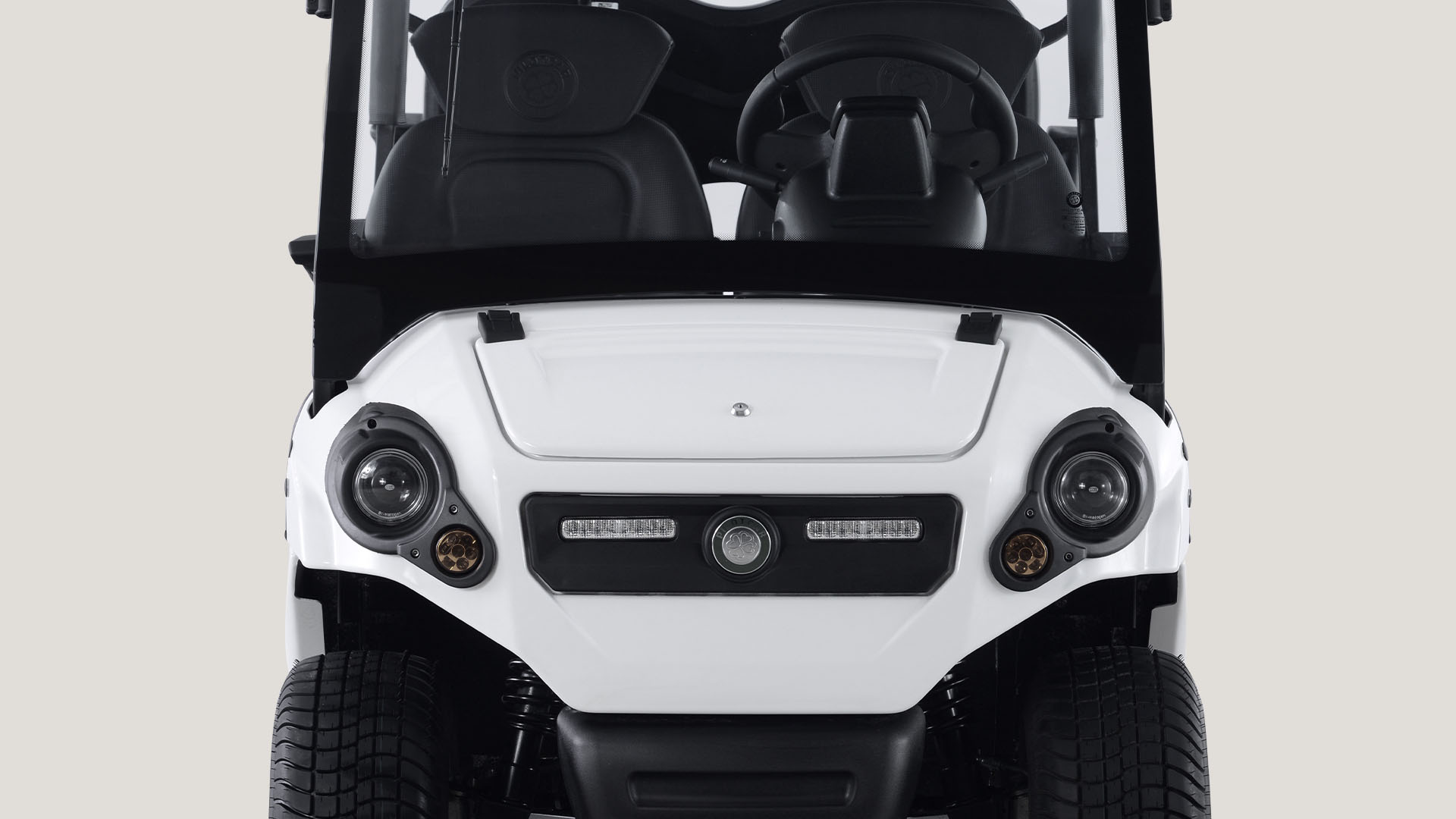

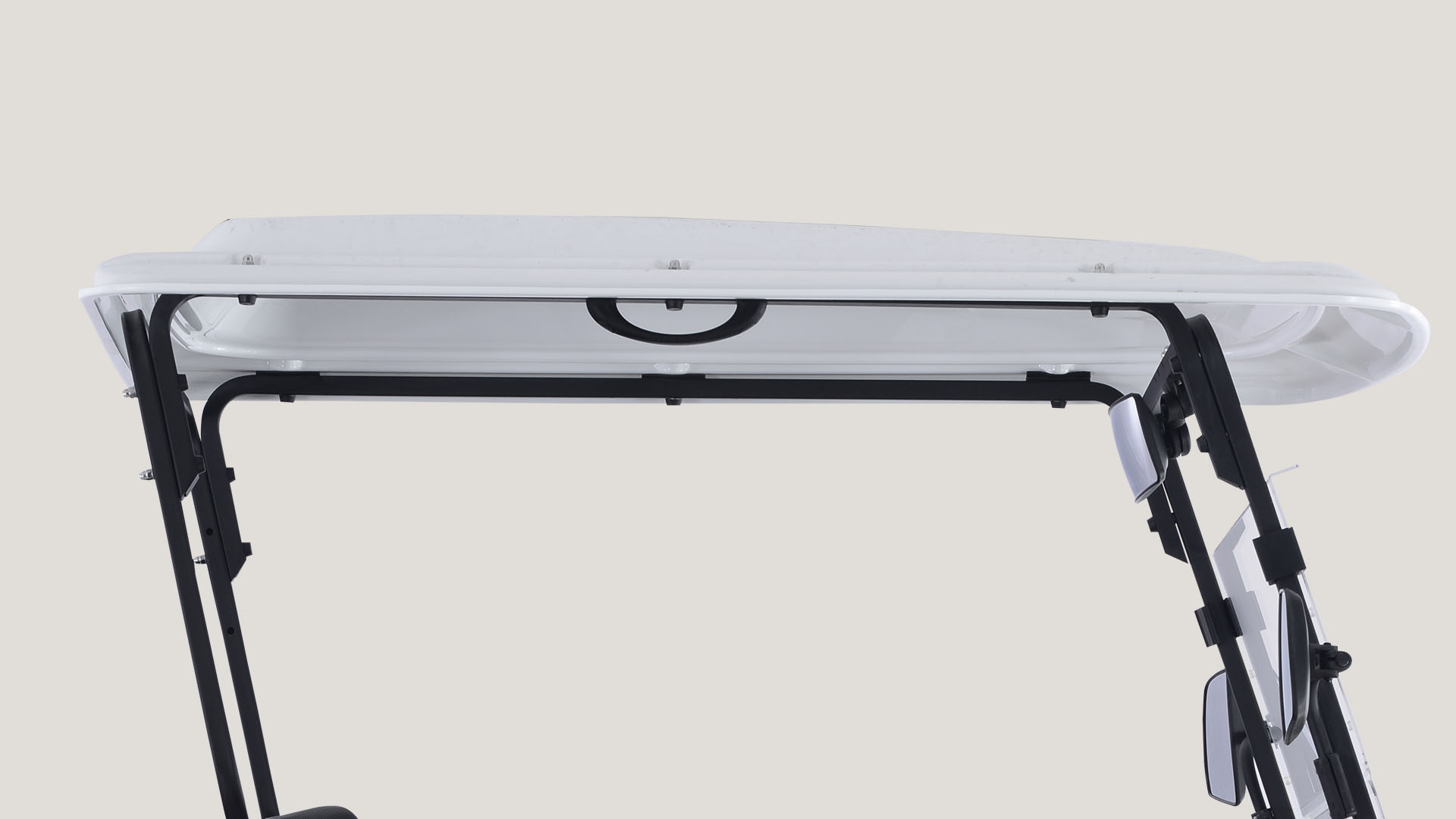

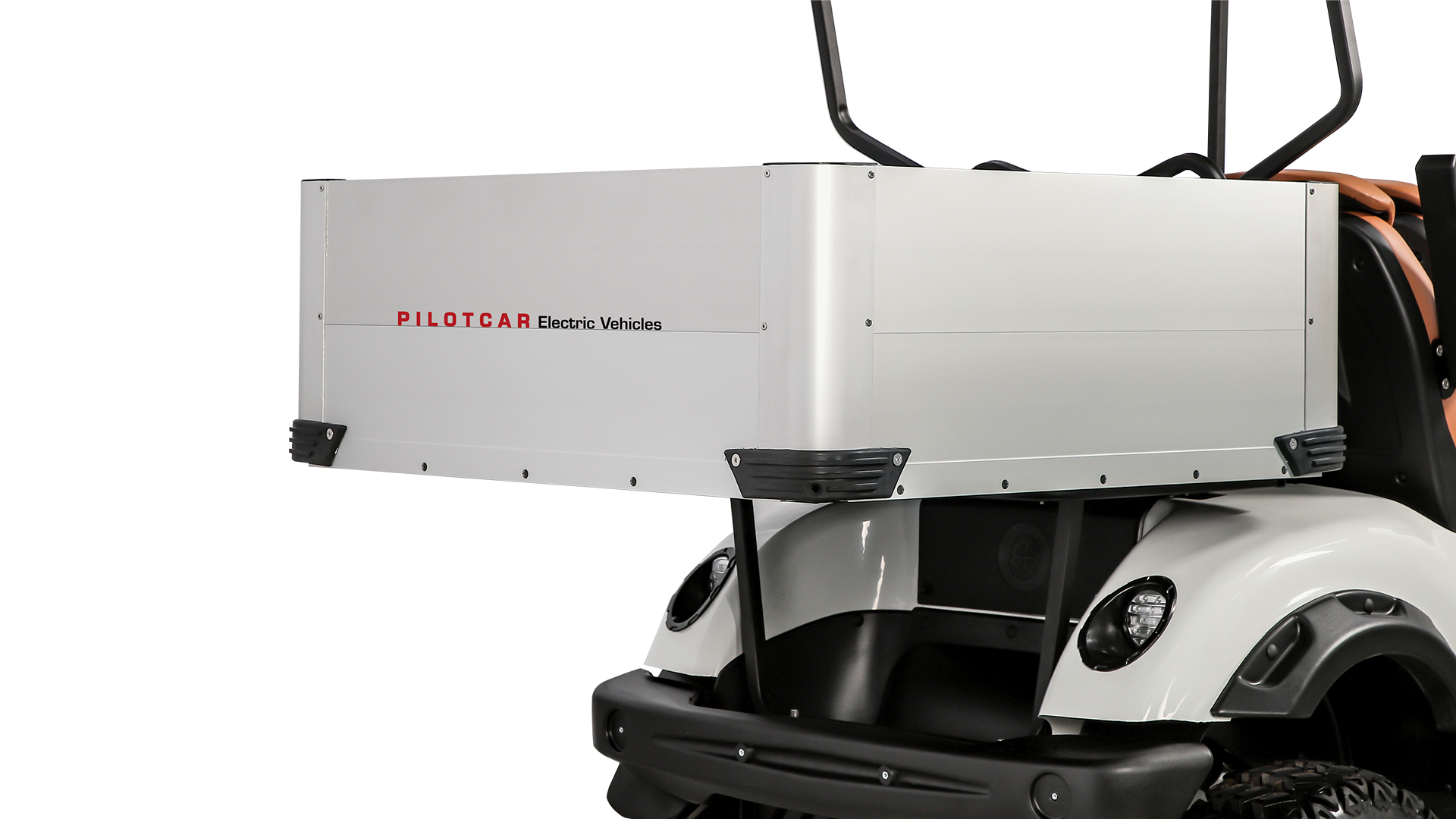

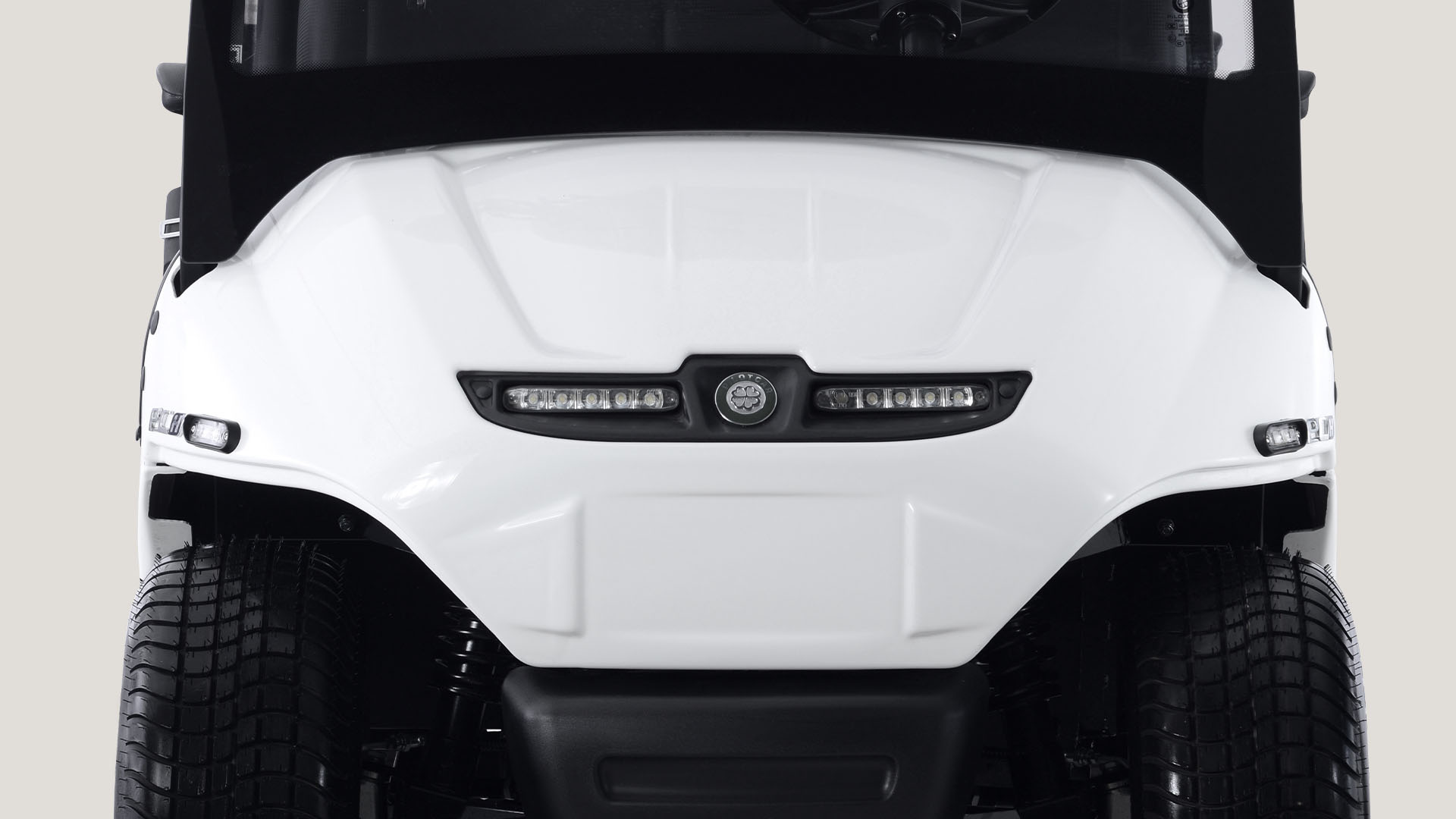

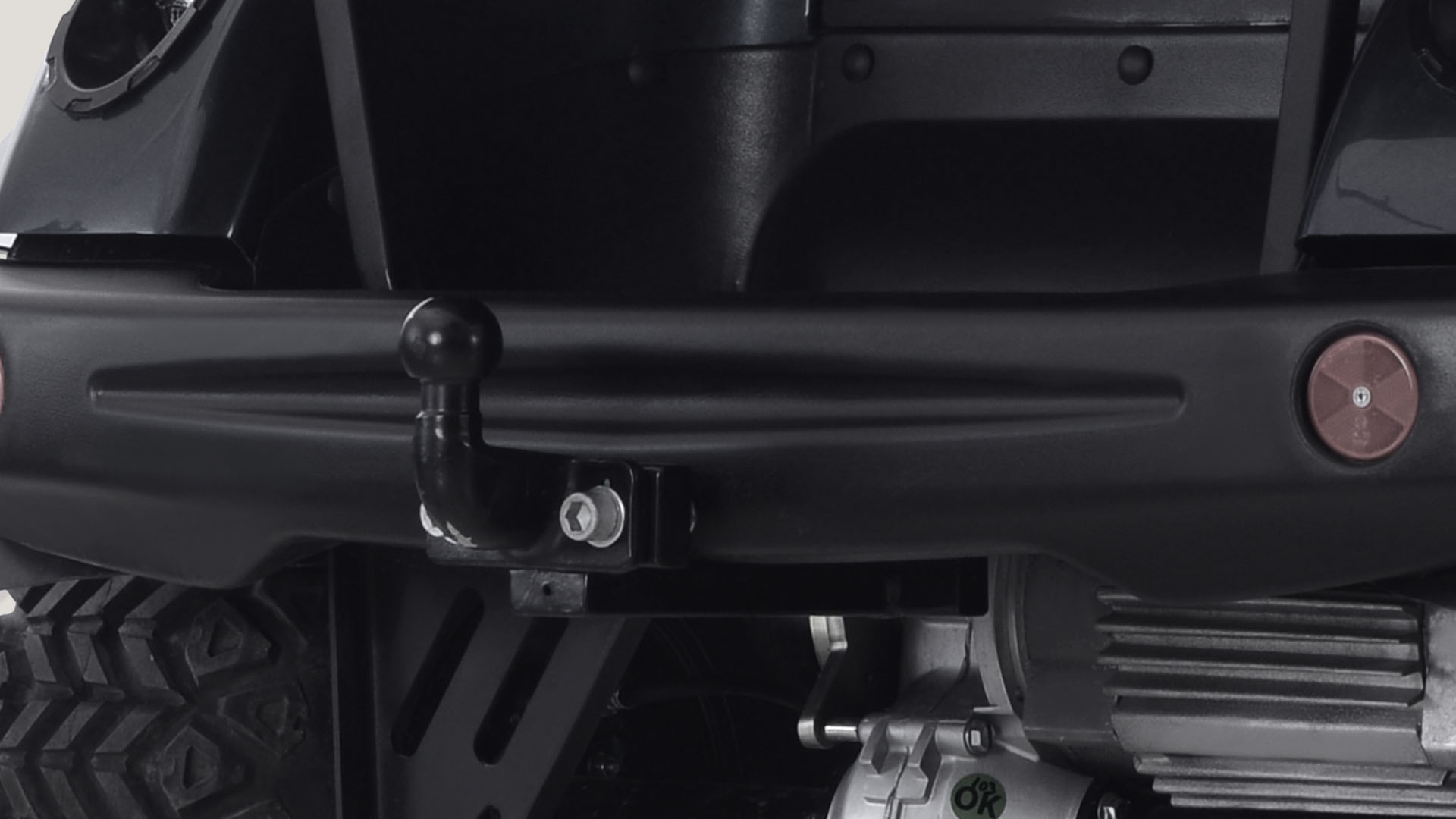

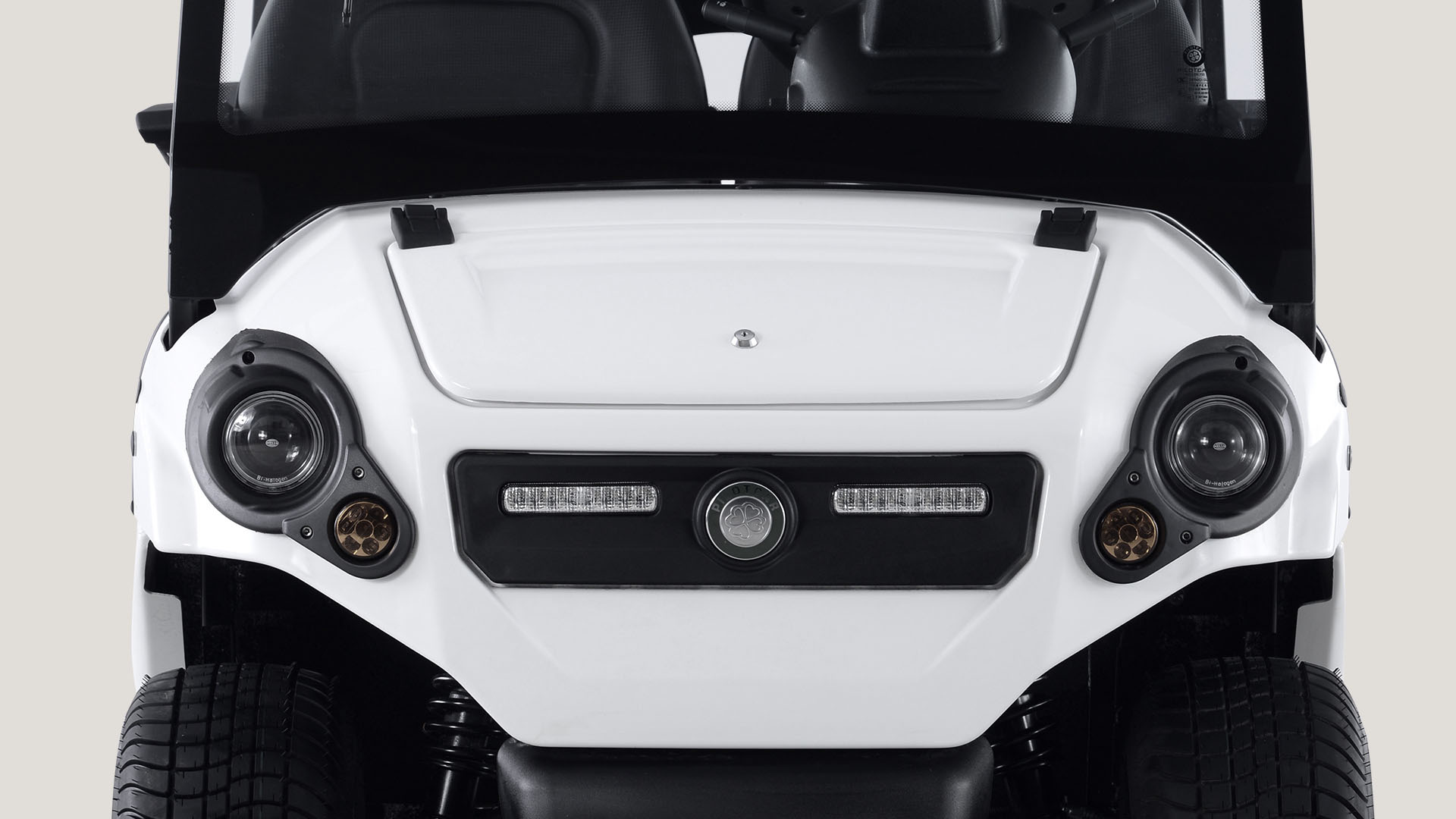

Body

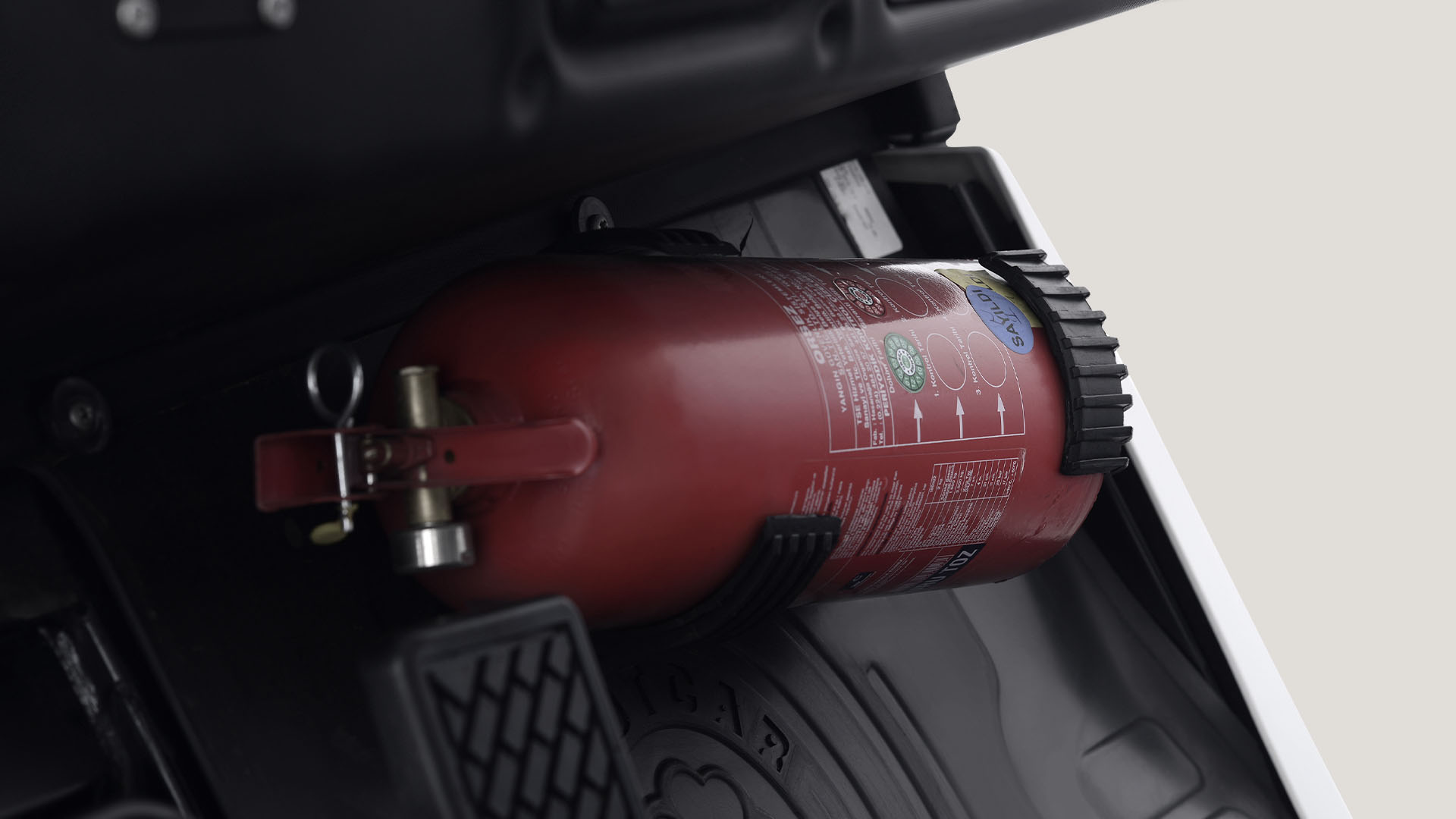

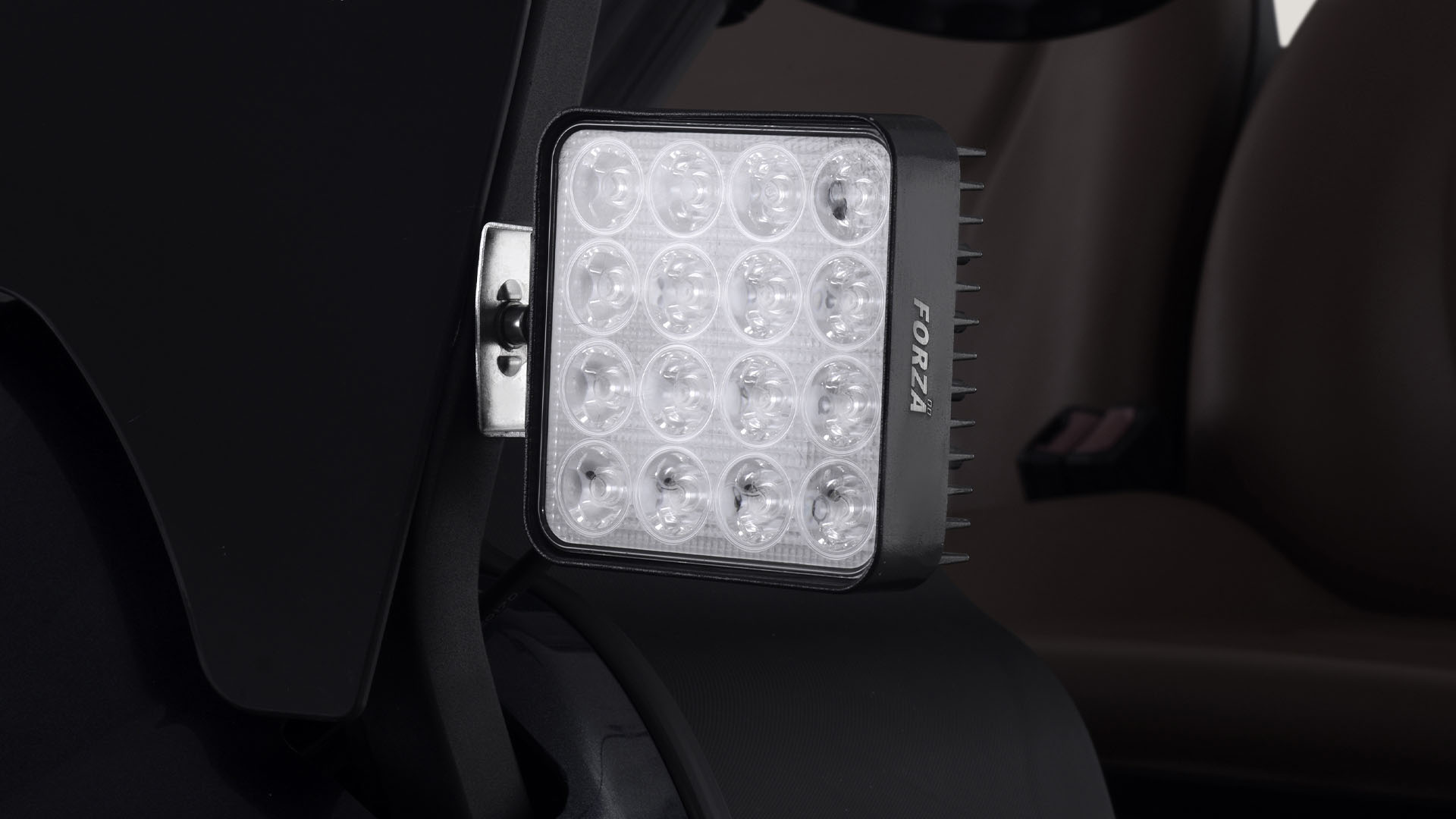

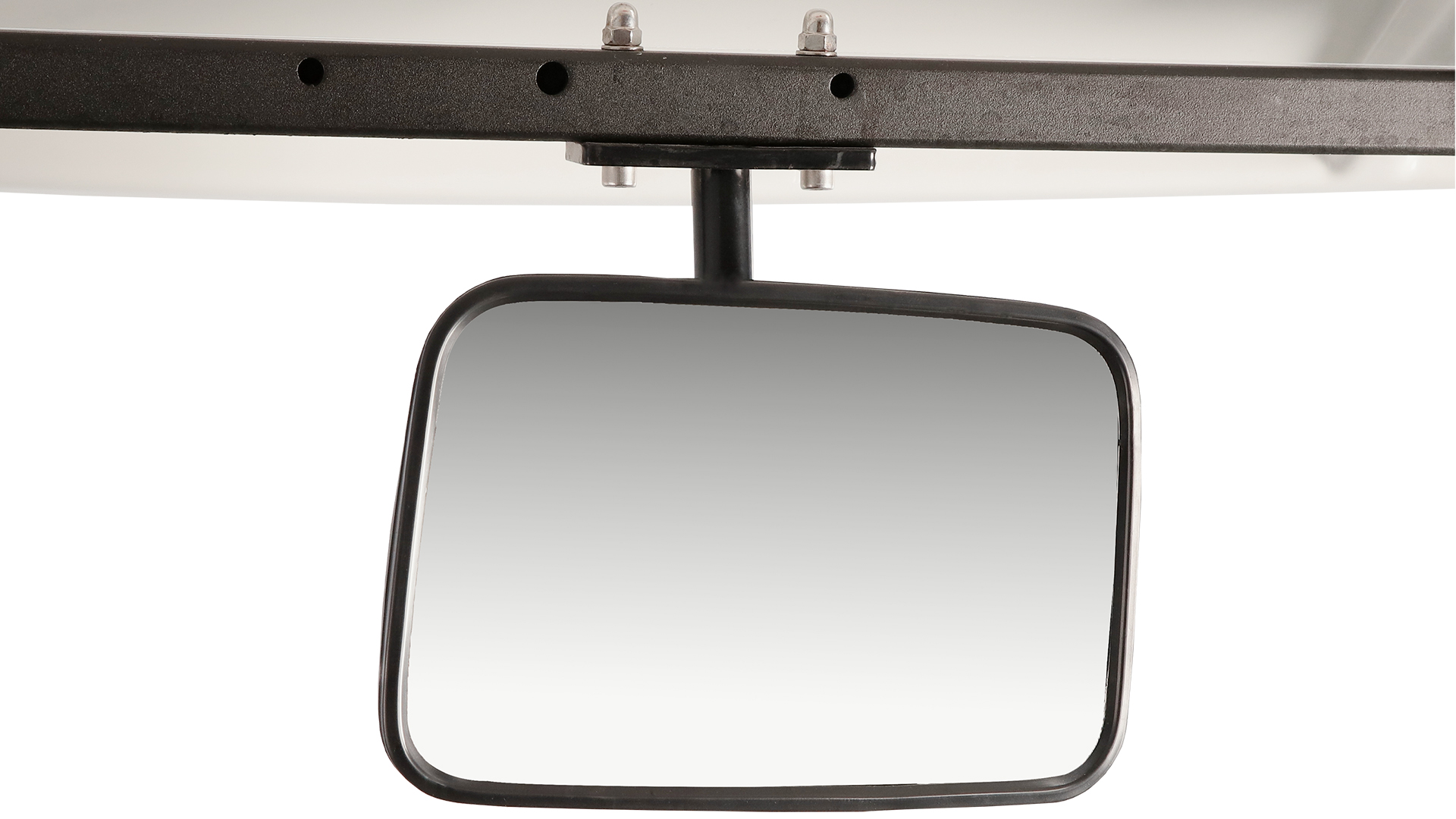

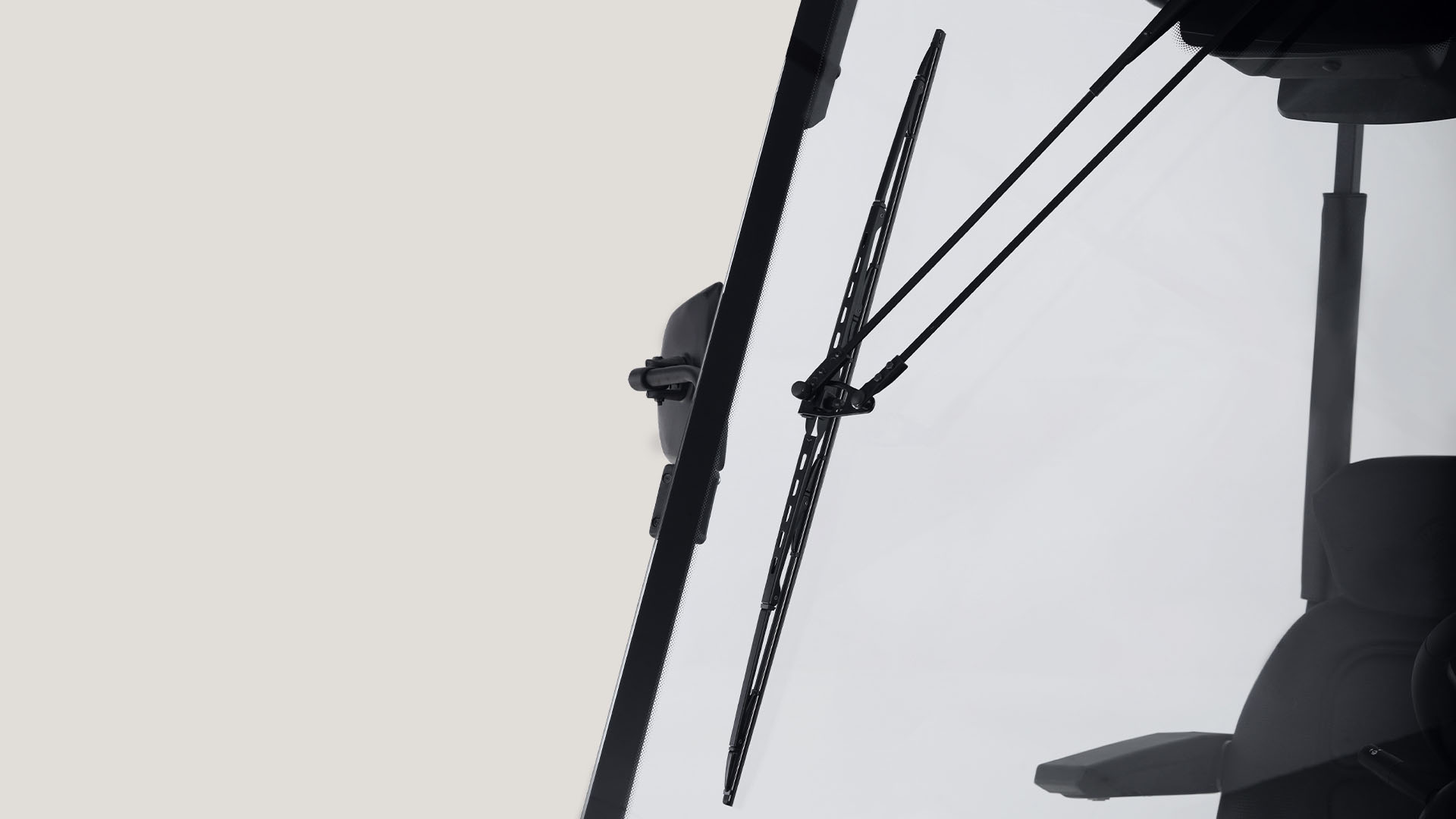

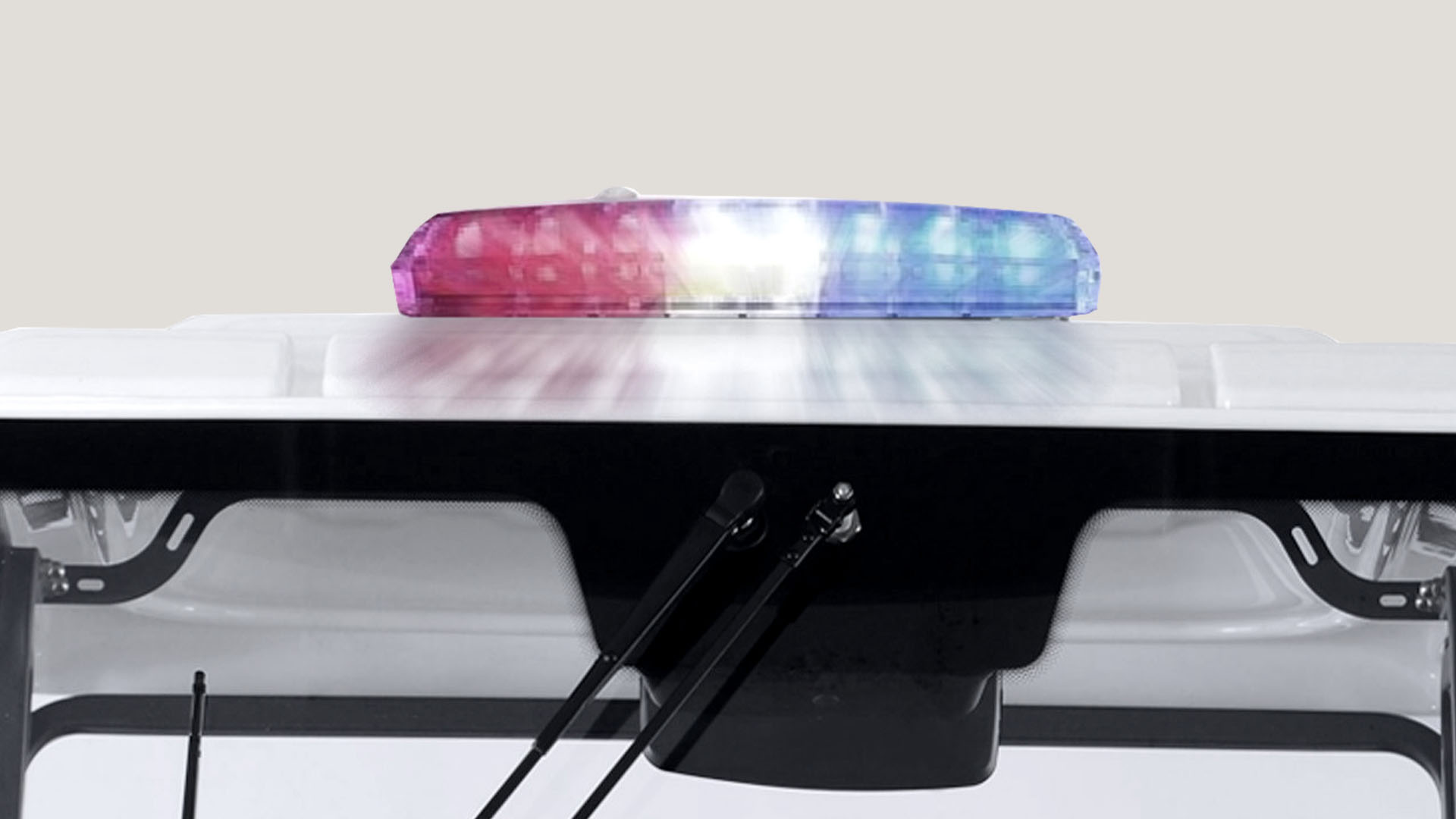

Technology & Safety

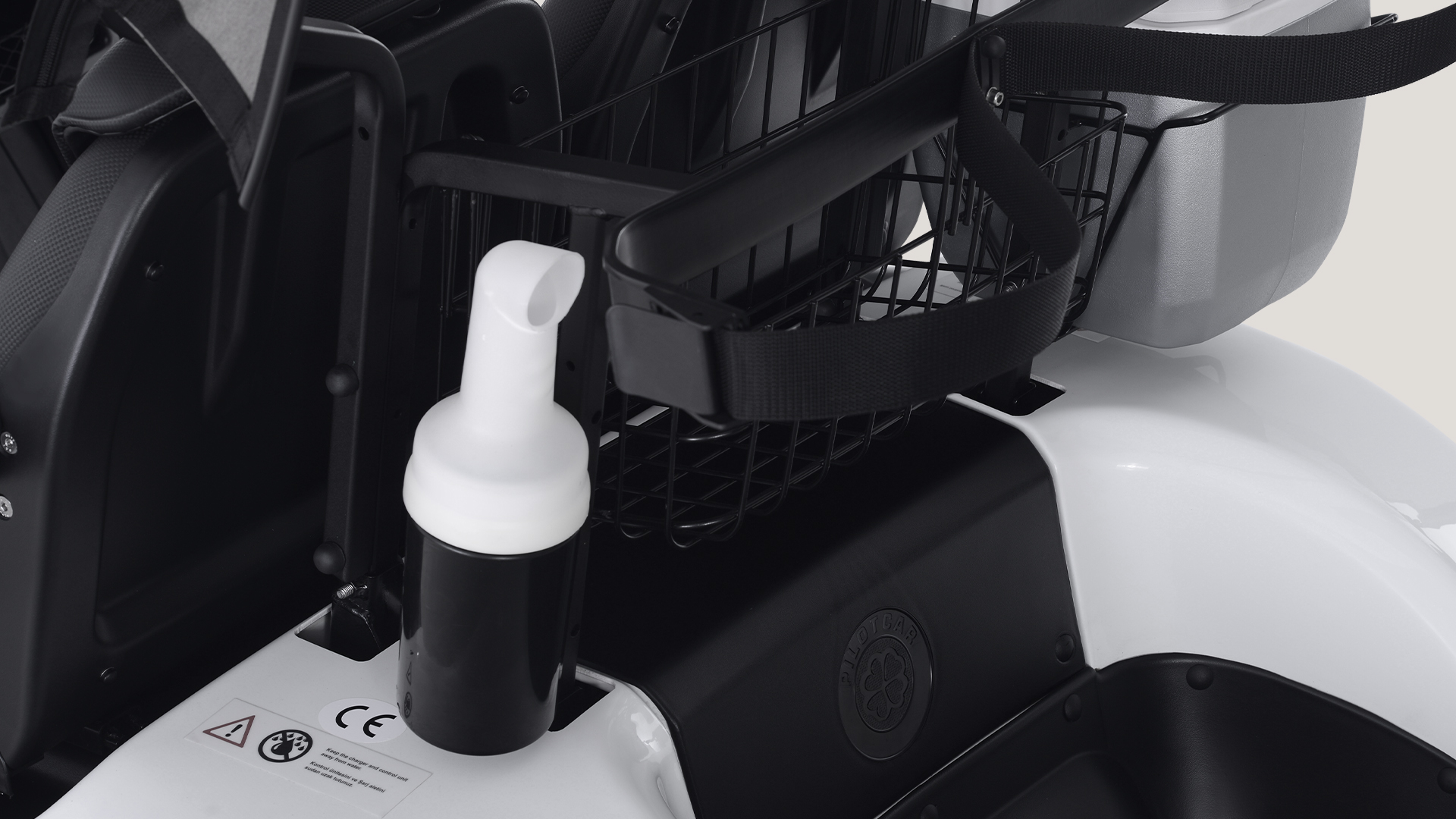

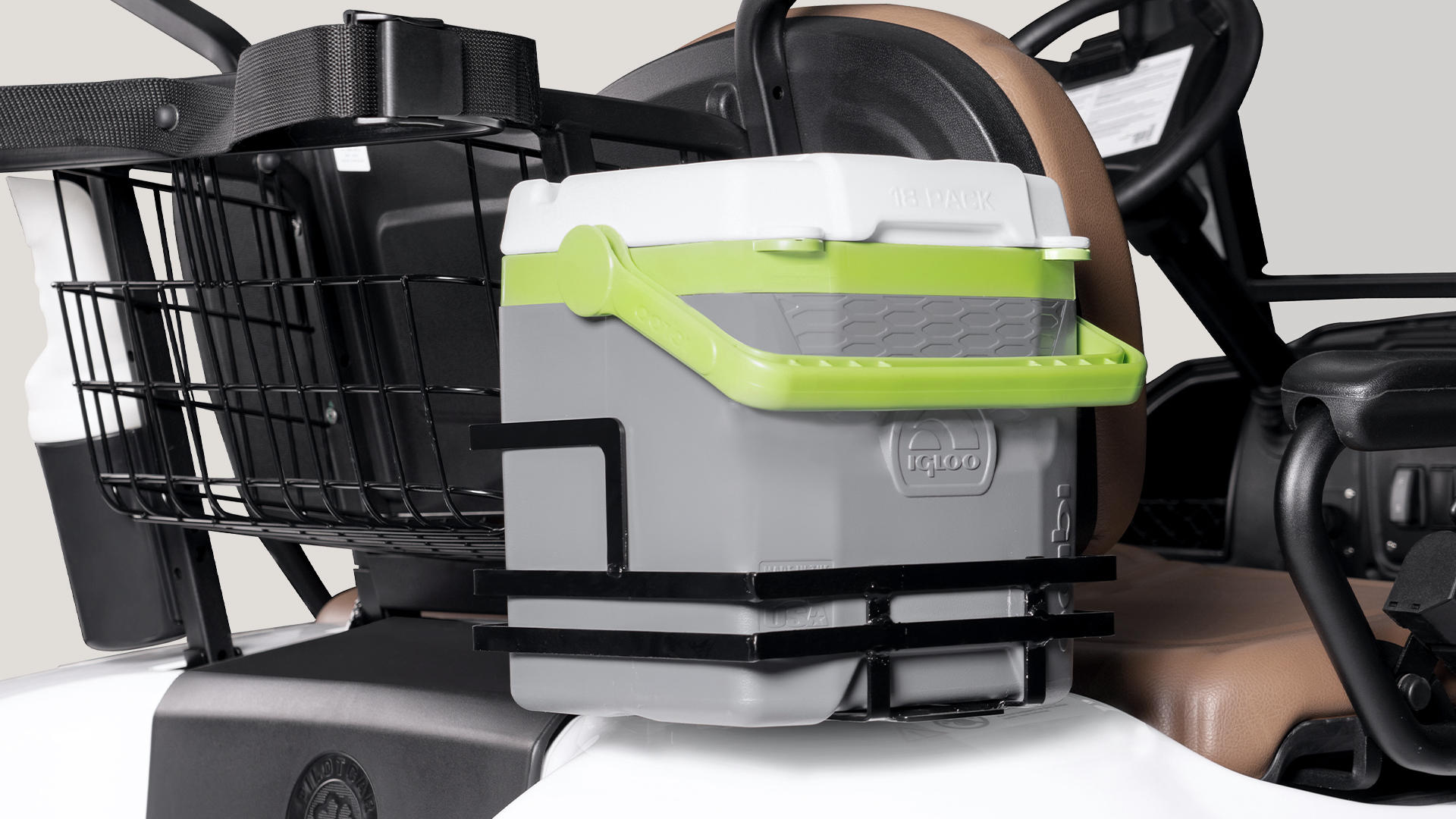

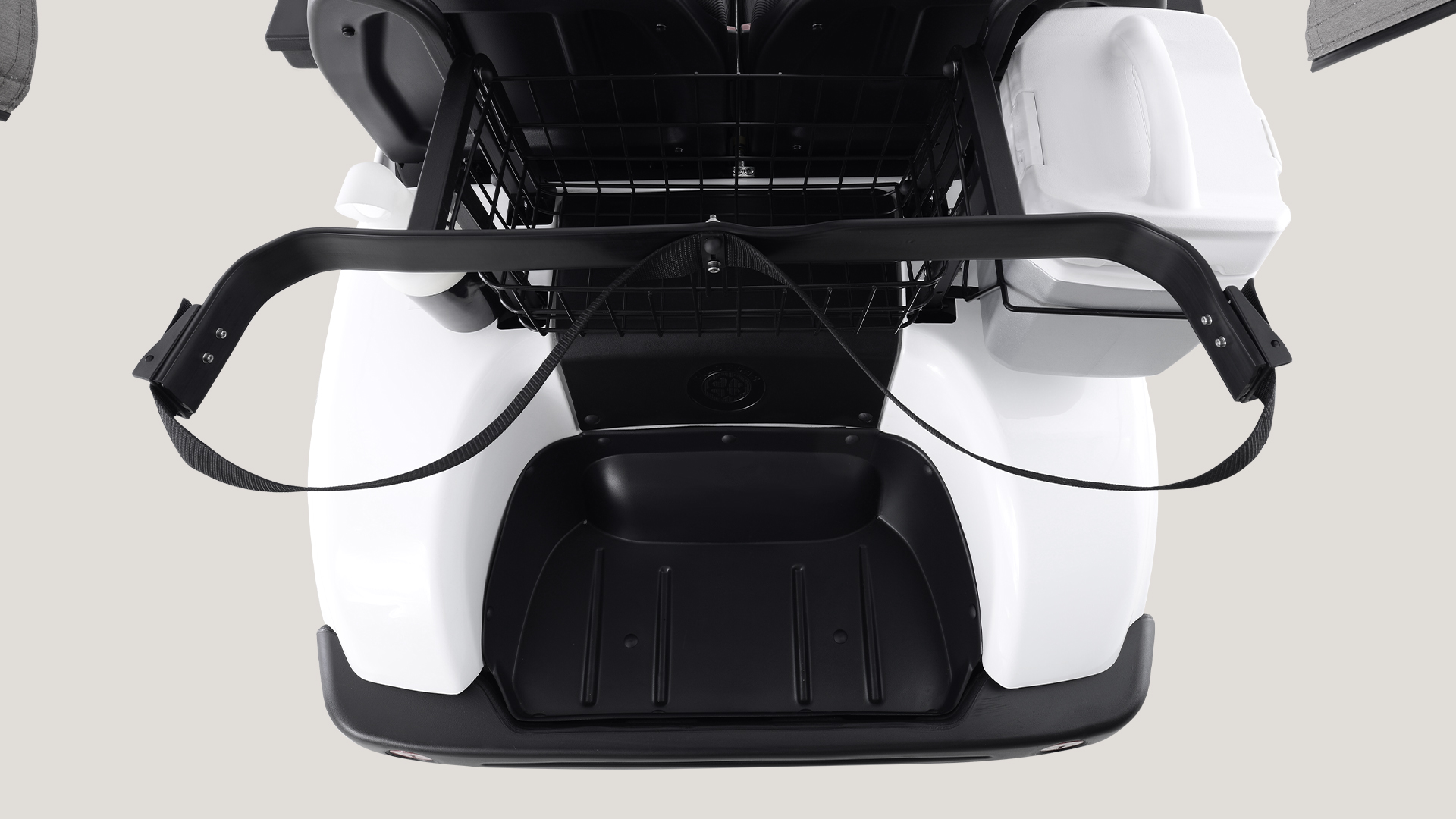

Golf Equipment
Tyres & Wheels

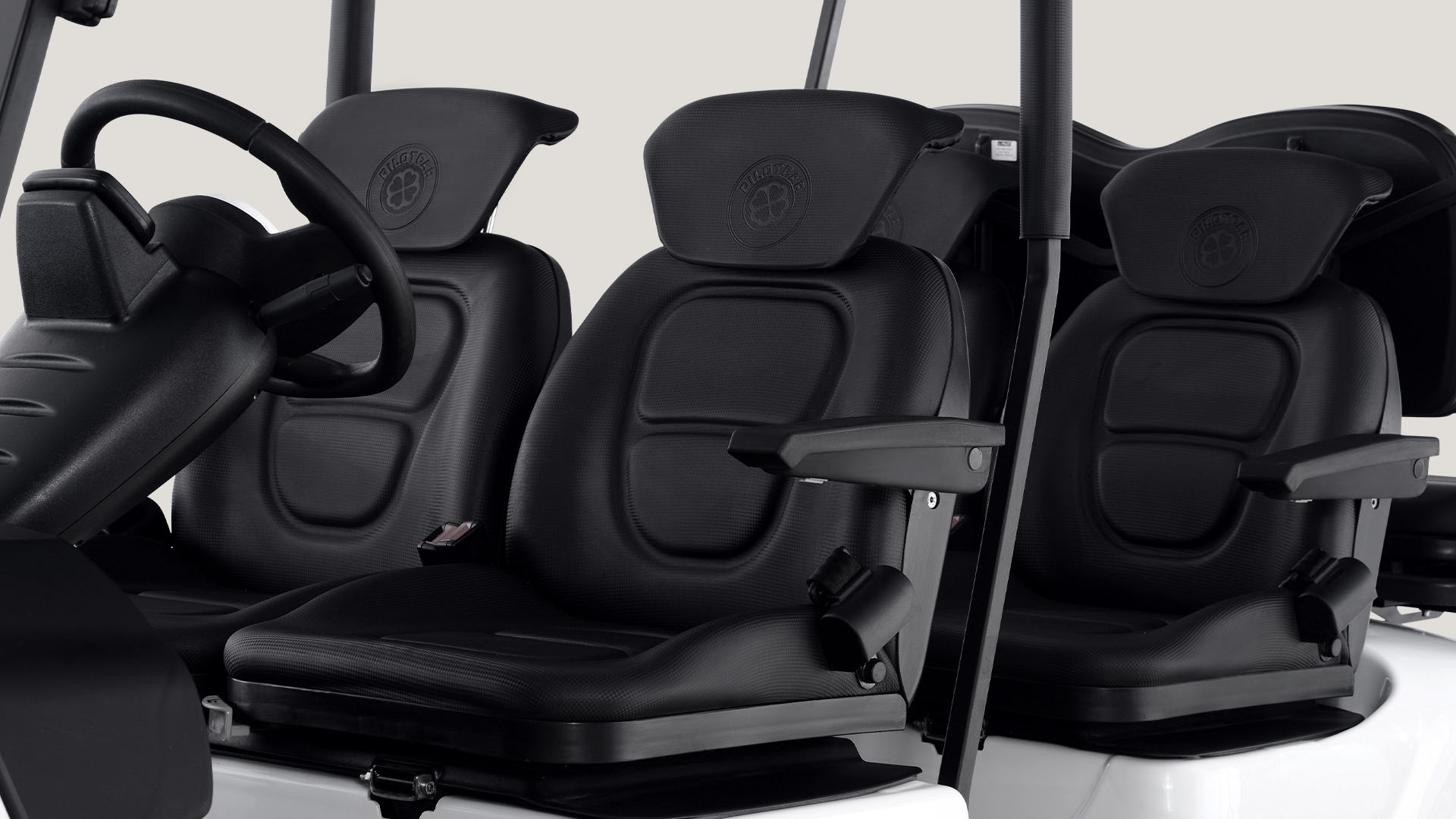

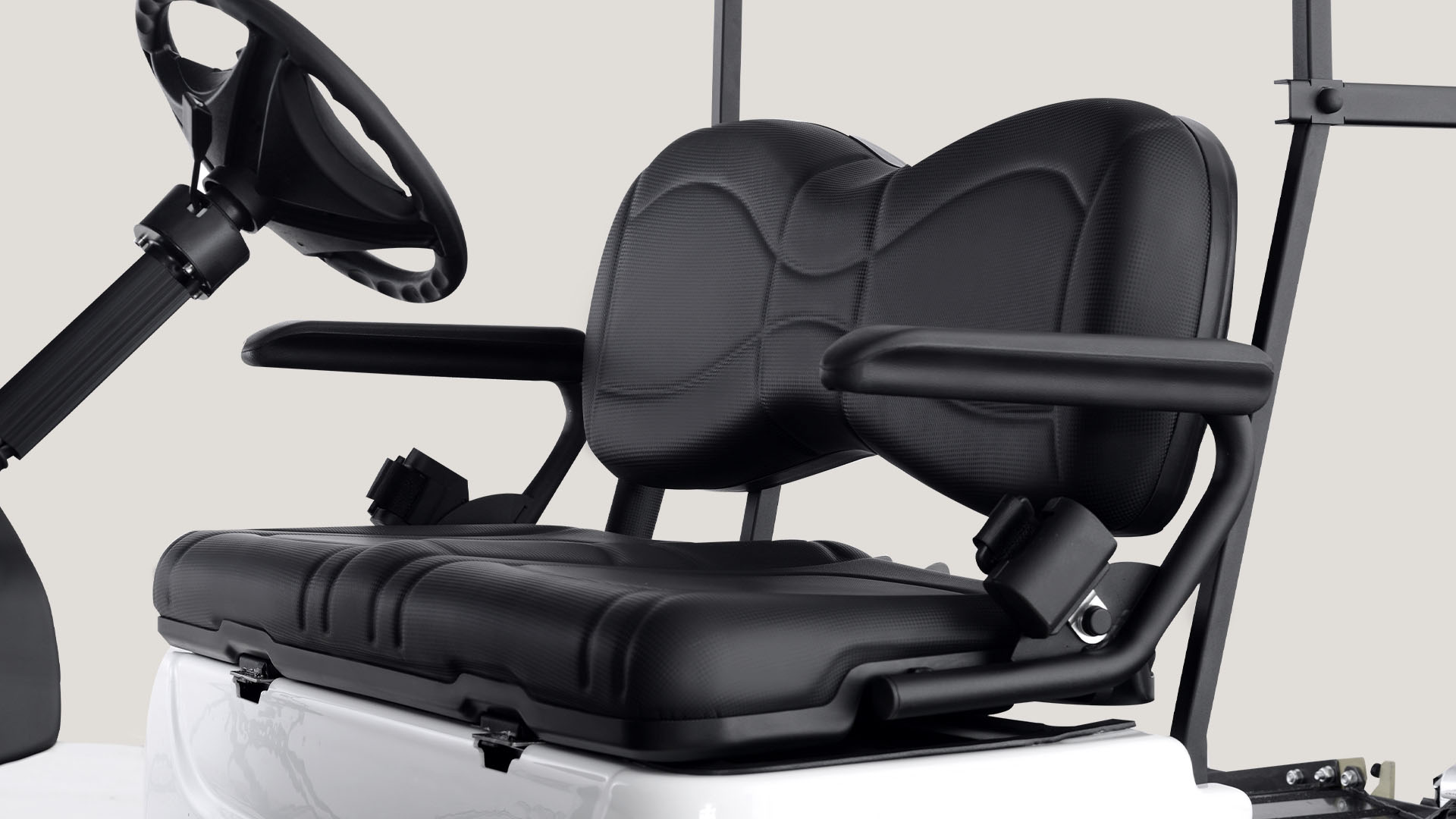

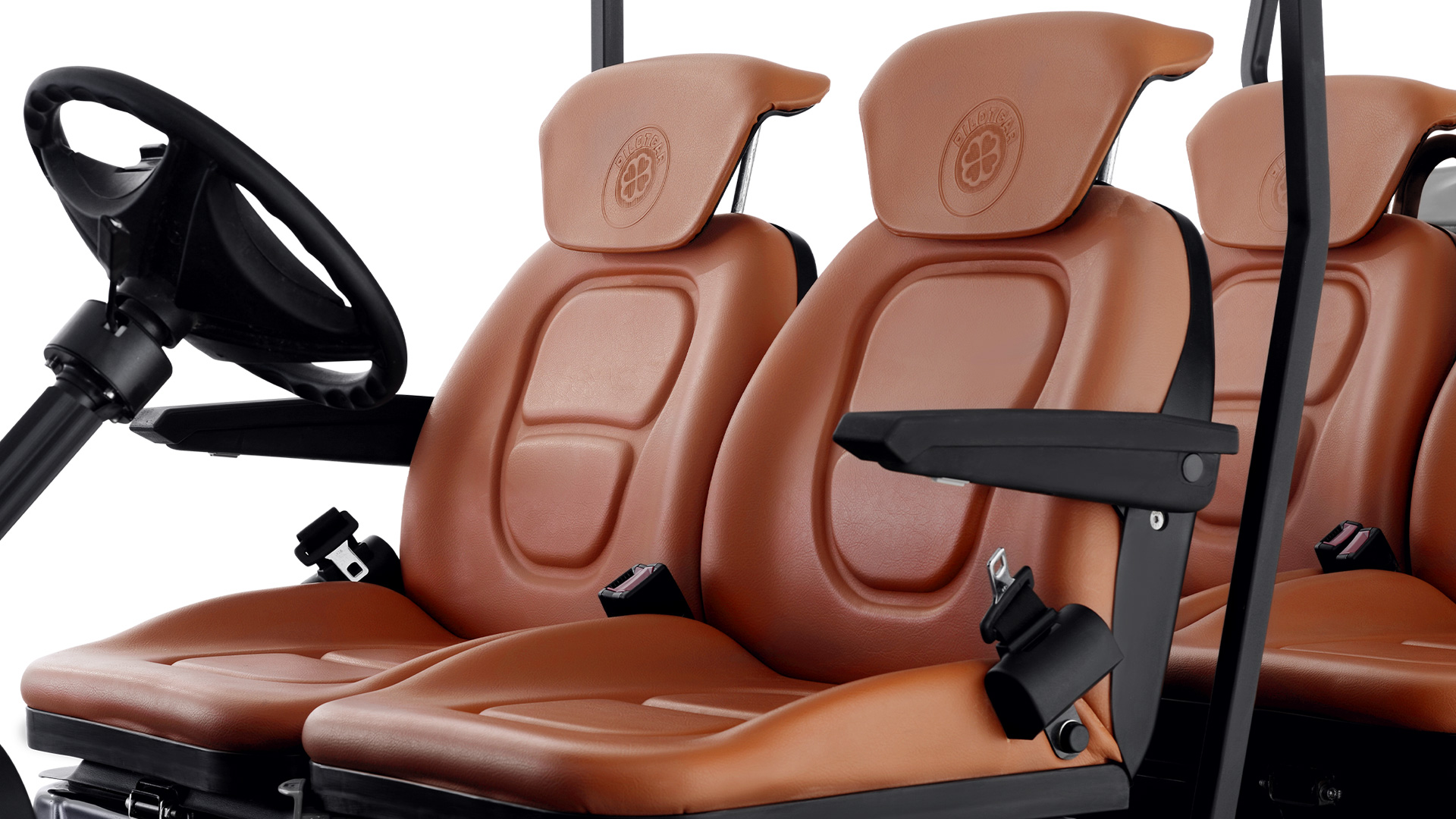

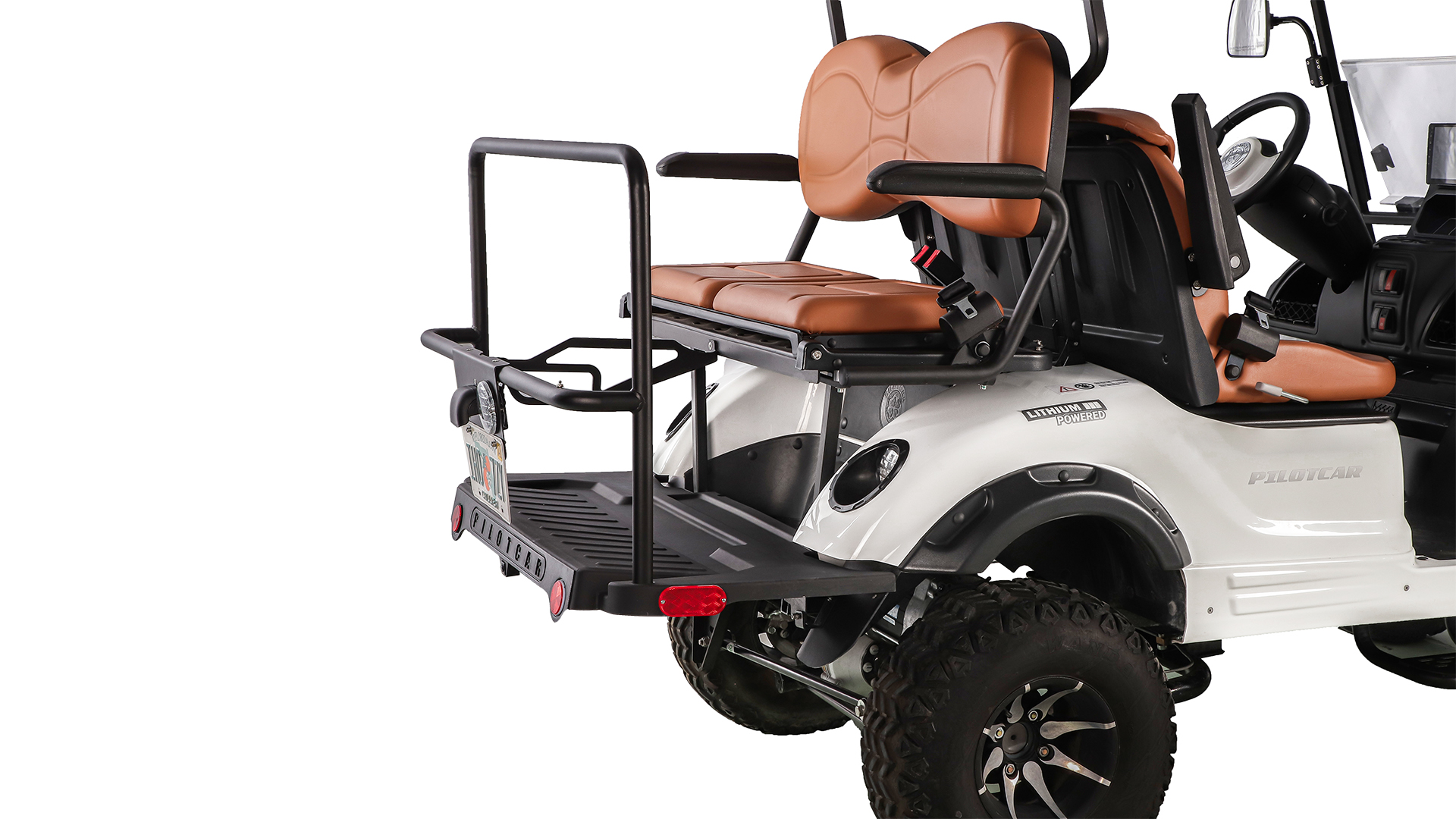

Seat

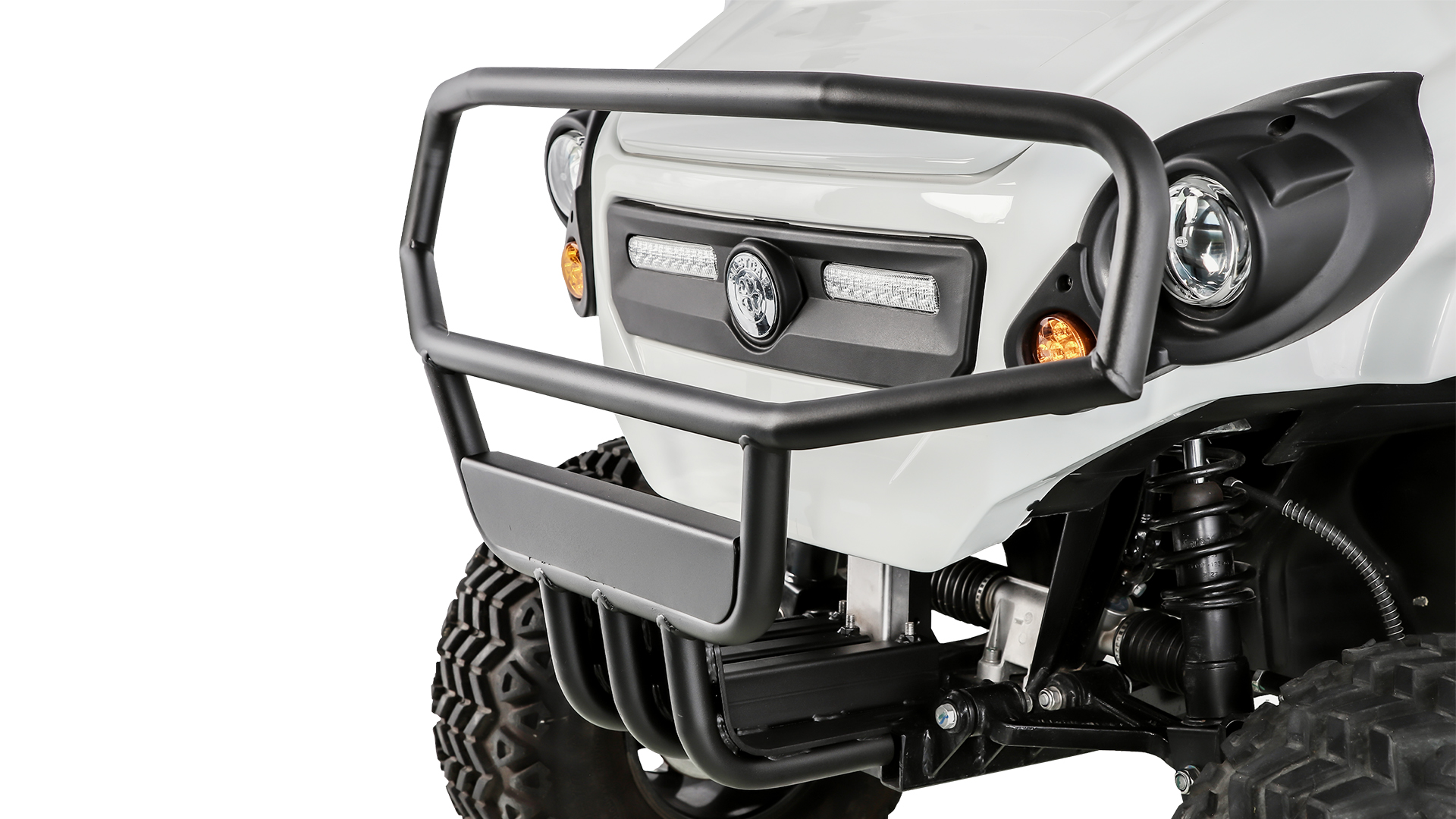

Off-Road Equipment

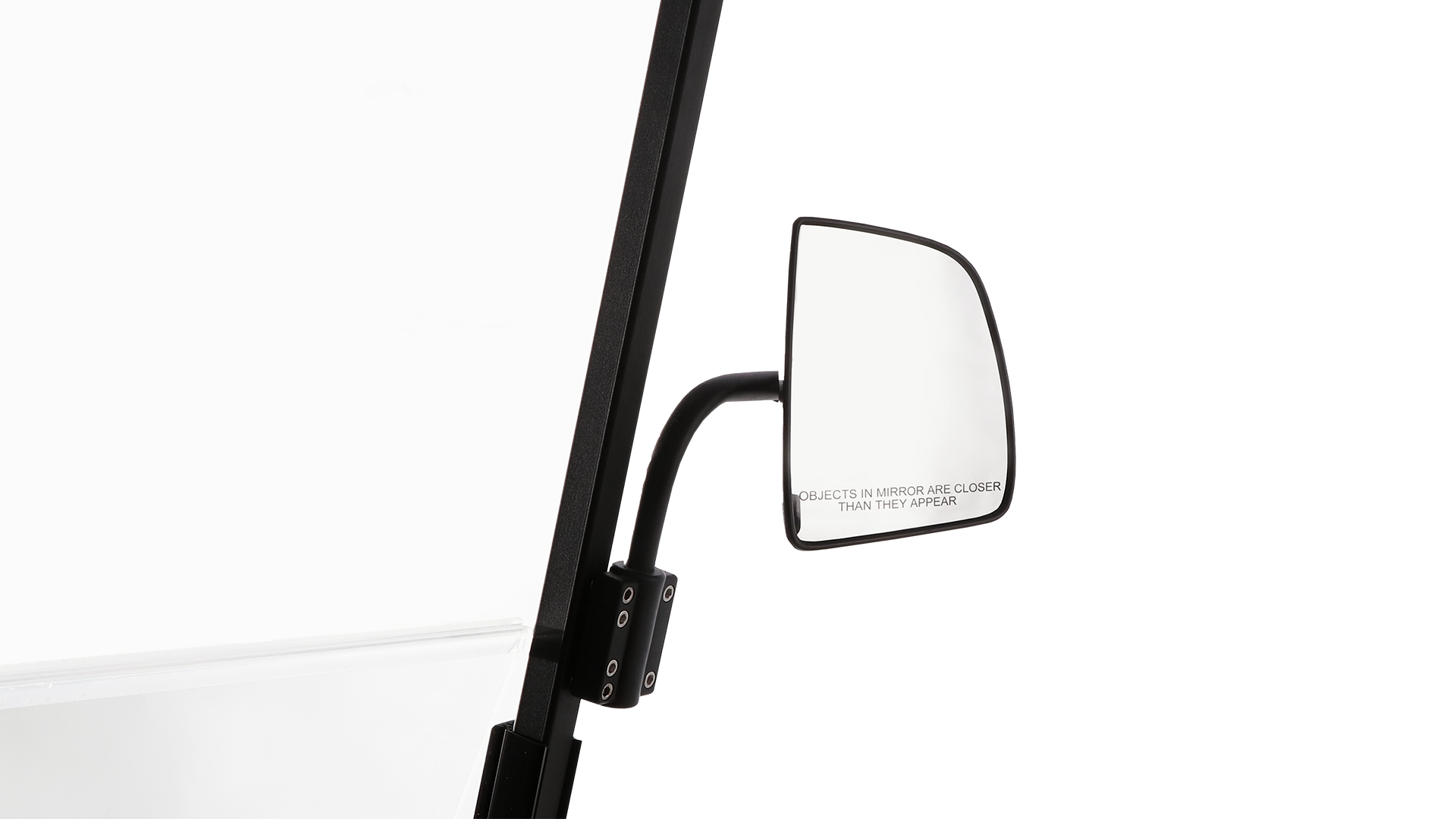

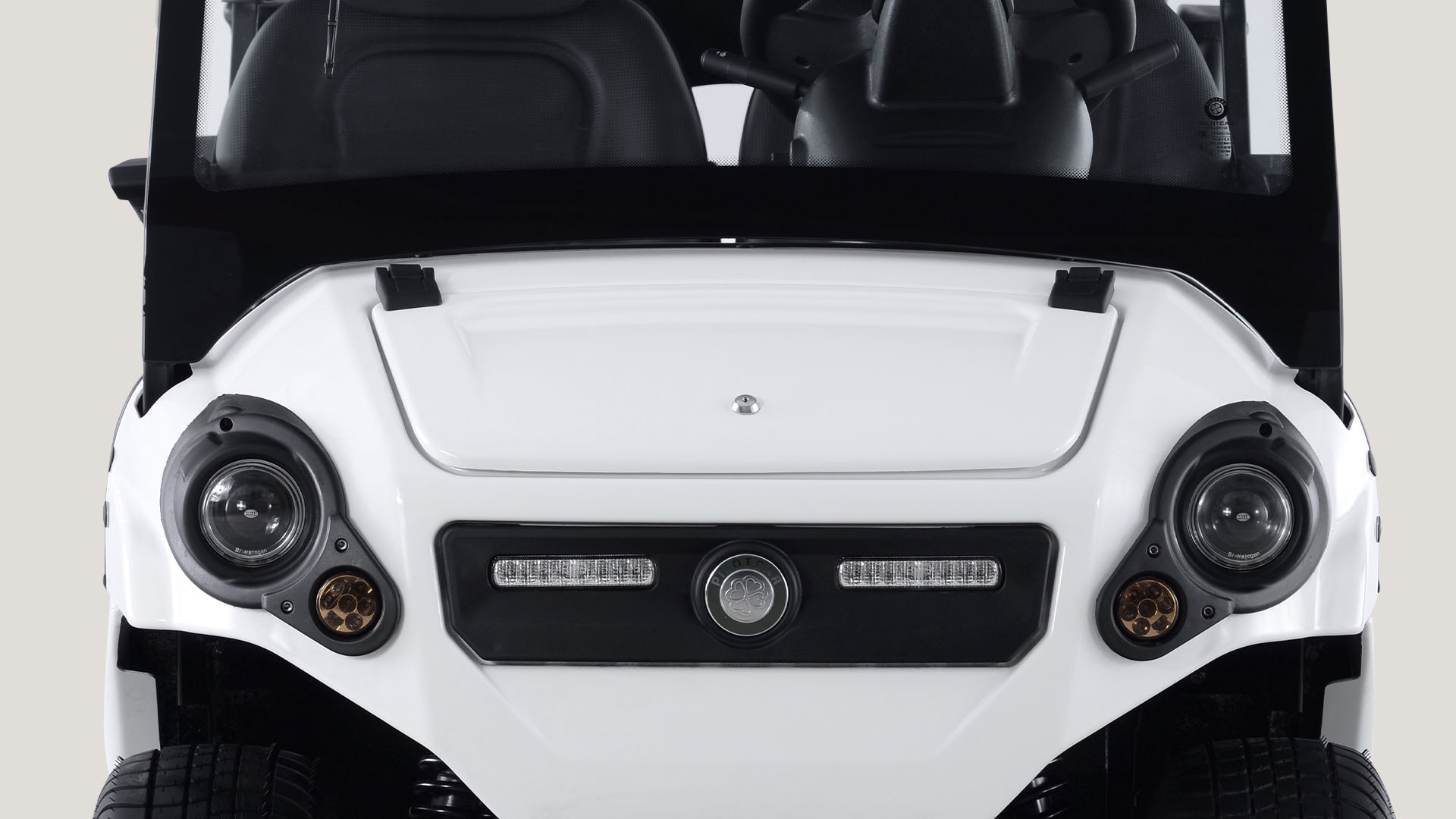

Body

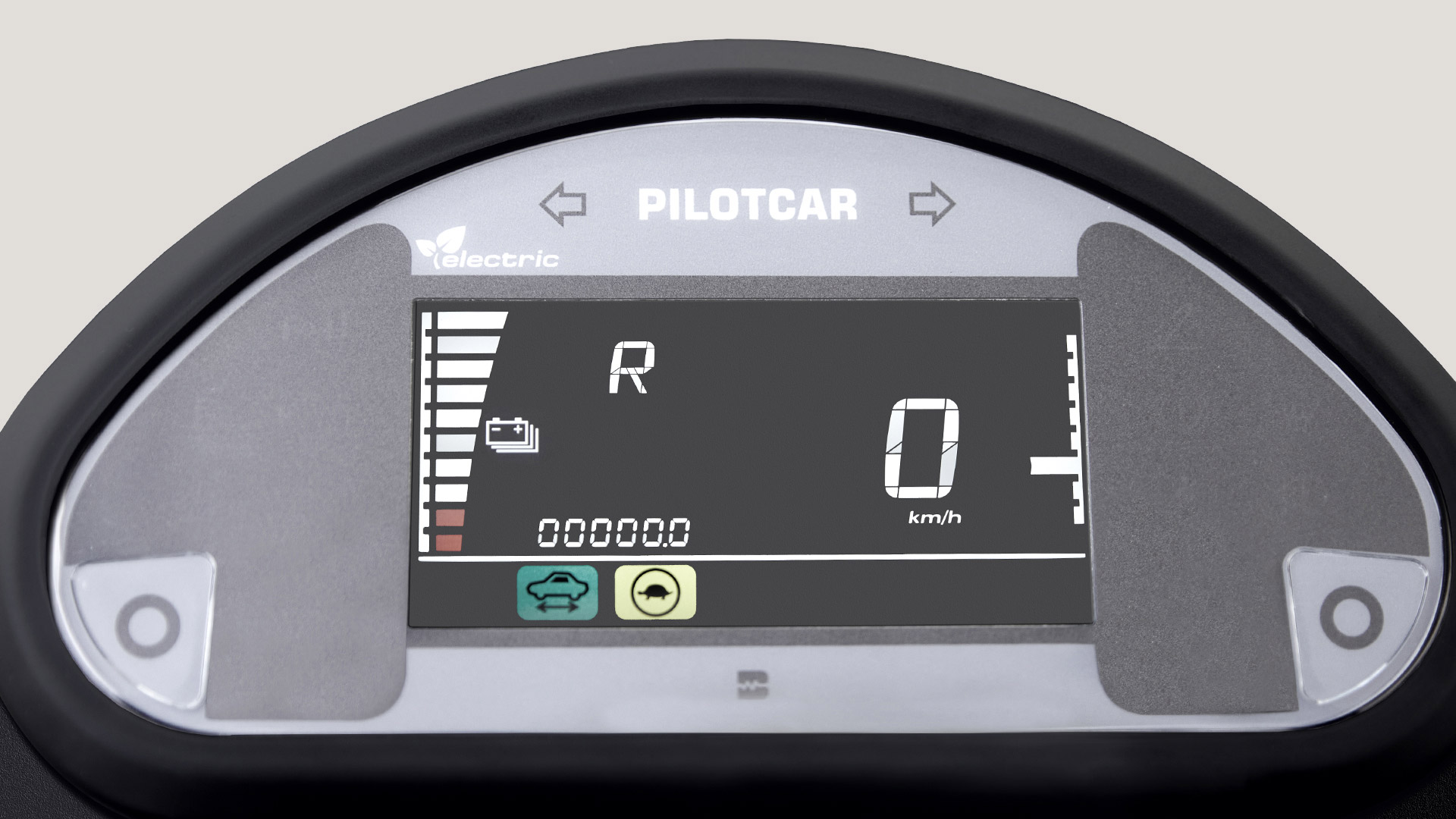

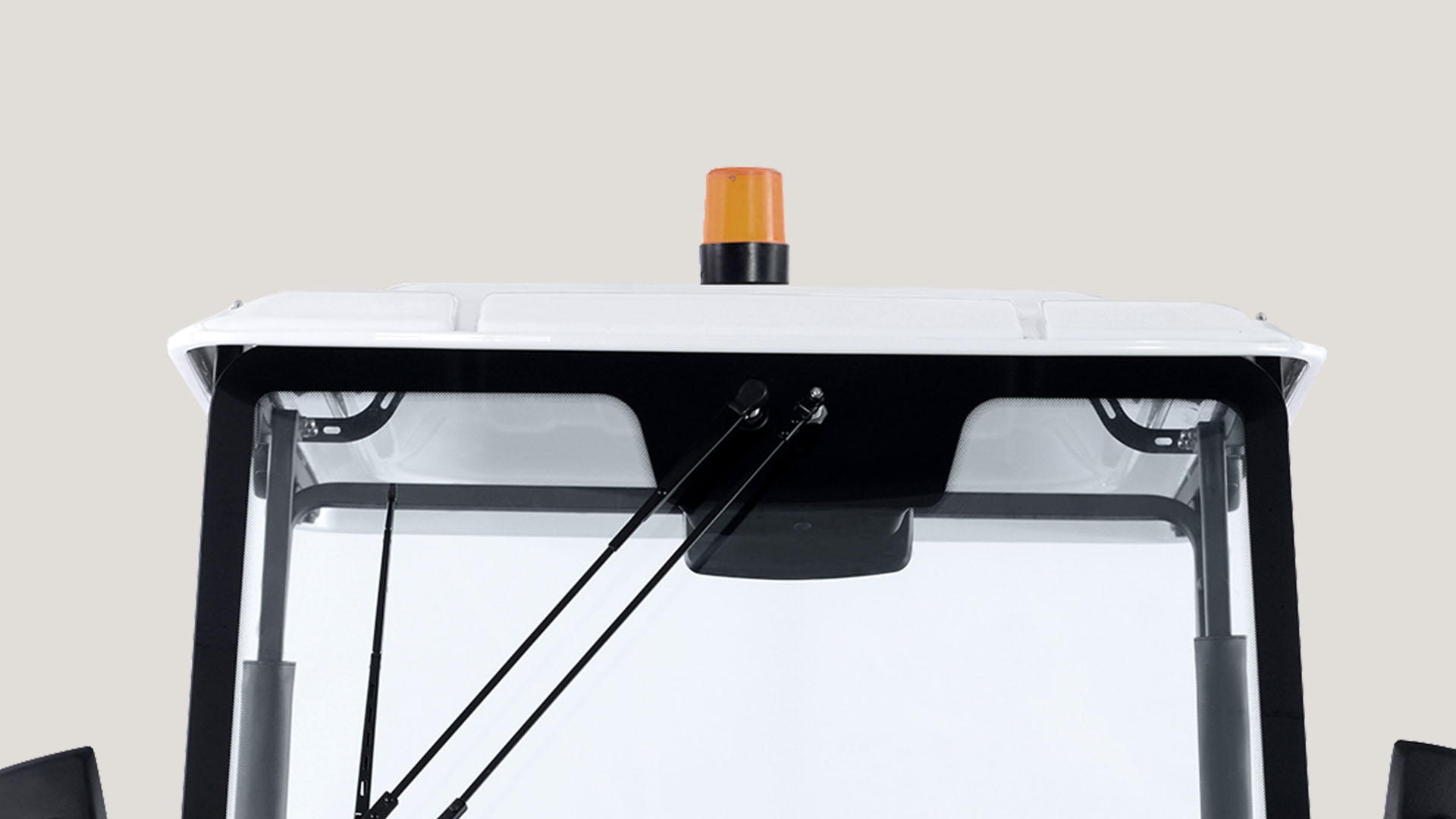

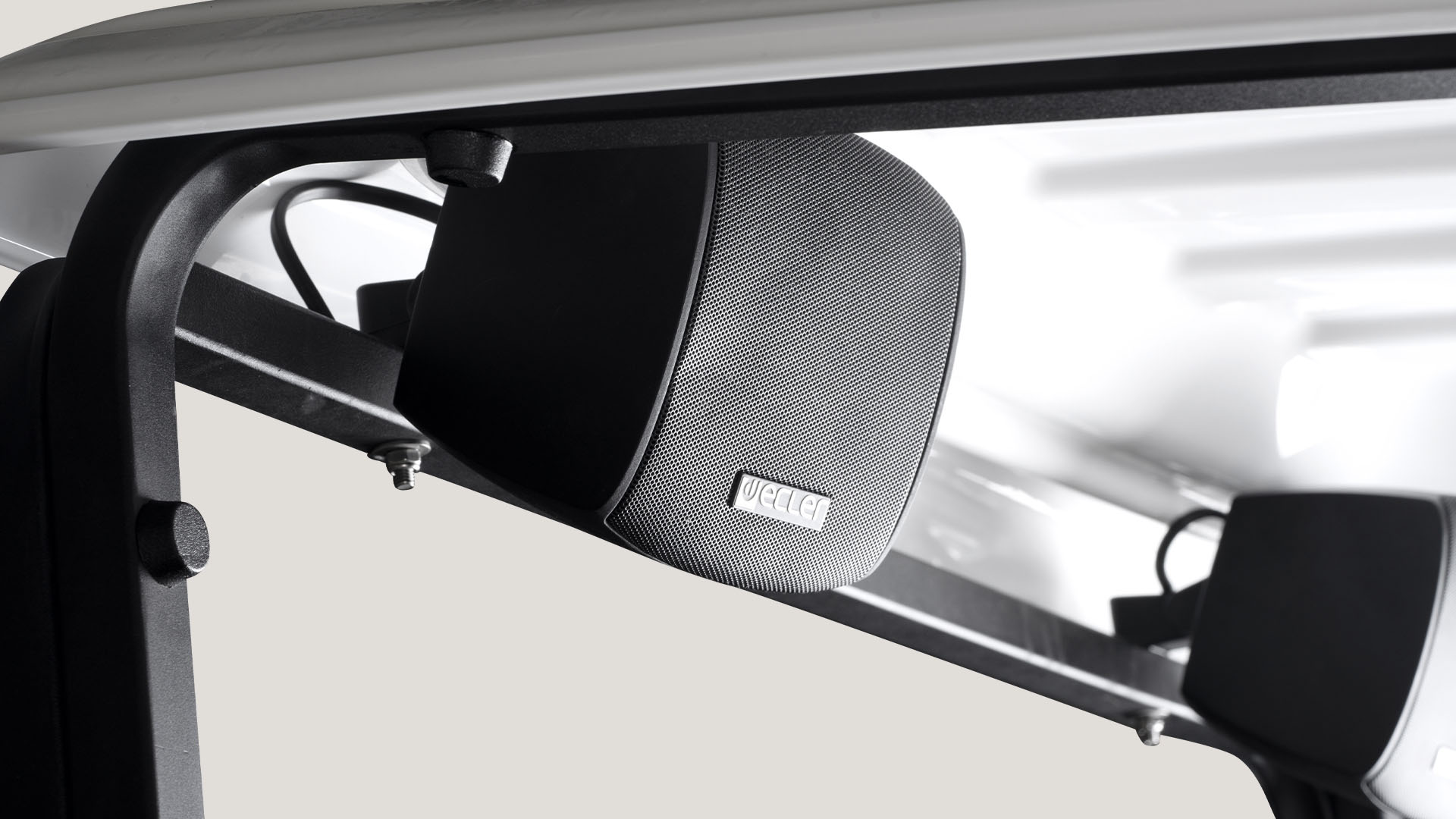

Technology & Safety

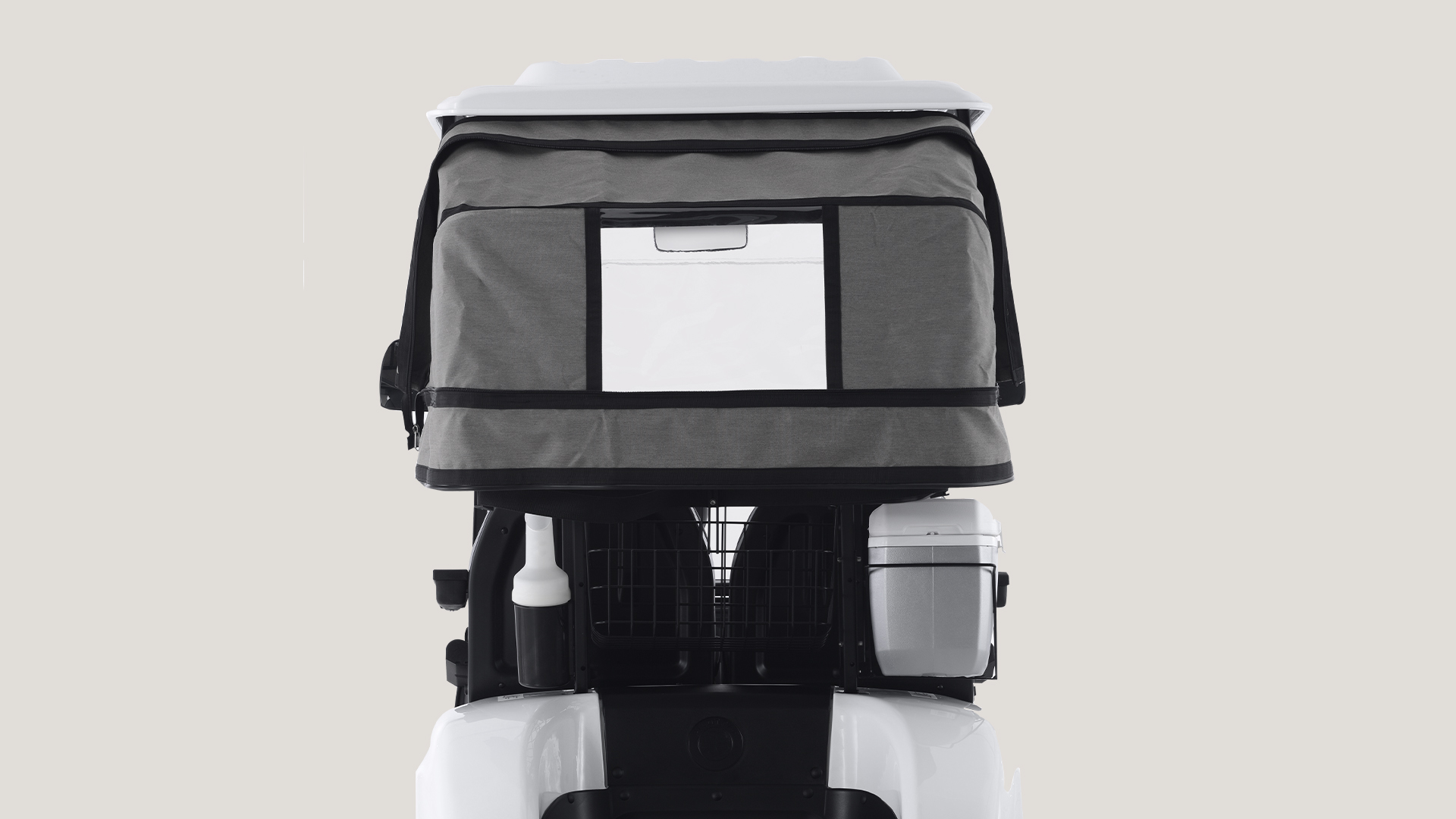

Golf Equipment

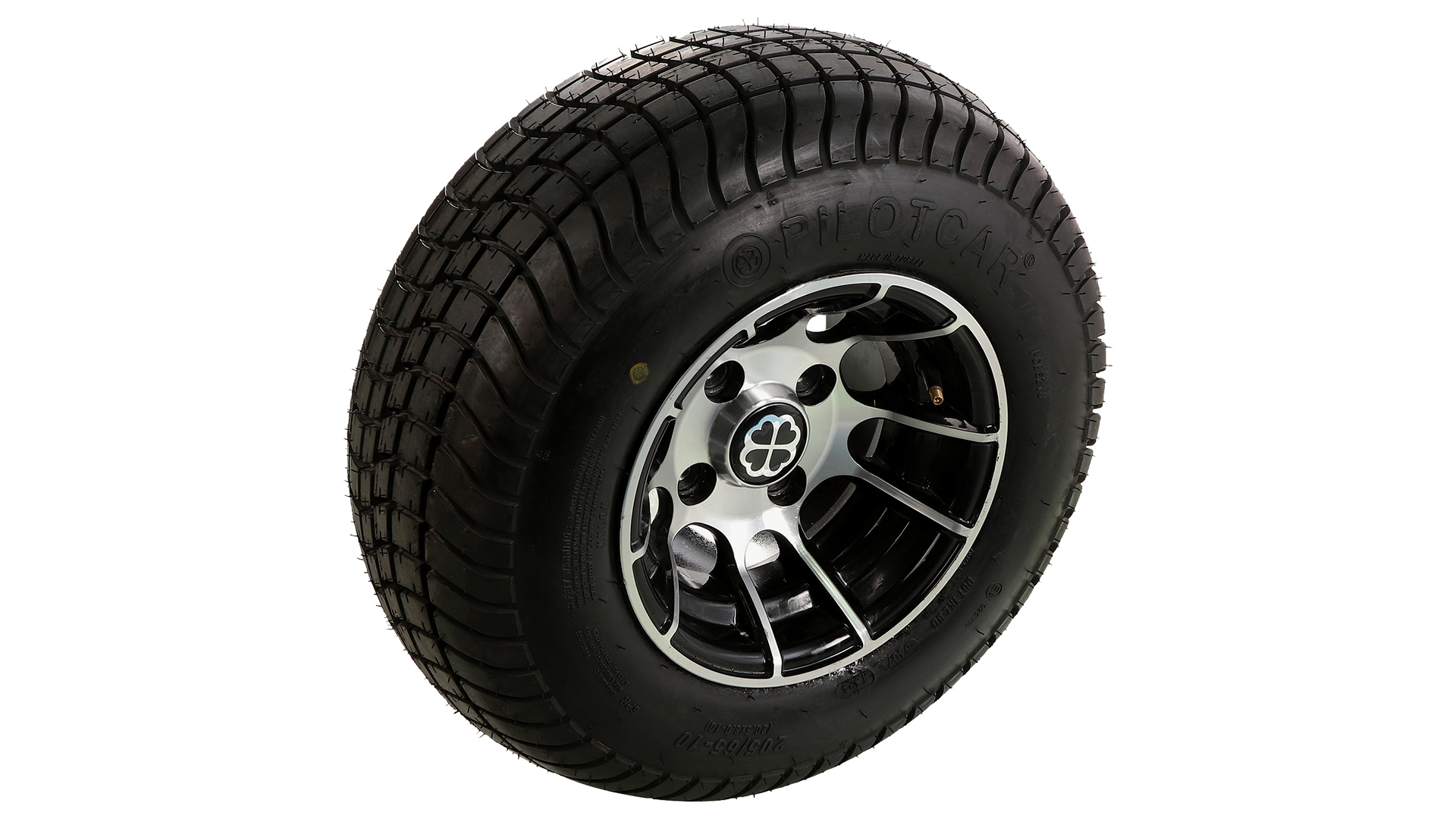

Tyres & Wheels

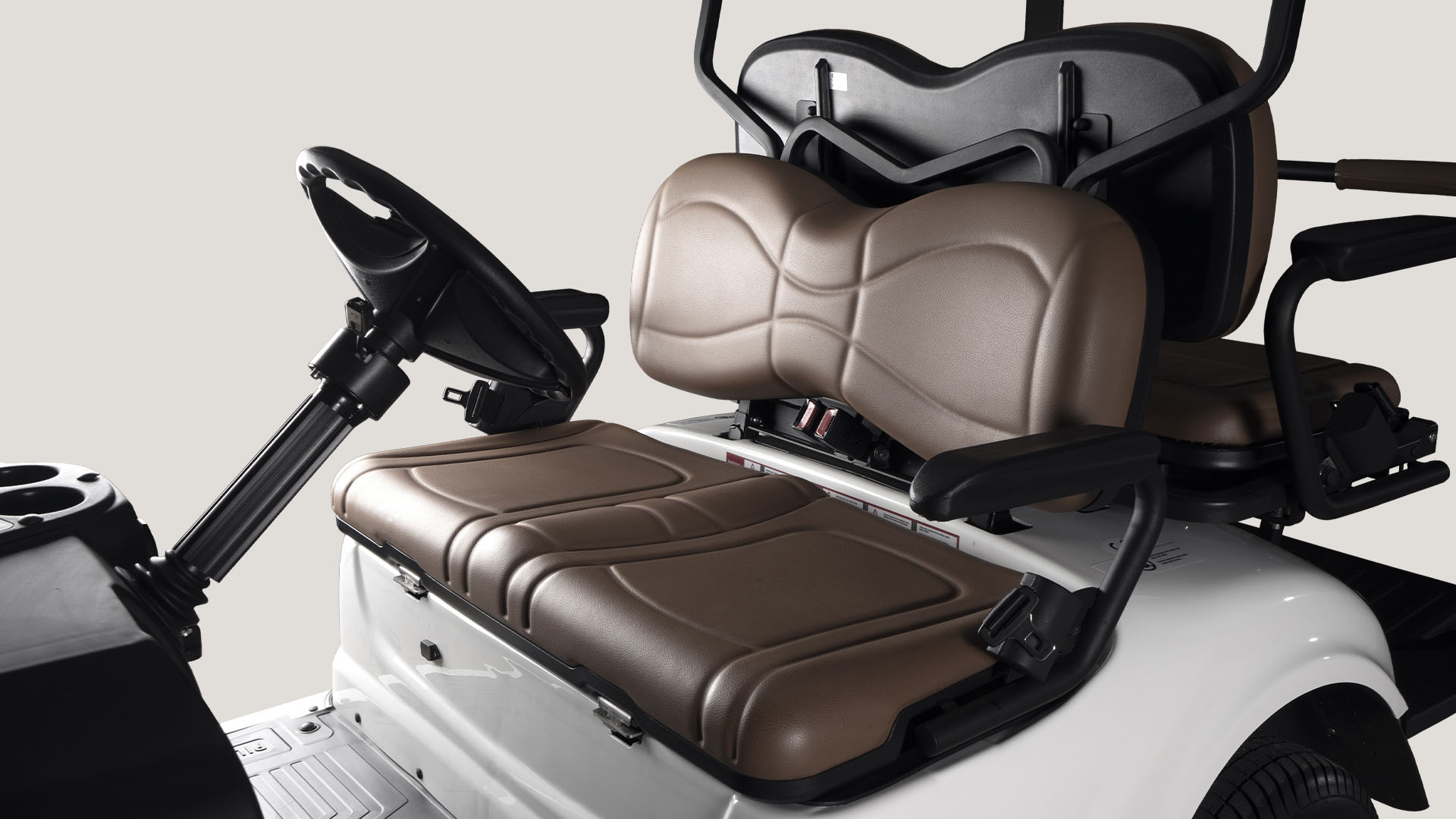

Seat

Off-Road Equipment
