PC-A

  • Performance
    Performance

    Max. Speed 30 km/h

  • Range
    Range

    90 km

  • "0" Emission
    "0" Emission

    100% Electric

Test Drive Price Request

ALWAYS READY TO HELP

With its easy and practical handling, speed and maneuverability, the PC-A has been specially designed to provide the fastest response in emergency situations.

PC-A Technical Specifications

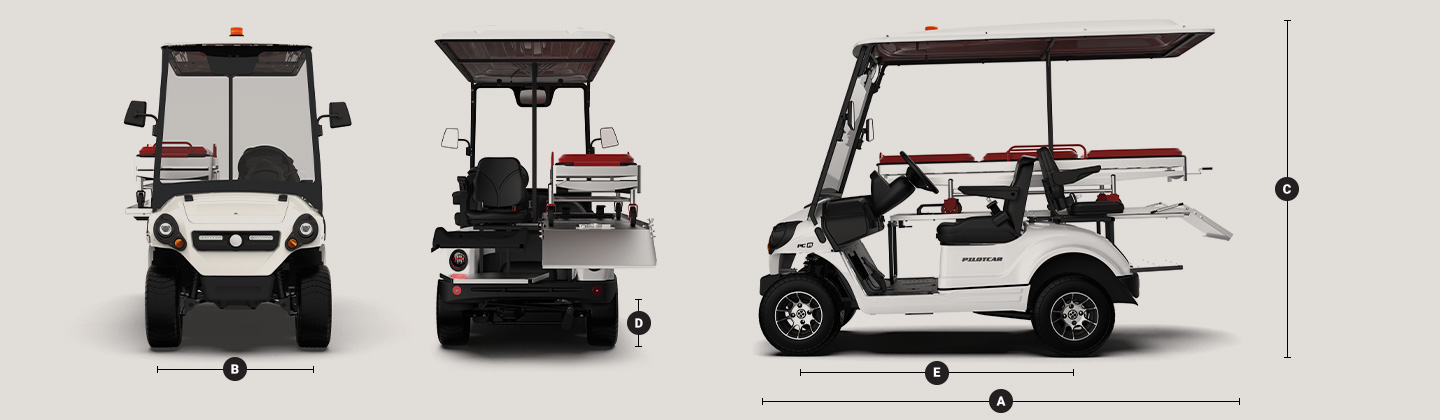

Dimensions

PC-A

2775 mm
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​(109,2 In)

1360 mm
(53,5 In)

  • 2015 mm
    (79,3 In)
    (w/ Suntop)
  • 1200 mm
    (47,2 In)
    (w/o Suntop)

110 mm
(4,3 In)

1640 mm
(64,5 In)

Power | Electricity-48 V (AC)

    • 4 kW (5.44 hp) Rated / 9.6 kW (13 hp) Peak
    • 6 kW (8.20 hp) Rated / 12.46 kW (16.95 hp) Peak
    • Lead-Acid Battery Package 6x8V (8.16 kWh)
    • Lithium Battery Package (10.8 kWh 5.4 kWh)

  • Lead-Acid Battery Package

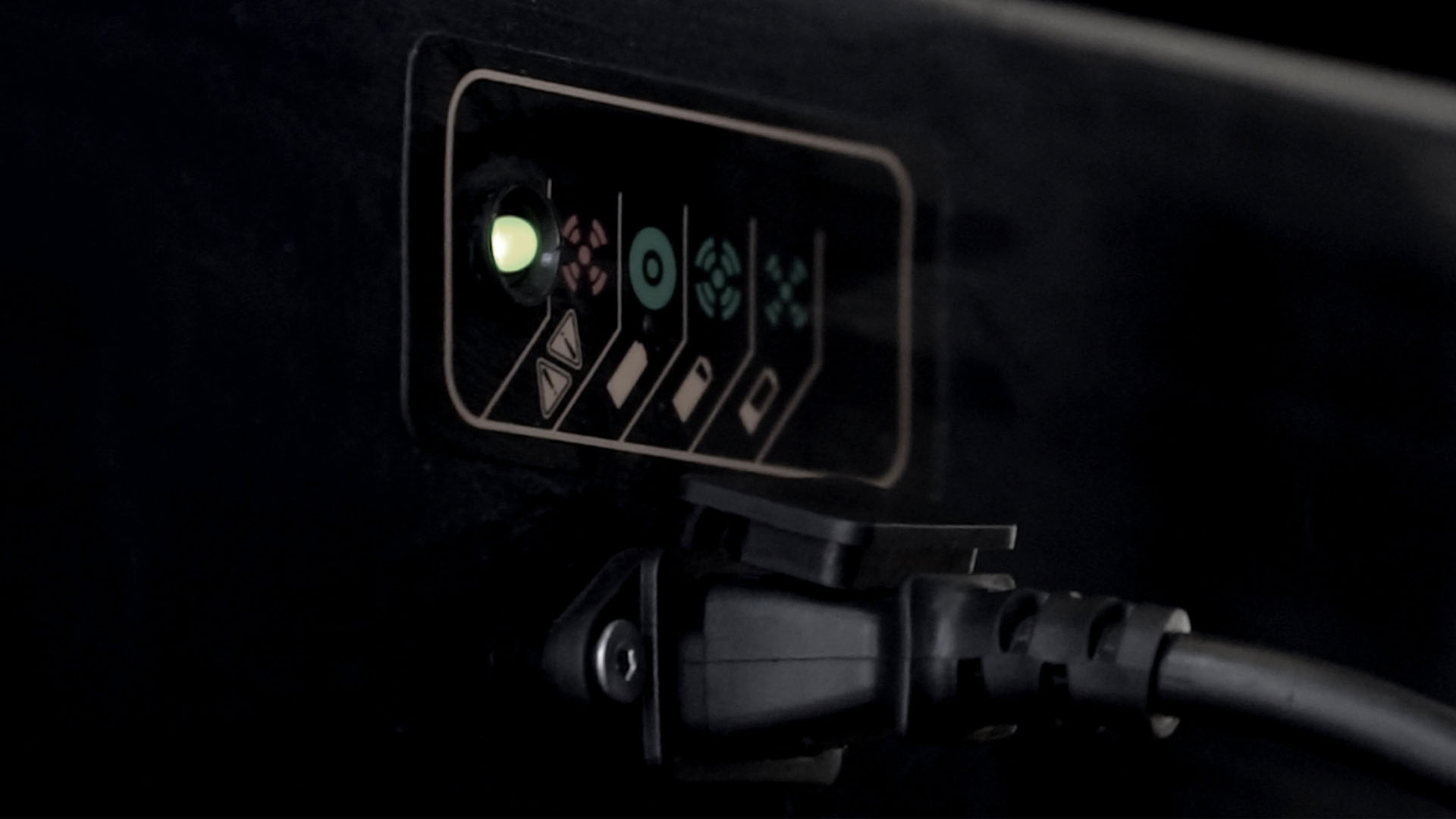

    • Onboard Charge Unit
      110-220 VAC@6A 1A/48V

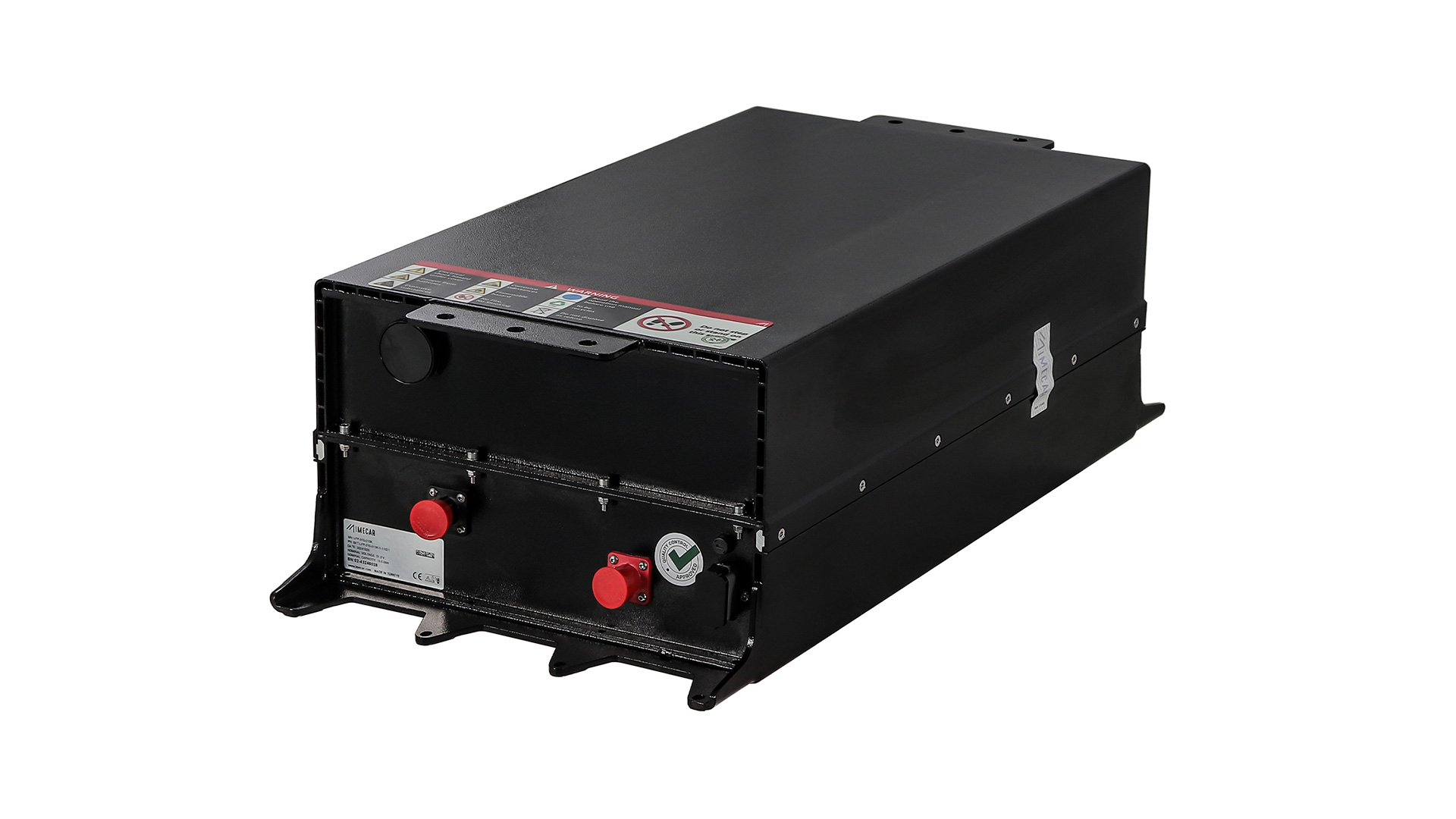

    Lithium Battery Package

    • 3.3 kW Onboard Charge Unit
      85-265 VAC@16 A 40A/48V

Performance

  • 24 km/h - 30 km/h*

  • 8 km/h
    • Lead-Acid Battery Package: 60 km**
    • Lithium Battery Package: 90 km**

  • 25%

  • Lead-Acid Battery Package
    %80 - 6 hrs
    %100 - 8 hrs
    Lithium Battery Package (10.8 kWh)
    %80 - 4 hrs
    %100 - 6 hrs

  • 3 m

Steering Wheel & Suspension System

  • Self-compensating, double reduction, no lubrication required
    helical rack and pinion
    Option: Electric Power Steering (EPS)

  • Fully independent MacPherson style strut suspension

  • Semi independent, swing arm with coil springs over
    hydraulic shock absorbers

Body & Chassis

  • Naturally colored Thermoplastic ABS
    White, Midnight Blue, Black, Special Color

  • Automotive style steel frame with high corrosion resistance
    Sanding / E-coating / Static Wet Paint / PVC Coating

Brake System

  • 4-wheel hydraulic drum brake system

  • Electromagnetic parking brake

General

  • Lead-Acid Battery Package: 561 kg*
    Lithium Battery Package: 492 kg*

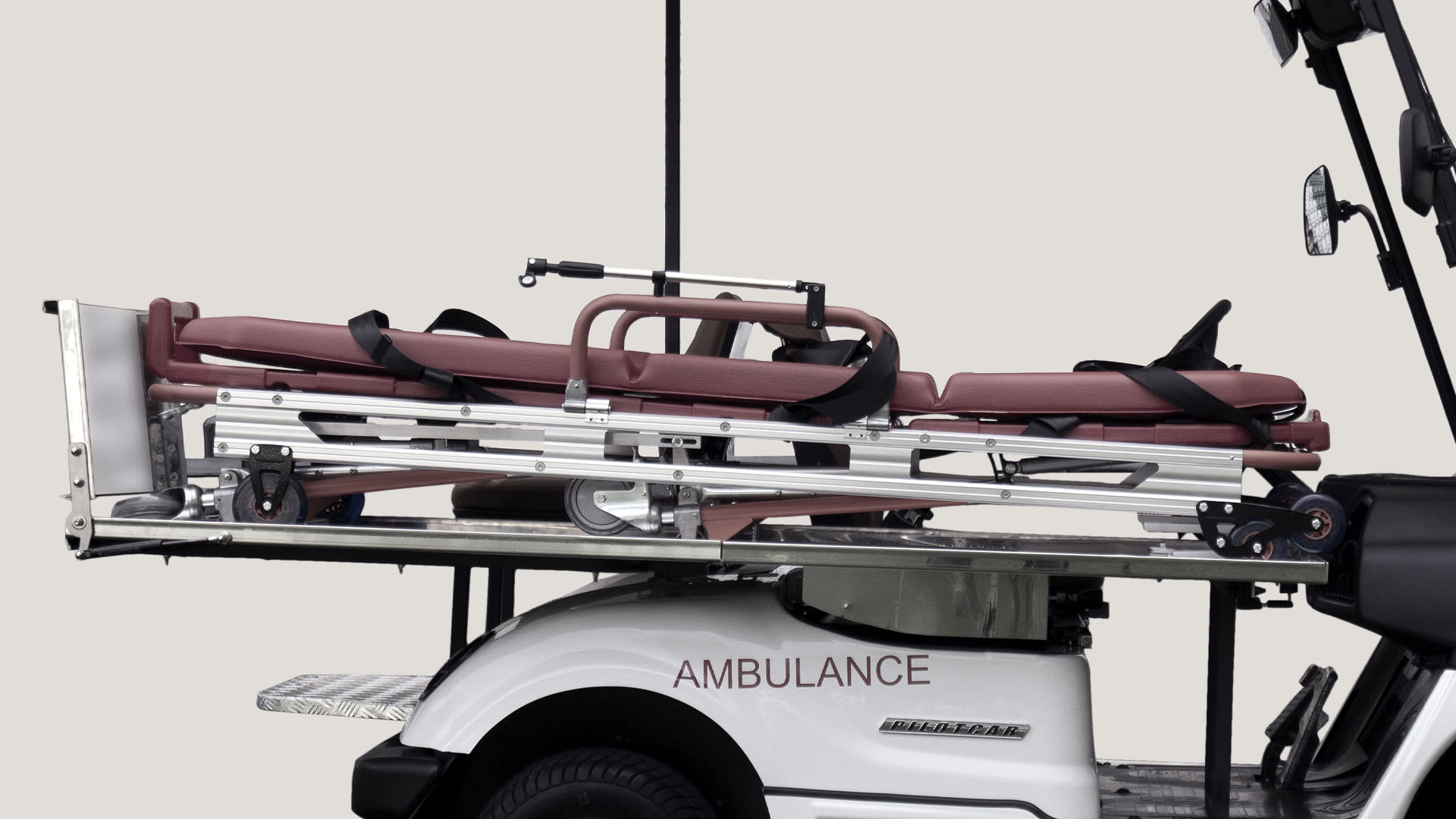

    • 1+1 Passenger - Stretcher

  • 300 kg

  • -

  • 20.5 x 8-10 (6 ply)

Warranty

  • 2 years full warranty (Except wearable items)
    5 years limited warranty (Motor and motor control unit)
    70% performance at min. 2500 cycles for lithium battery package

OPTIONS

All you need to do is examine the vehicle options and accessories in detail.

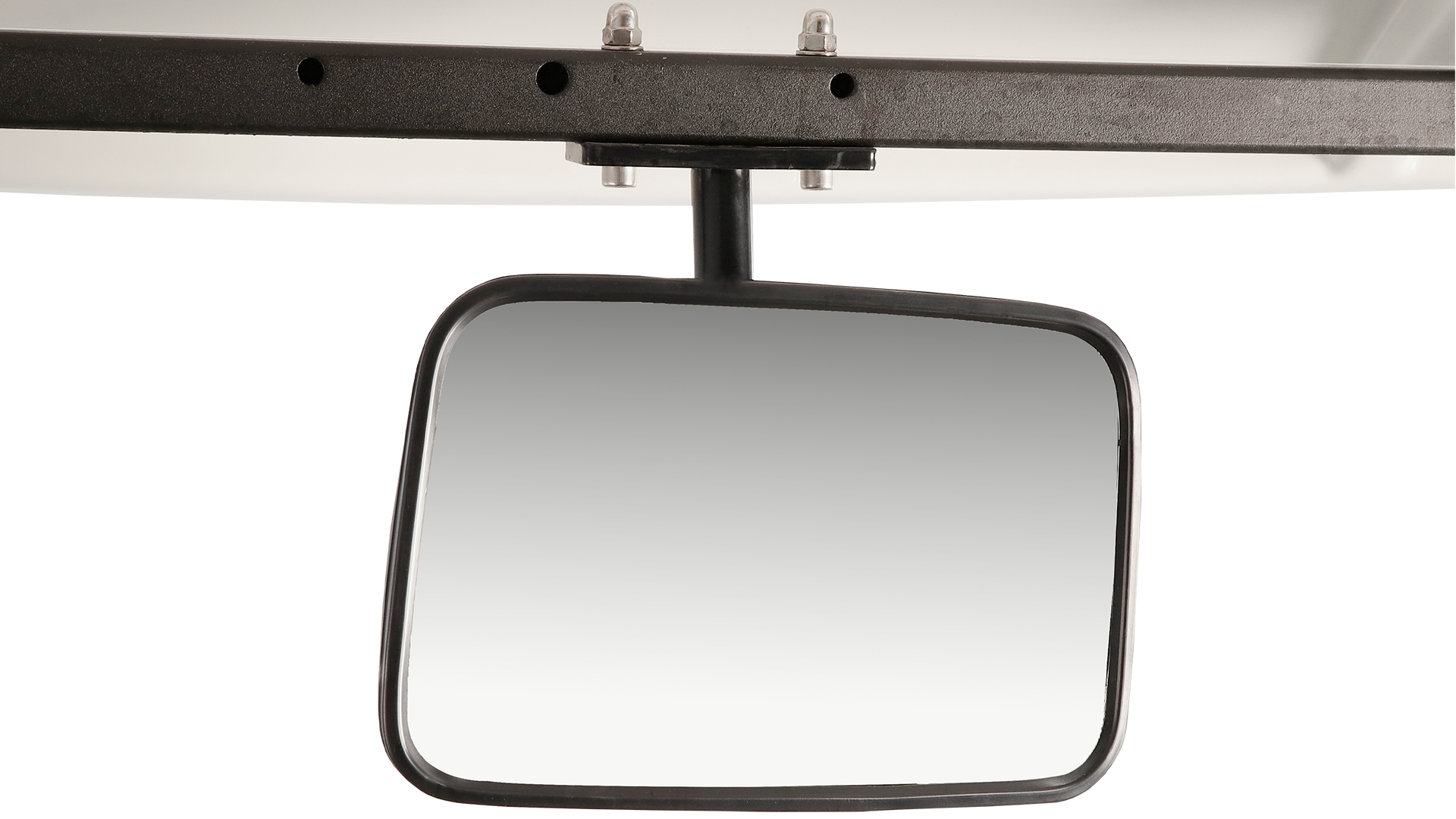

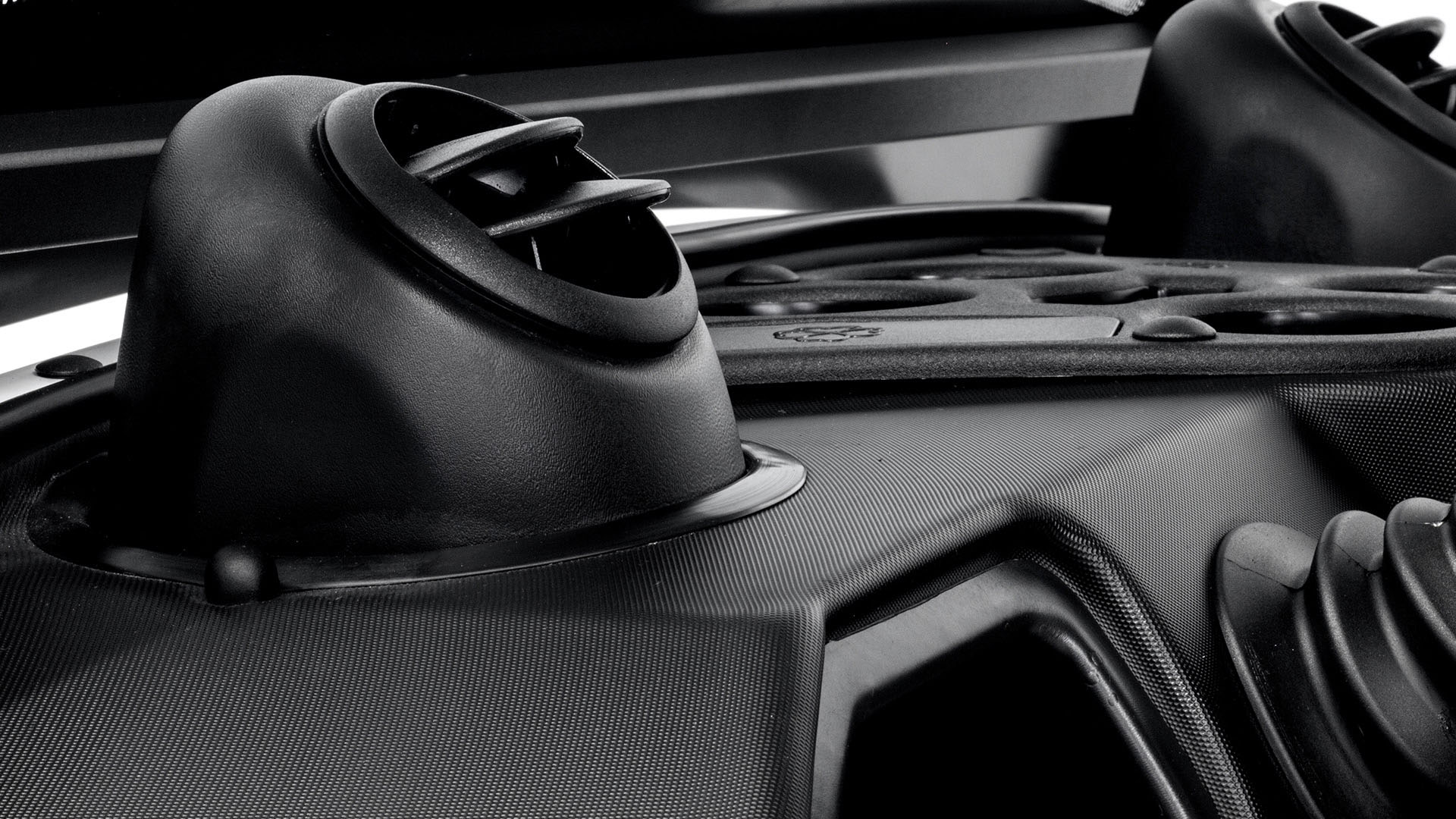

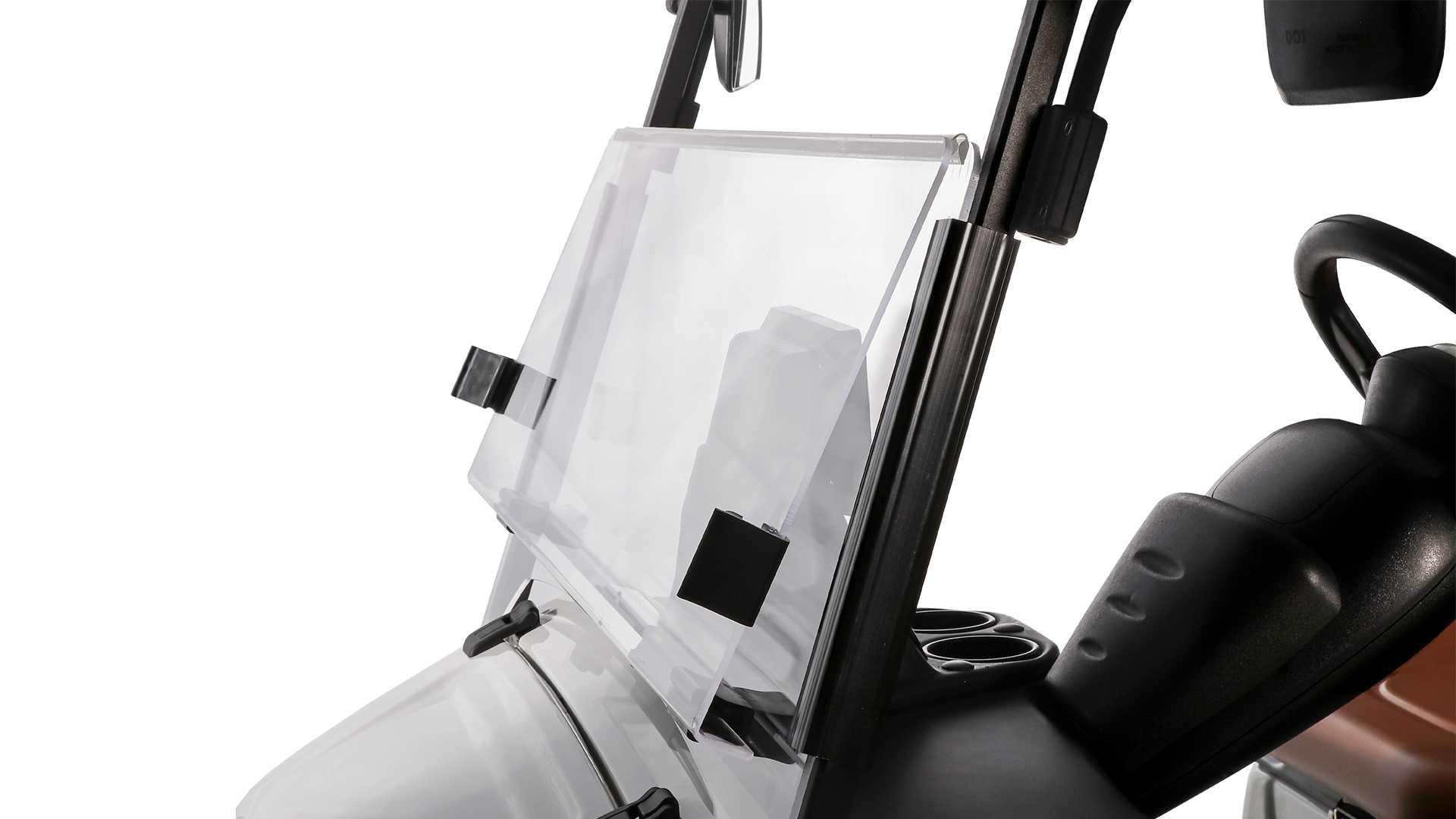

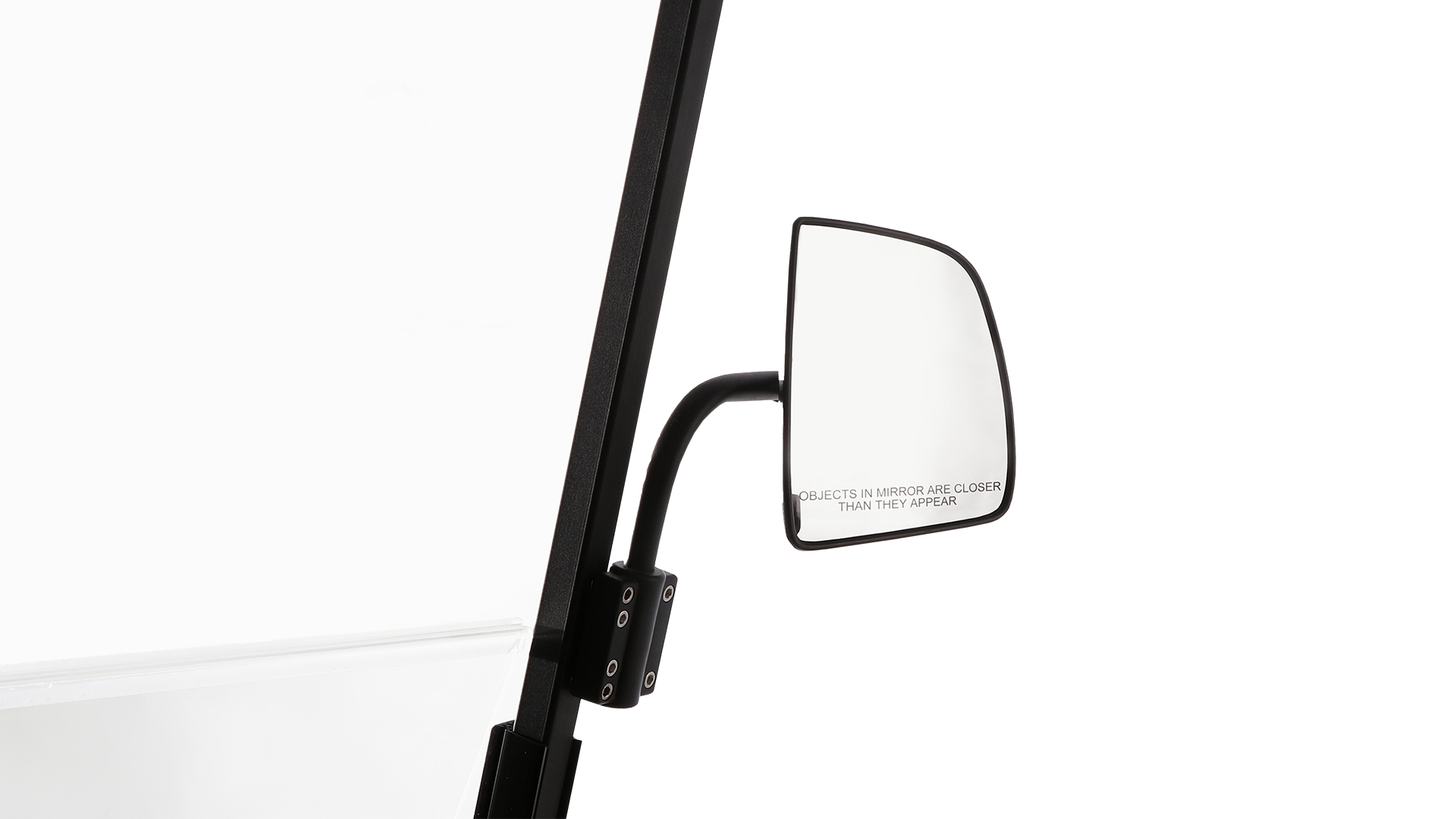

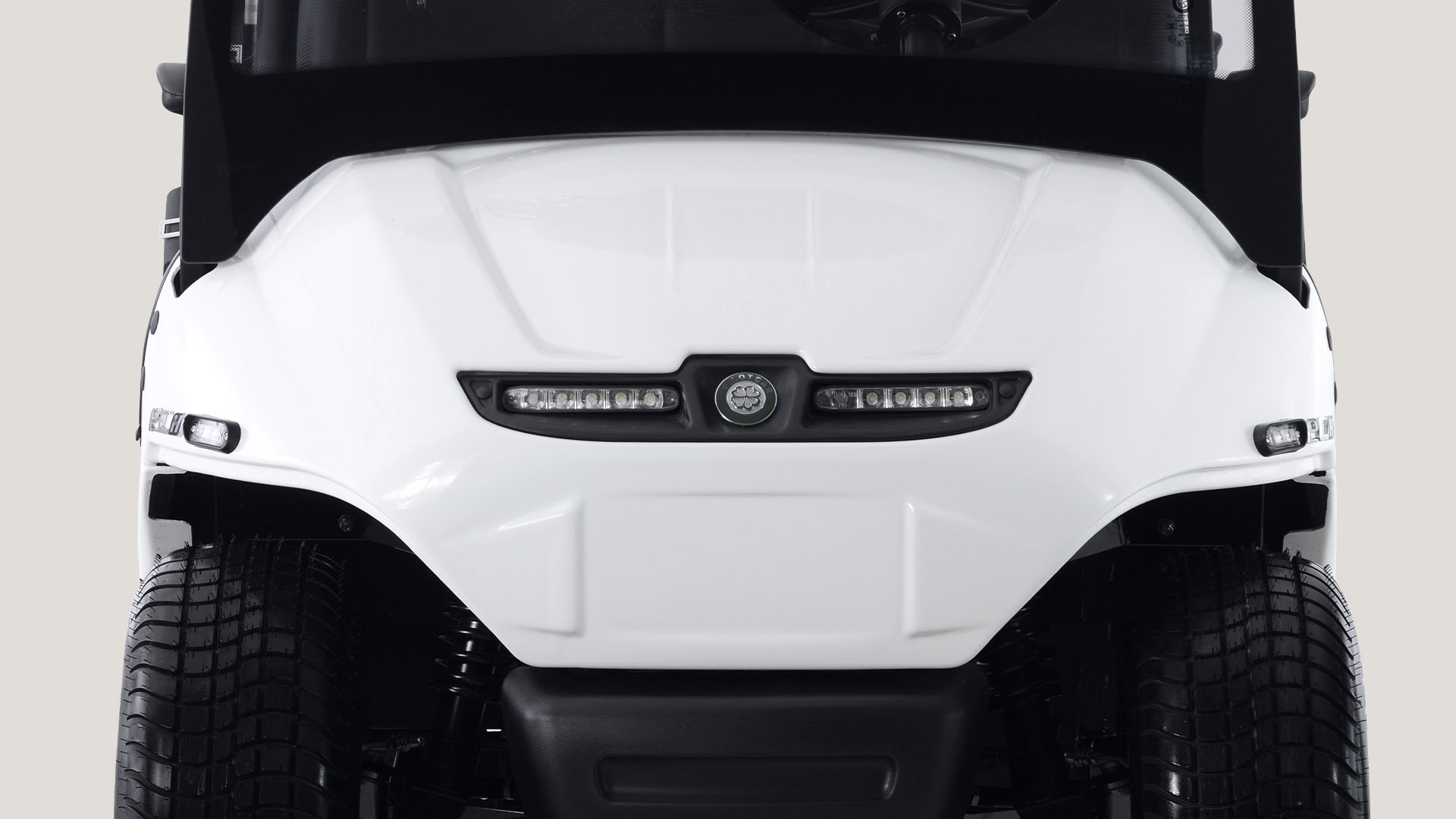

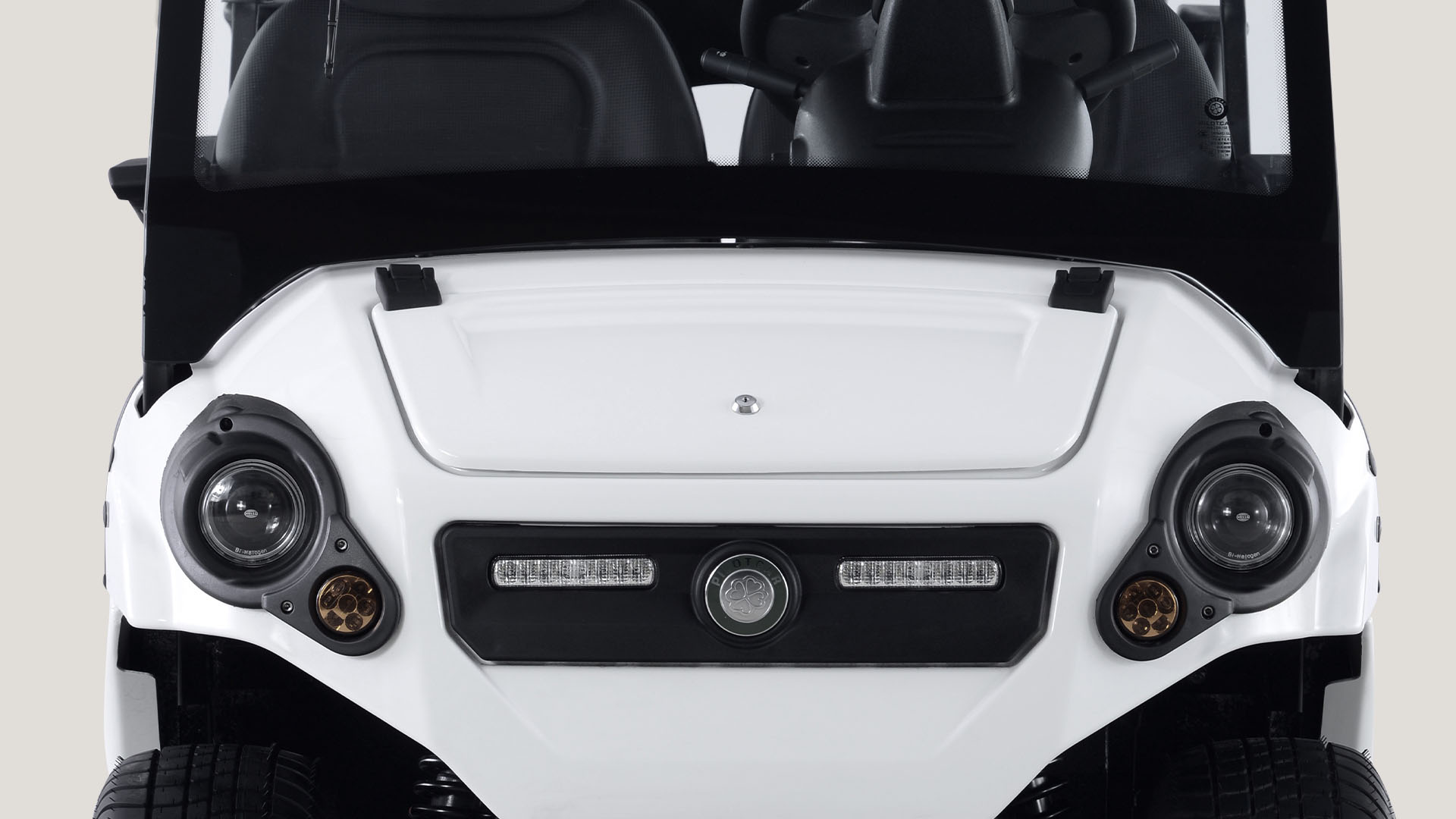

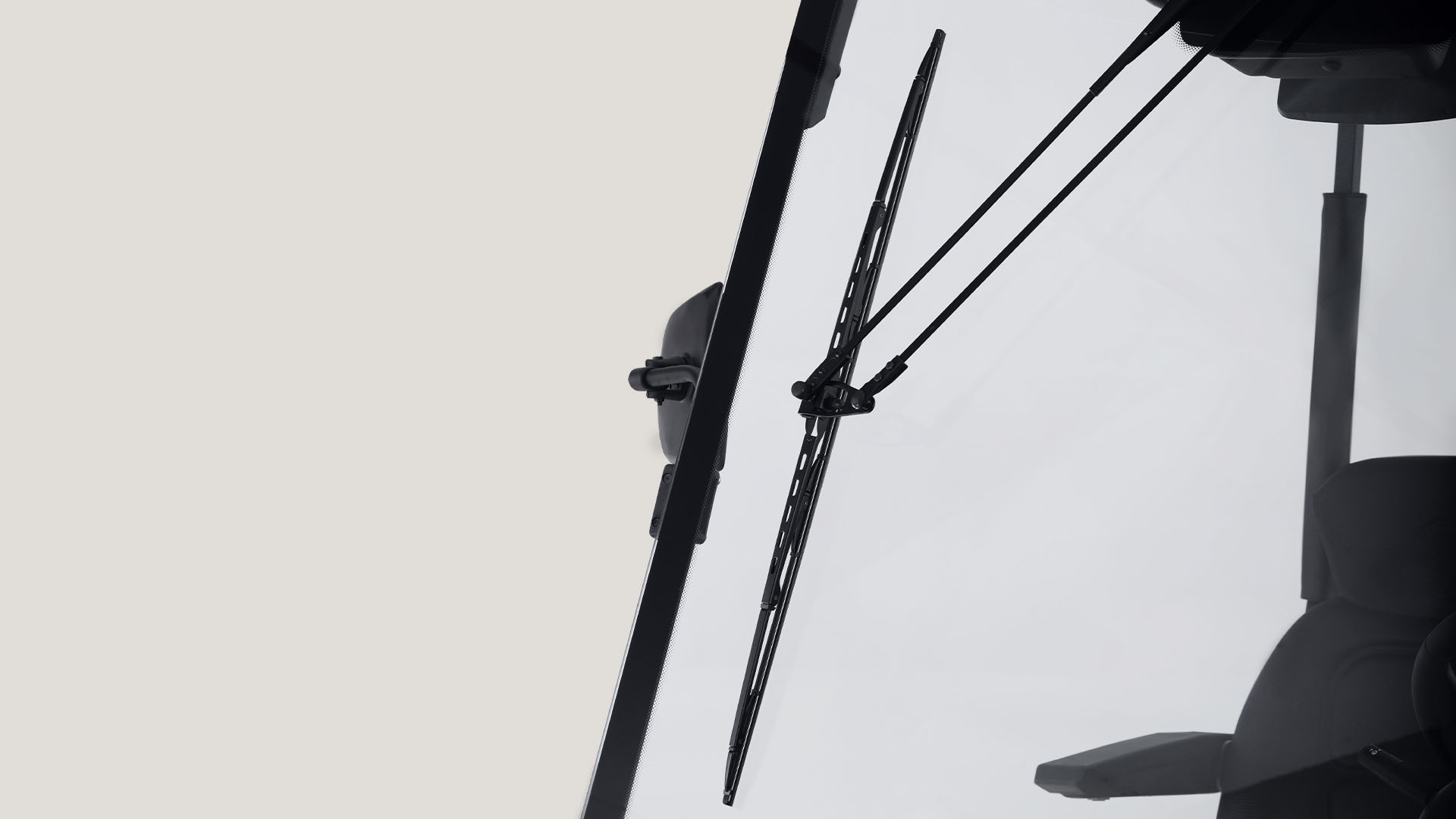

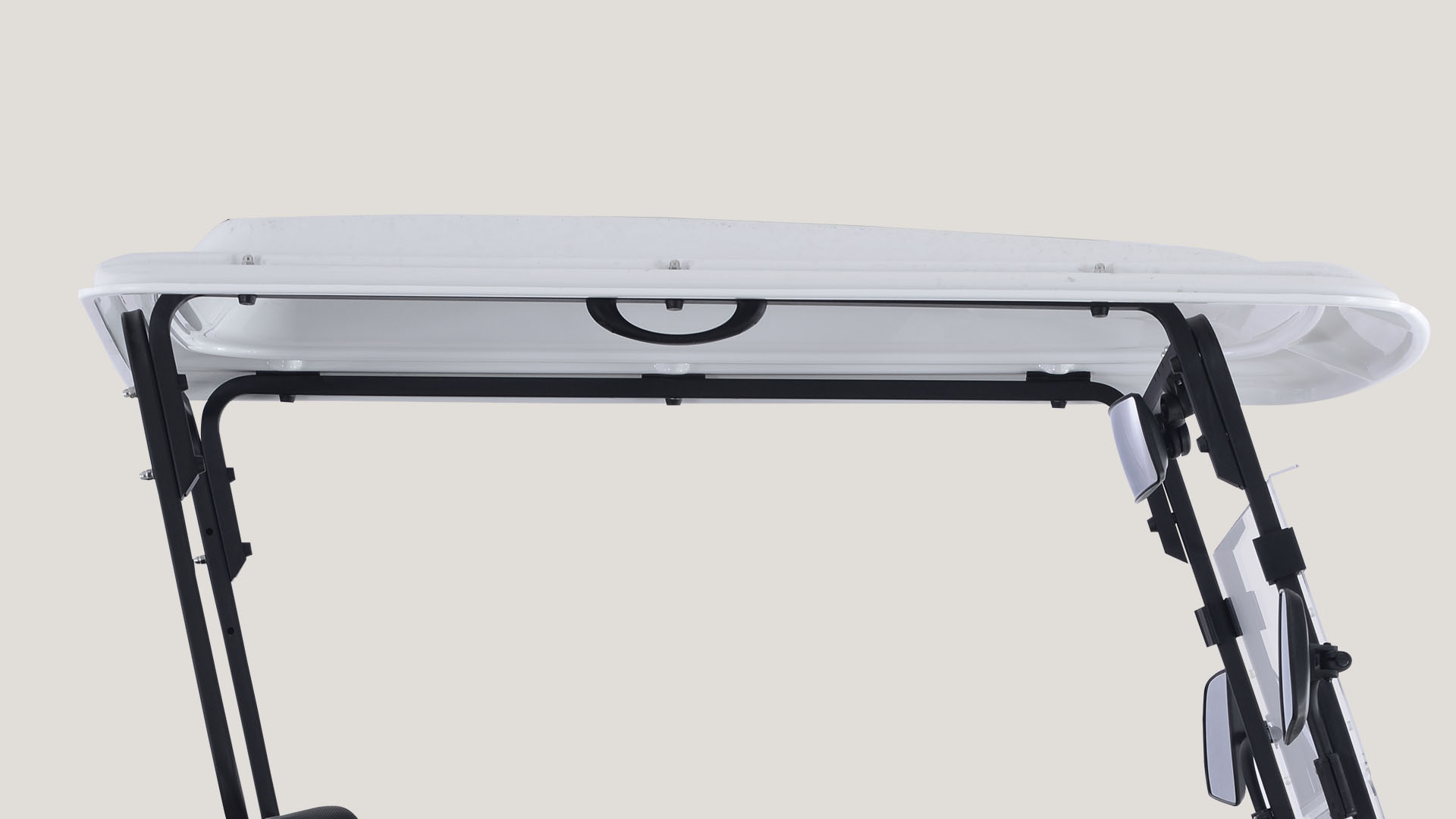

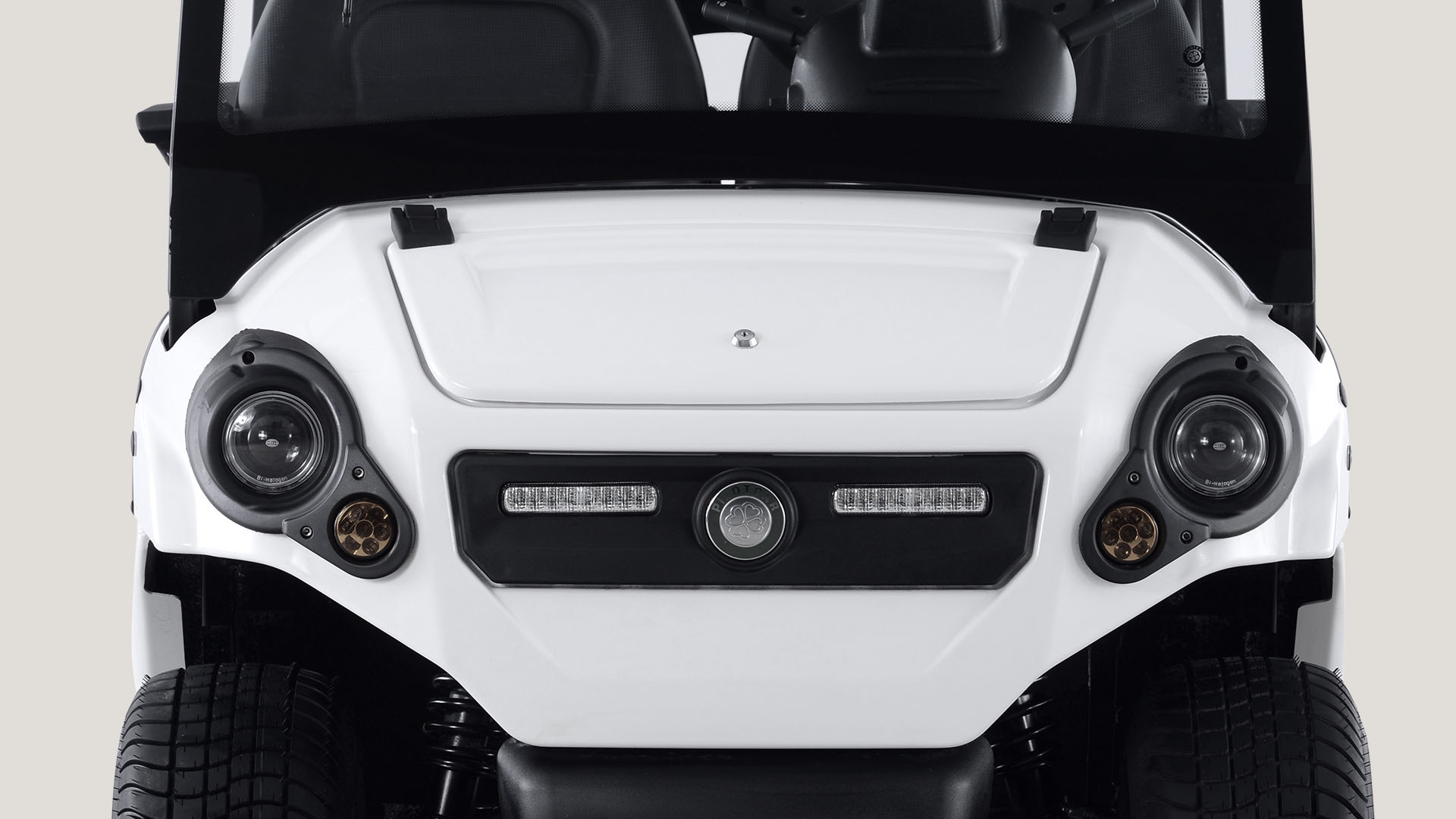

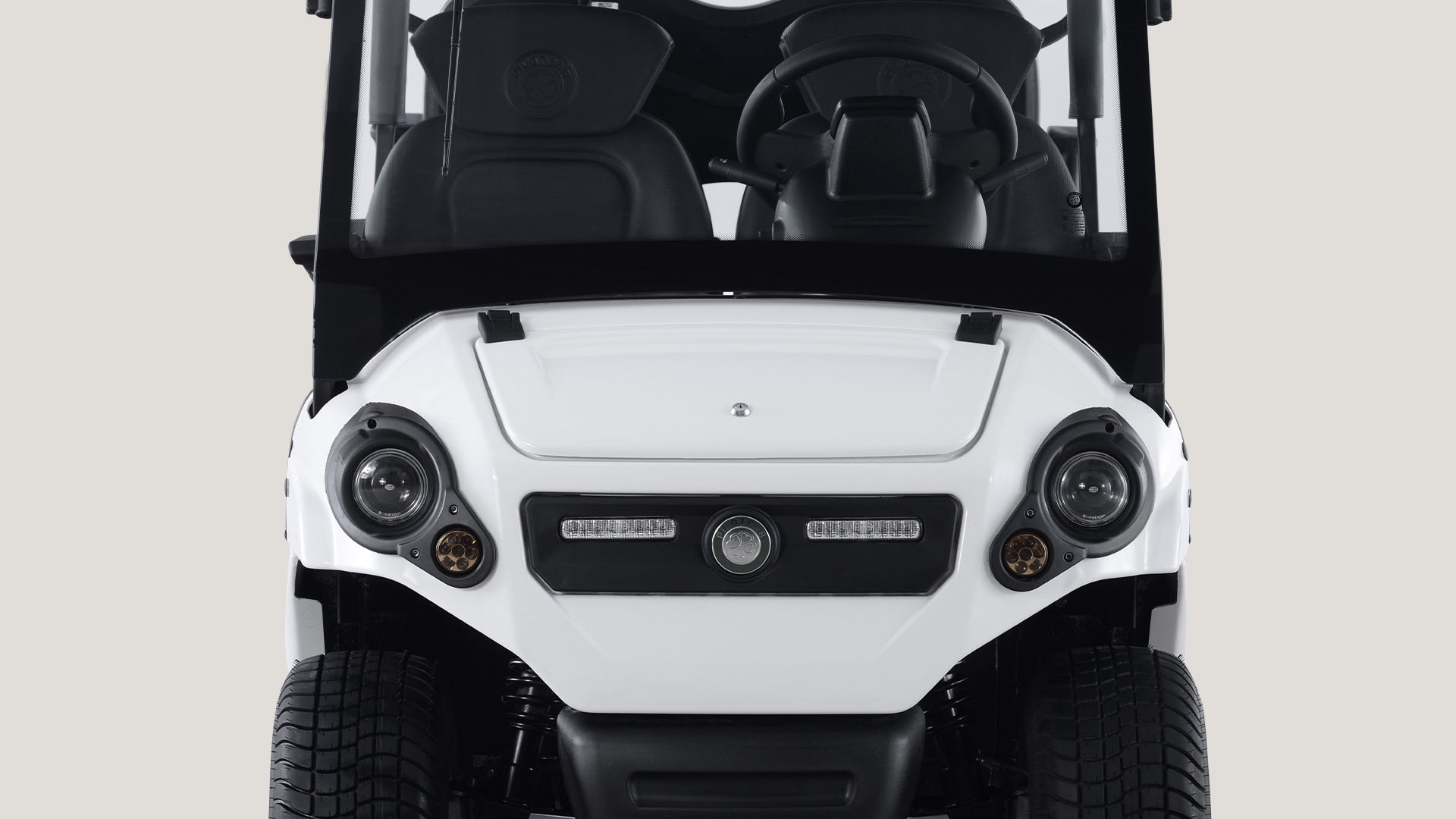

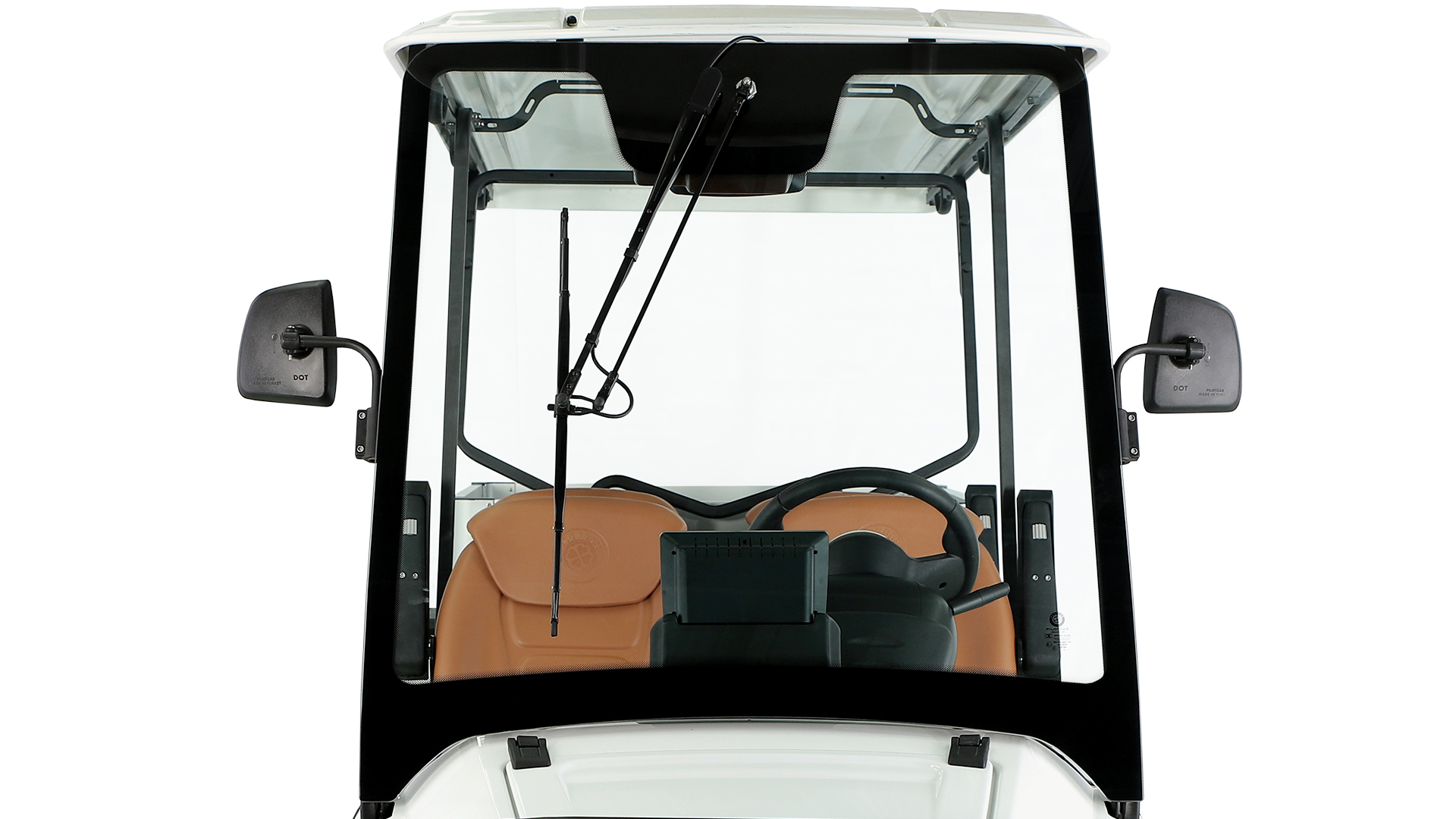

Body

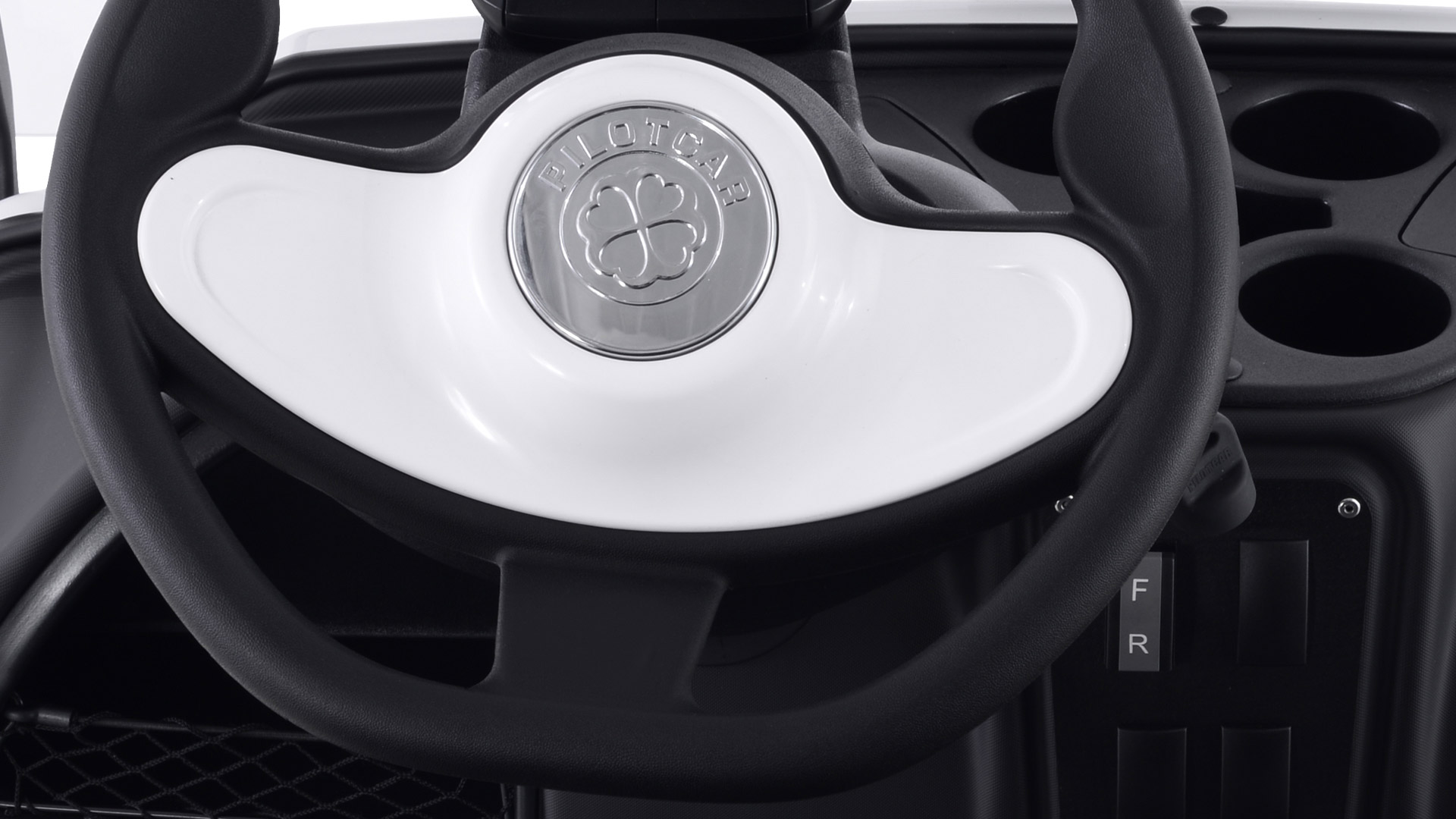

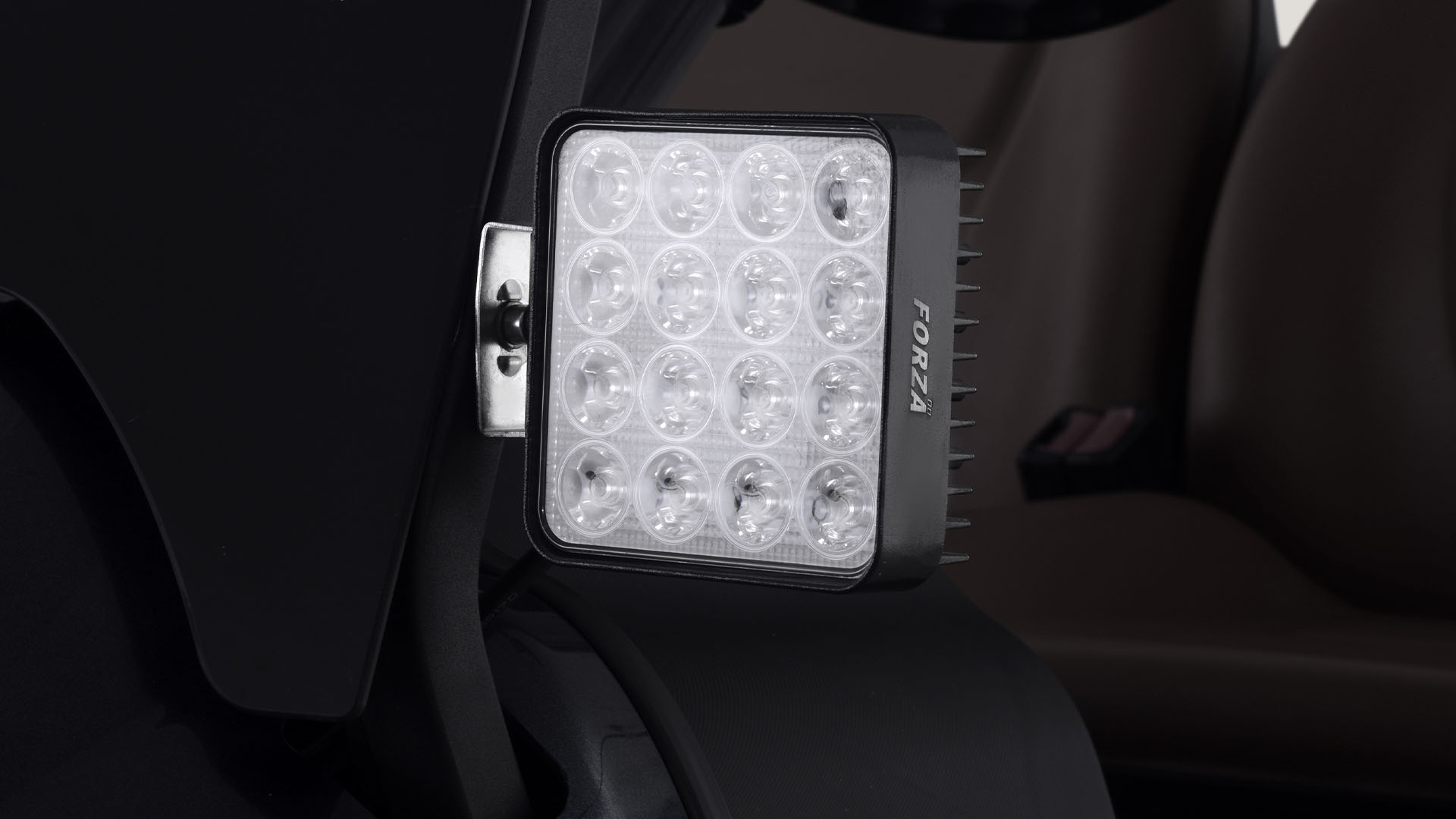

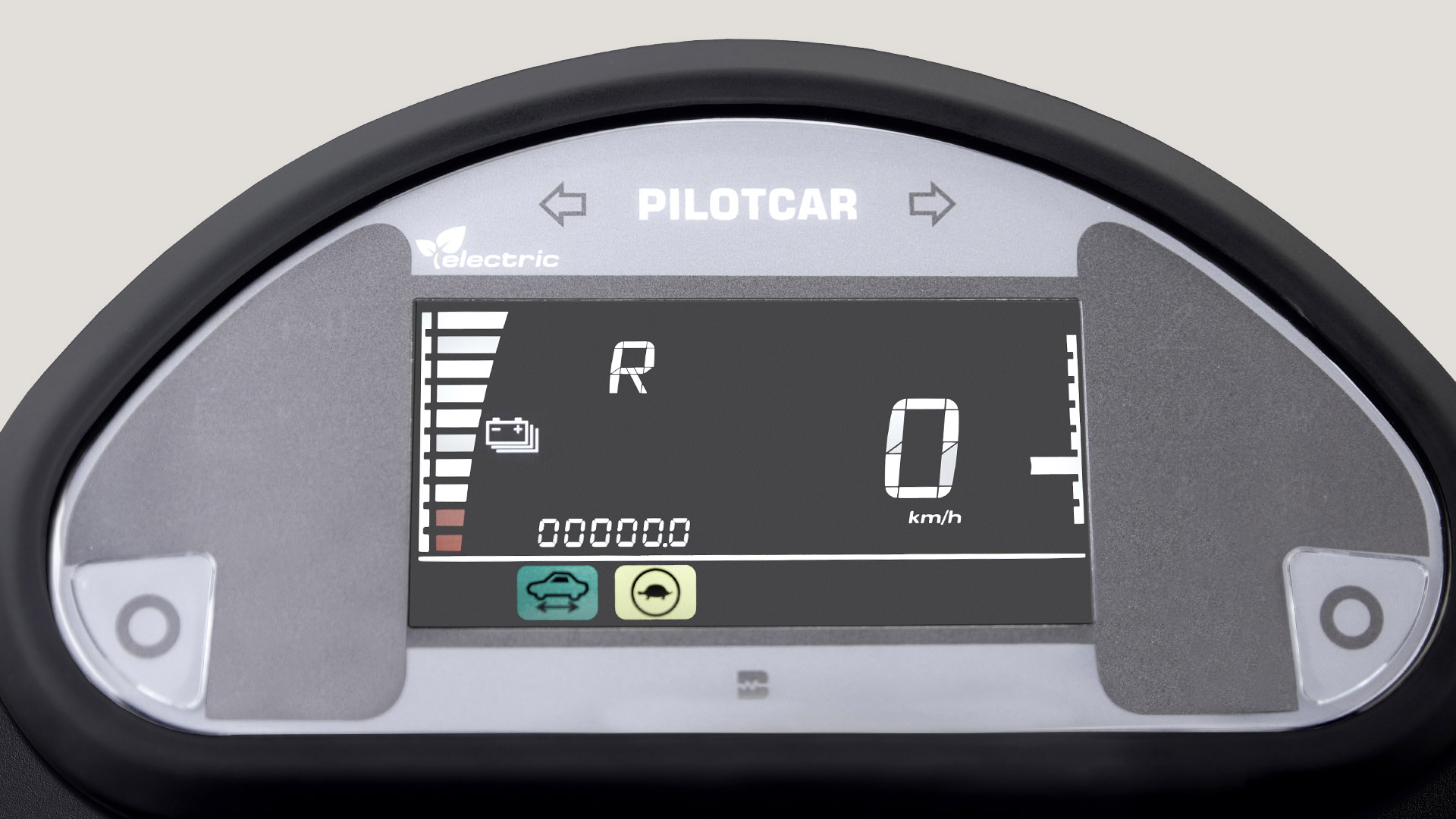

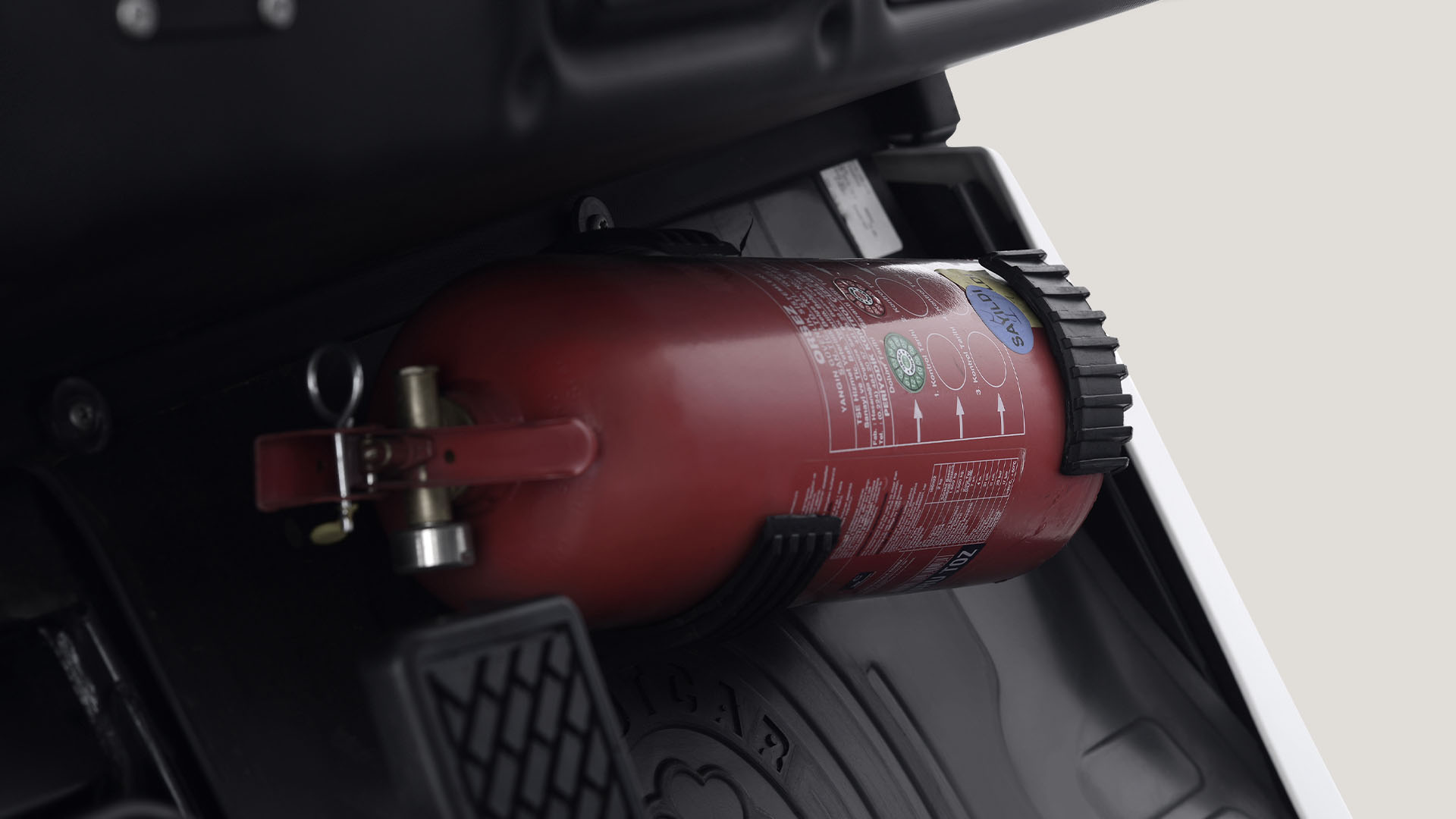

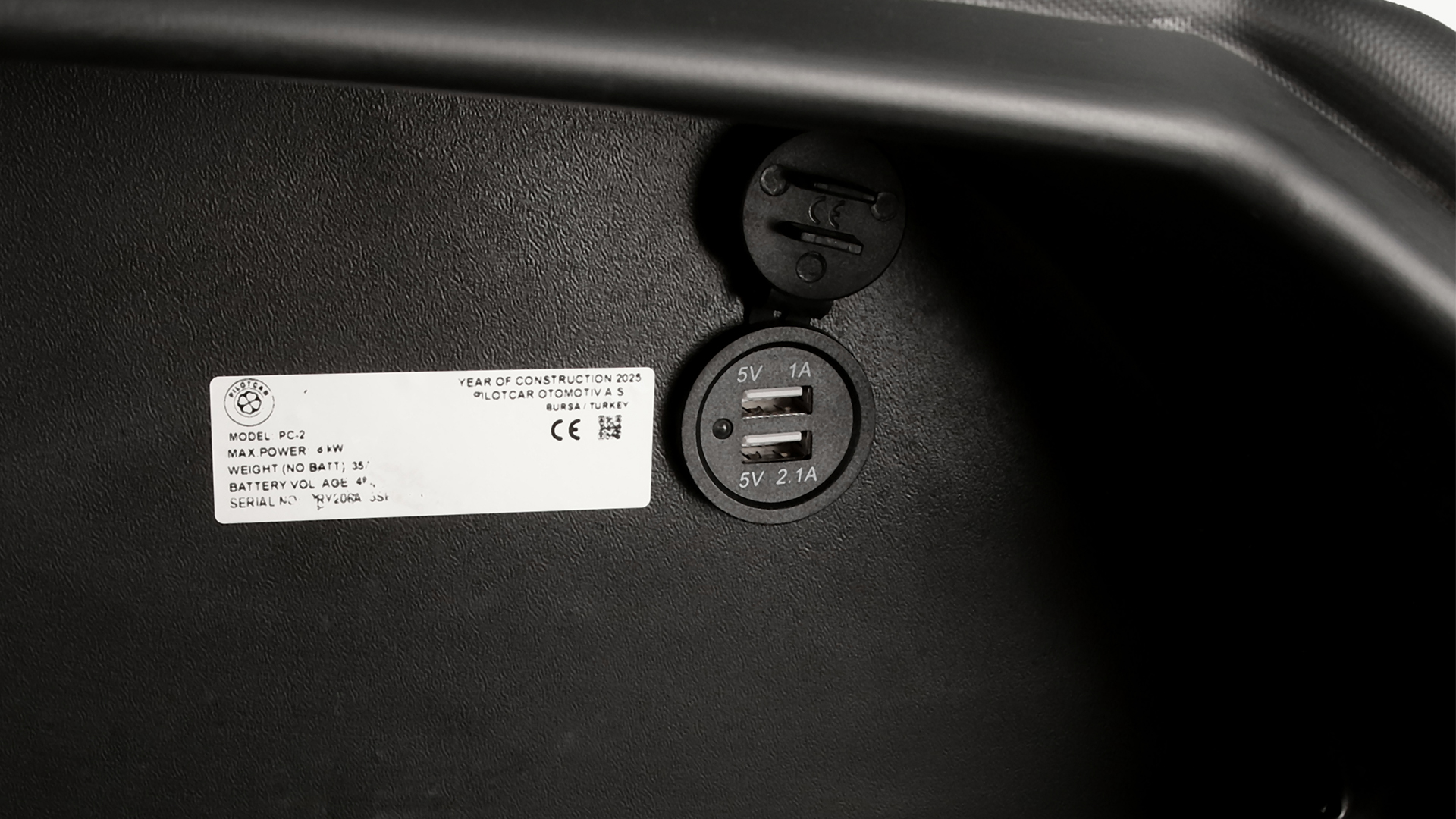

Technology & Safety

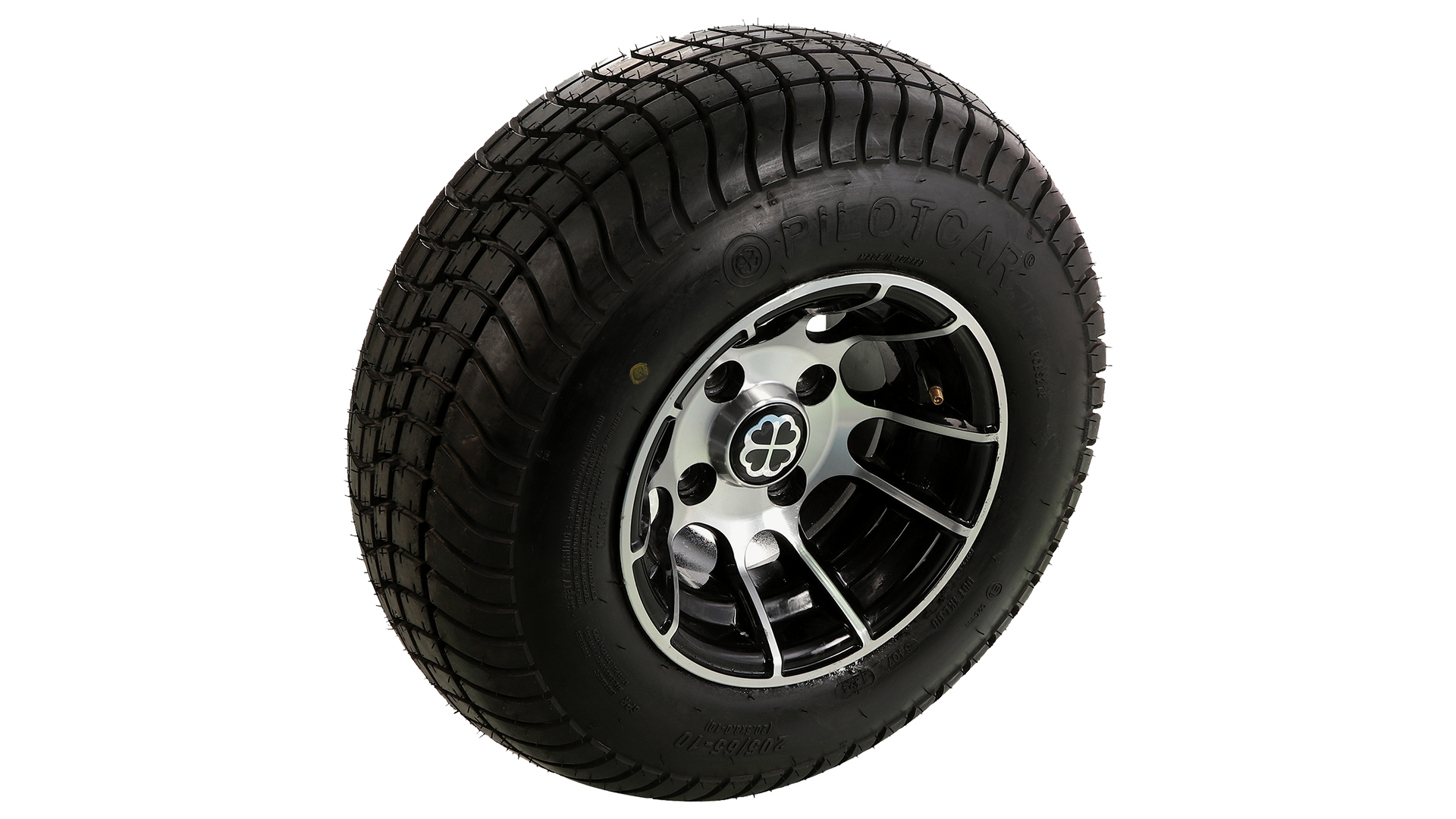

Tyres & Wheels

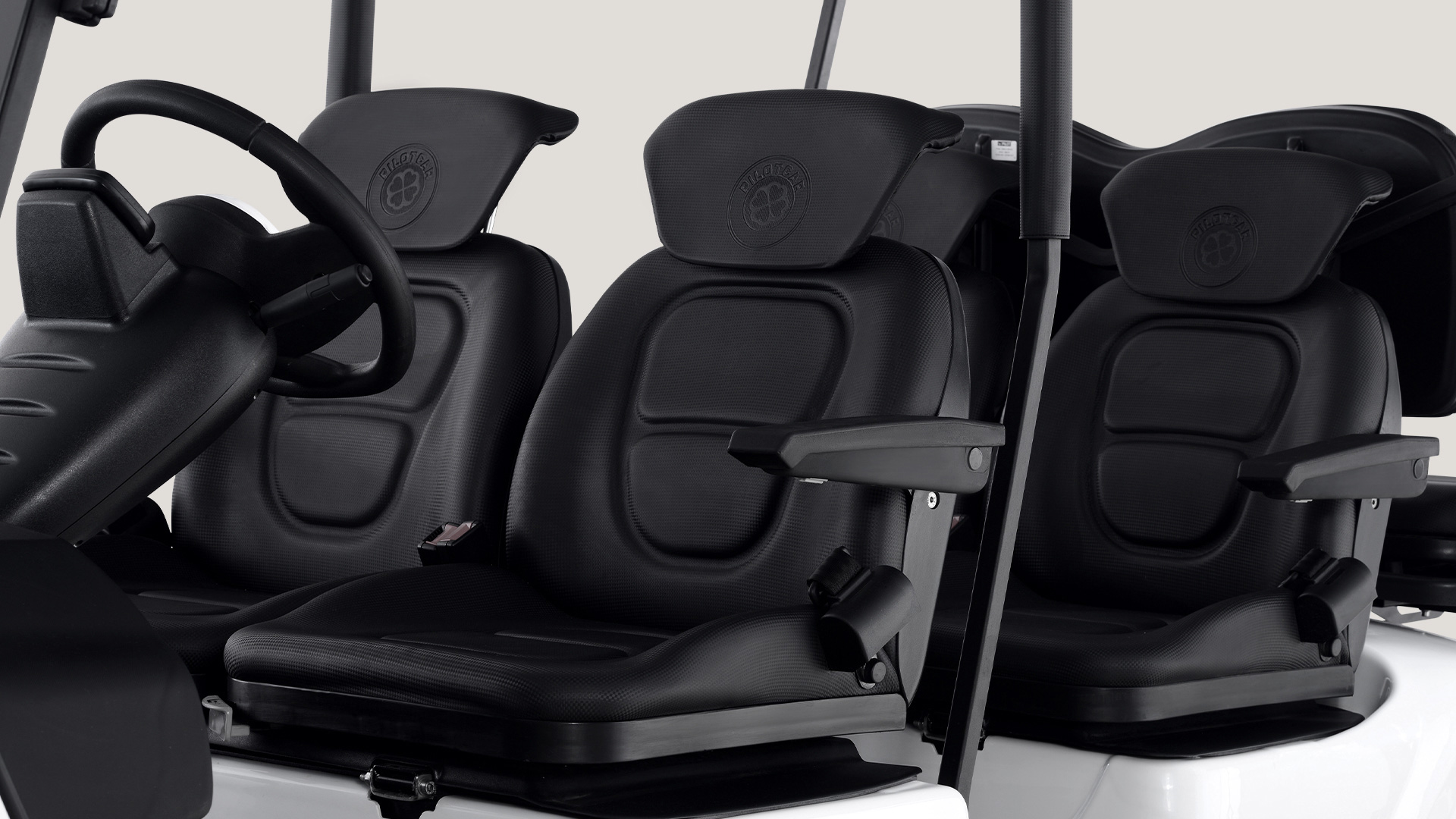

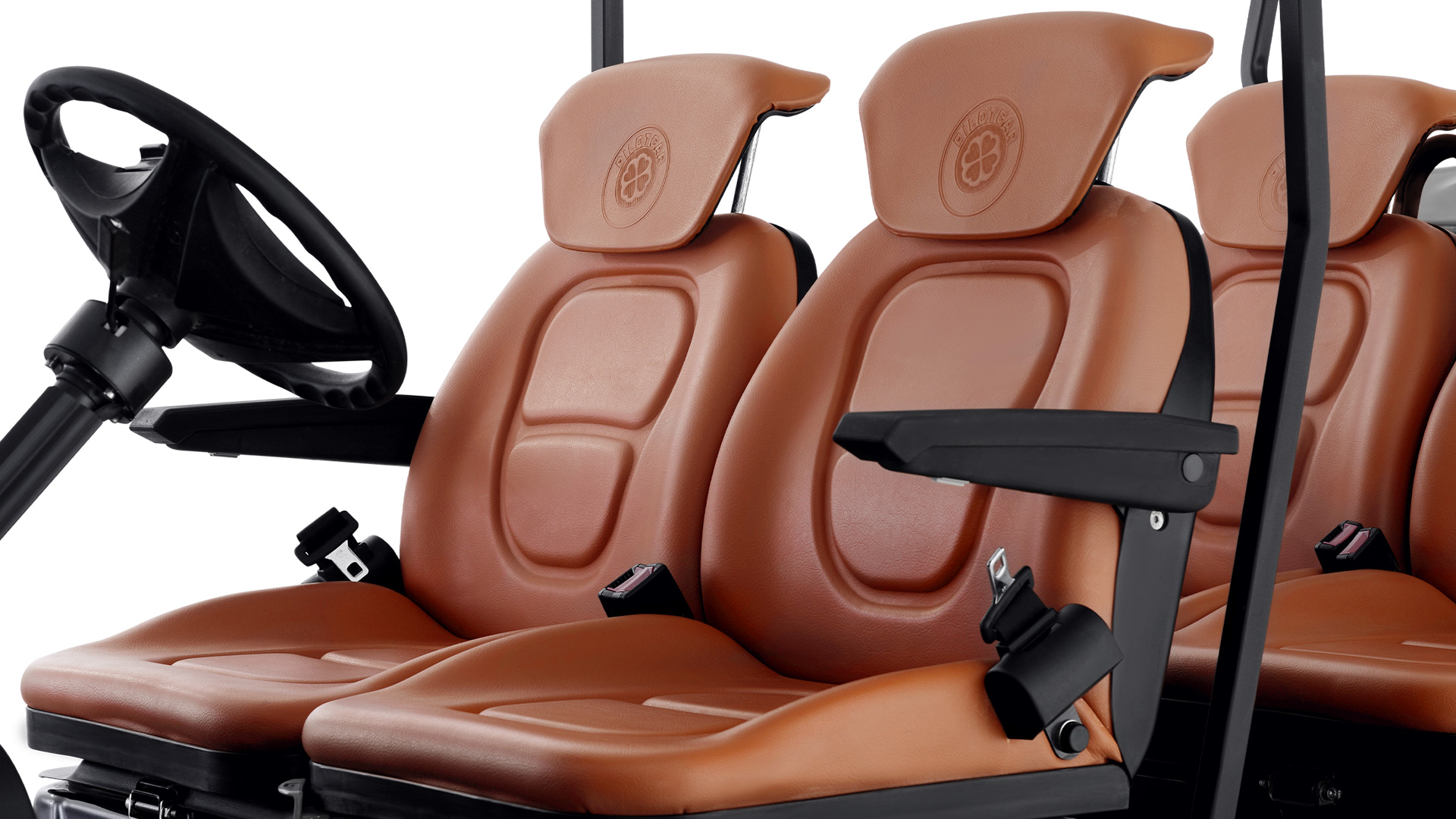

Seat

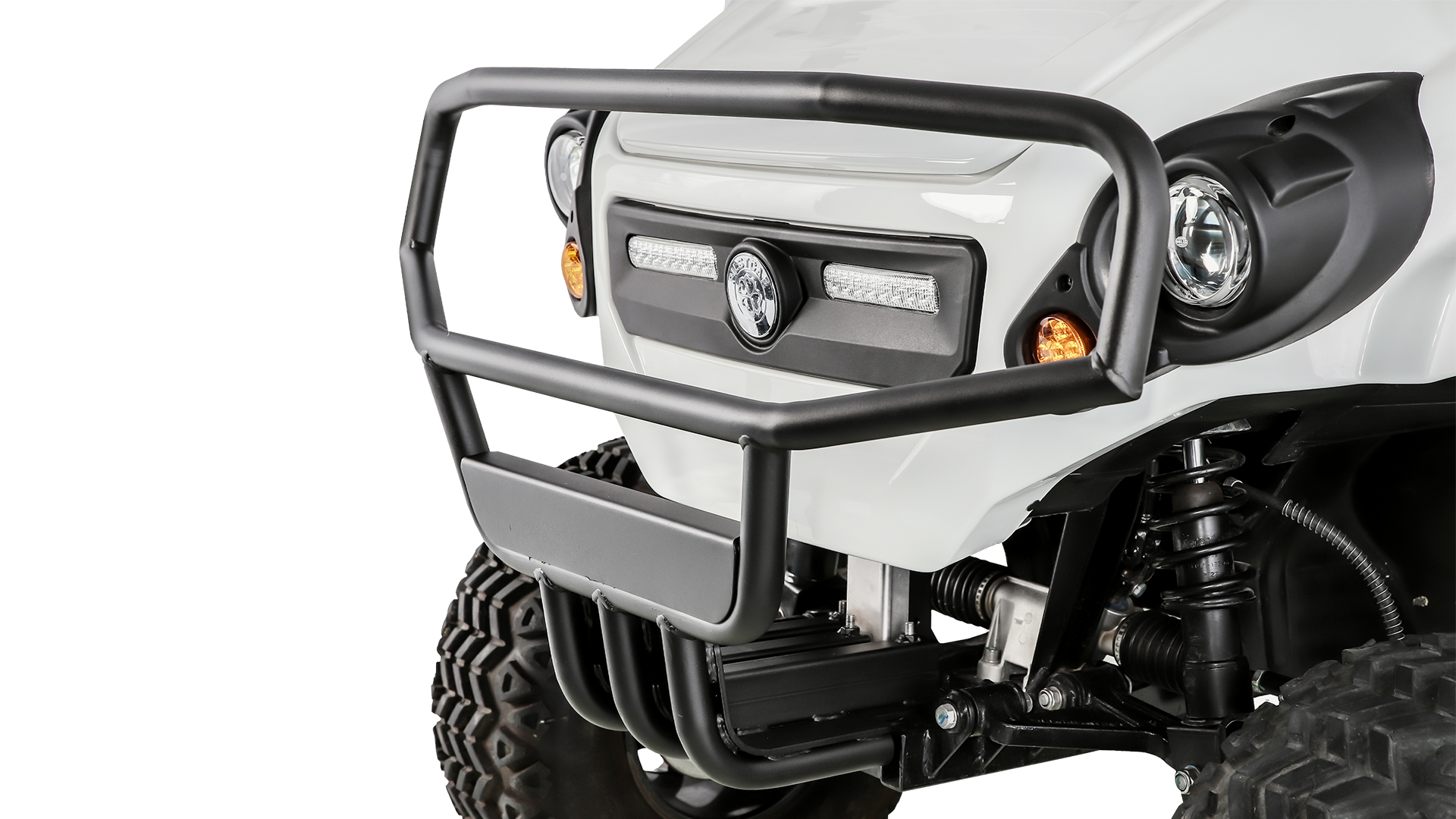

Off-Road Equipment

Body

Technology & Safety

Tyres & Wheels

Seat

Off-Road Equipment
